Vulcan-Hart VELT100 Replacement Parts Catalog

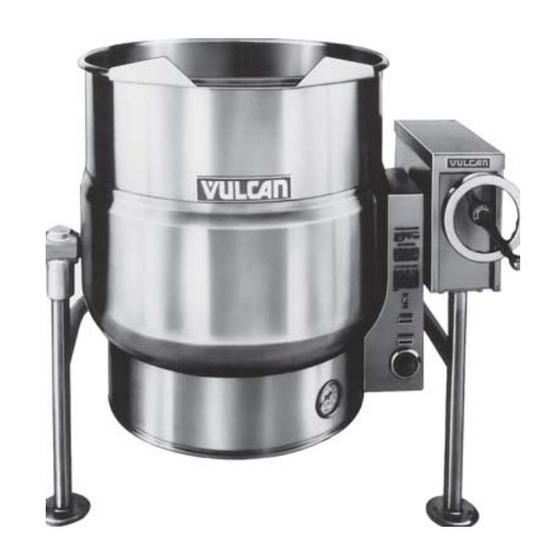

Velt electric tri-leg floor mounted tilting 2/3 jacketed kettles
Hide thumbs
Also See for VELT100:
- Specifications (2 pages) ,
- Installation, operating, service and parts manual (24 pages)
Table of Contents
Advertisement
Quick Links
VELT ELECTRIC TRI-LEG
FLOOR MOUNTED TILTING
2/3 JACKETED KETTLES
MODEL
VELT20
VELT30
VELT40
VELT60
VELT80
VELT100
For additional information on Vulcan-Hart Company or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
ML-103442
ML-103443
ML-103444
ML-103445
ML-103446
ML-052999
CATALOG OF
VELT40
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. (800) 814-2028
FORM 37121 (January 2008)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vulcan-Hart VELT100
Summary of Contents for Vulcan-Hart VELT100
- Page 1 VELT60 ML-103445 VELT80 ML-103446 VELT100 ML-052999 For additional information on Vulcan-Hart Company or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF...
- Page 2 REPLACEMENT PARTS VELT ELECTRIC TR-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES PART NO. 00-881996 Element (208 V, 12 kW) ... 1 ... 00-881997 Element (220/380 V, 12 kW) ... 1 ... 00-881998 Element (240 V, 12 kW) ... 1 ... 00-881999 Element (480 V, 12 kW) ...
- Page 3 REPLACEMENT PARTS VELT ELECTRIC TRI-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES REPLACEMENT PARTS LIST (Cont.) PART NO. 00-881970 Power Switch ... 1 ... 1 ... 1 ... 1 ... 1 00-881972 Low Water Pilot Light ... 1 ... 1 ... 1 ... 1 ... 1 00-881972 Temperature Pilot Light ...
-
Page 4: Tilting Mechanism
REPLACEMENT PARTS VELT ELECTRIC TR-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES PART NO. 00-881962 Handwheel ... 1 SC-047-42 Set Screw ... 1 00-836936 Tilting Shaft ... 1 00-836952 Tension Pin ... 1 00-855086 Worm & Segment Gear Kit ... 1 00-881963 Thrust Bearing ... - Page 5 REPLACEMENT PARTS VELT ELECTRIC TRI-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES COUNTER BALANCED HINGED COVER REPLACEMENT PARTS LIST PART NO. 00-842956 Bolt ... 1 00-850622 Washer ... 1 00-851961 Cover (20 Gallon) ... 1 00-850430 Cover (30 Gallon) ... 1 00-850217 Cover (40 Gallon) ...
- Page 6 REPLACEMENT PARTS VELT ELECTRIC TR-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES SPRING ASSIST HINGE ASSEMBLY PART NO. 00-836977 Lock Pin ... 1 00-836978 End Lock Plate ... 1 00-854974 Stationary Disc ... 1 00-844367-00034 Cores ... 2 00-844367-00035 Spring ... 1 00-850518-00002 Handle Assy.
- Page 7 REPLACEMENT PARTS VELT ELECTRIC TRI-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES REPLACEMENT PARTS LIST PART NO. 00-836939 Nut ... 1 ... 1 ... 00-836940 Nut ... 1 00-836967 Handle ... 1 ... 1 ... 00-836942 Handle ... 1 00-836943 Hex. Assembly Nut ... 1 ... 00-836944 Hex.
- Page 8 REPLACEMENT PARTS VELT ELECTRIC TR-LEG FLOOR MOUNTED TILTING 2/3 JACKETED KETTLES PART NO. 00-881961 00-881970 00-881972 00-881973 00-836968 00-844492 00-881960 00-881981 00-881979 00-881984 00-836823 00-836824 00-836825 00-836826 00-836827 00-836828 00-836829 00-836830 00-836831 00-836926 00-850489 00-853974 00-881975 00-836997 00-840444 00-881978 RECOMMENDED SPARE PARTS NAME OF PART Air Vent ...
