Vulcan-Hart VDL100 Specifications

SPECIFICATIONS:
Direct steam, stainless steel,
kettle, Vulcan-Hart Model No. ___________. Fully welded
hemispheric bottom kettle with type 304 stainless steel
jacket and lining (316 stainless steel liner, 20 & 40 gallon).
Jacket tested to 35 psi (2.4 kg/cm
stainless steel cover with drop down lift handle (60 - 100 gallon
spring assist). 2" compression tangent draw-off valve with
perforated strainer. Tubular stainless steel legs with flanged
feet. Operates with 5 psi (0.4 kg/cm
(2.4 kg/cm 2 ) direct steam. Steam control assembly includes
nickel plated steam supply control valve, nickel plated
condensate return line strainer and steam trap.
NSF listed. Meets ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31640 (6-05)
2
/ jacketed floor mounted steam
3
2
). Counterbalanced hinged
2 ) through 35 psi
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

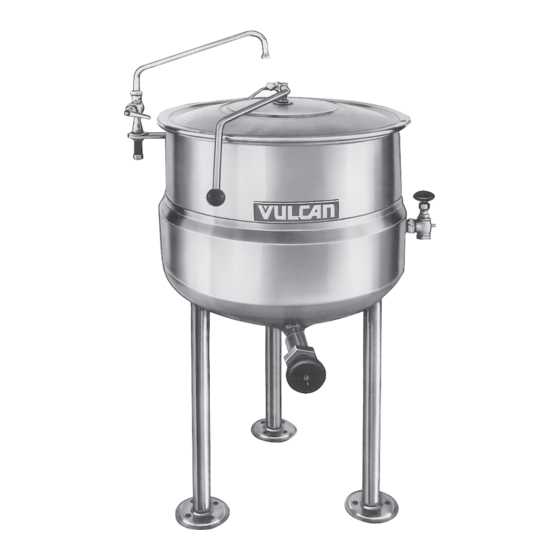

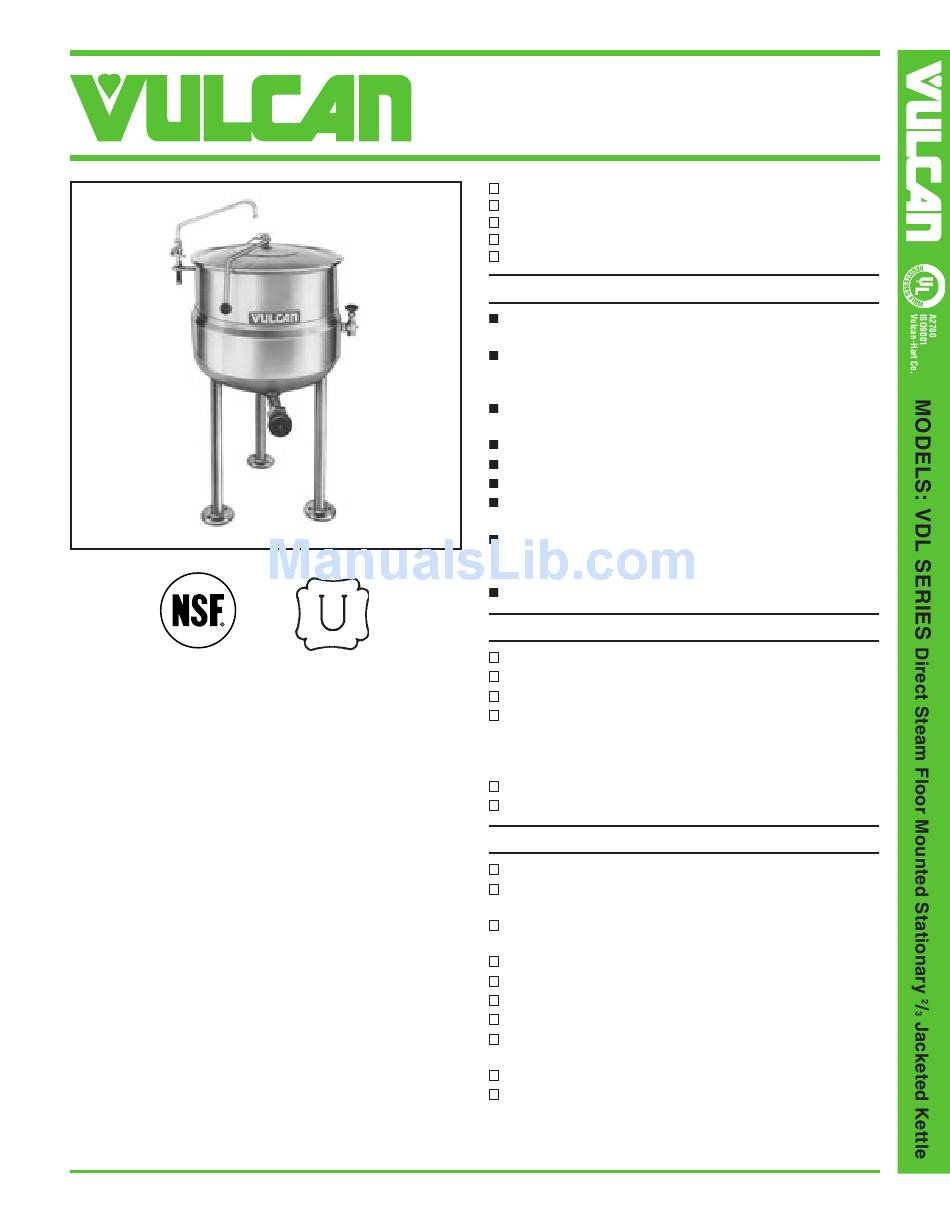

VDL SERIES
DIRECT STEAM FLOOR MOUNTED
STATIONARY 2 / JACKETED KETTLE
3
VDL20 20 gallon capacity
VDL40 40 gallon capacity
VDL60 60 gallon capacity
VDL80 80 gallon capacity
VDL100 100 gallon capacity
STANDARD FEATURES
Direct steam, stainless steel,
steam kettle.
Fully welded hemispheric bottom kettle with type 304 stain-
less steel jacket and lining. (316 stainless steel liner for 20 &
40 gallon models.)
One piece counterbalanced hinged stainless steel cover with
drop down lift handle (60 - 100 gallon spring assist).
2" compression tangent draw-off valve with perforated strainer.
Faucet bracket.
Tubular stainless steel legs with flanged feet.
Operates with 5 psi (0.4 kg/cm
direct steam, includes safety valve.
Steam control assembly includes nickel plated steam supply
control valve, nickel plated condensate return line strainer
and steam trap.
One year limited parts and labor warranty.
OPTIONS
Spring assist cover (20 - 40 gallon).
Two-piece hinged cover.
3" compression draw-off valve with perforated strainer.
Correction facility package:
a. Security type tamper resistant fasteners with tack welds.
b. Stainless steel step cover over draw-off valve with chain.
c. Type 316 liner (60 - 100 gallon).
50 psi (3.4 kg/cm 2 ) operation.
Second year extended limited parts and labor warranty.
ACCESSORIES
Contour measuring strip.
Perforated stainless steel basket assembly (single - 20 gal.)
(triple - 20 through 100 gallon).
Clean-up kit, includes draw-off brush, clean-up brush and
paddle scraper with 40" handle.
Stainless steel 48" whip.
Solid disk.
(12") (18" double jointed) single pantry faucet.
(12") (18" double jointed) double pantry faucet.
Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
Double pantry washdown hose with backflow preventer.
Double pantry pot filler and backflow preventer.
C.S.I. Section 11420
2 / jacketed floor mounted
3
2 ) through 35 psi (2.4 kg/cm 2 )
