Vulcan-Hart VGLT20 Specifications

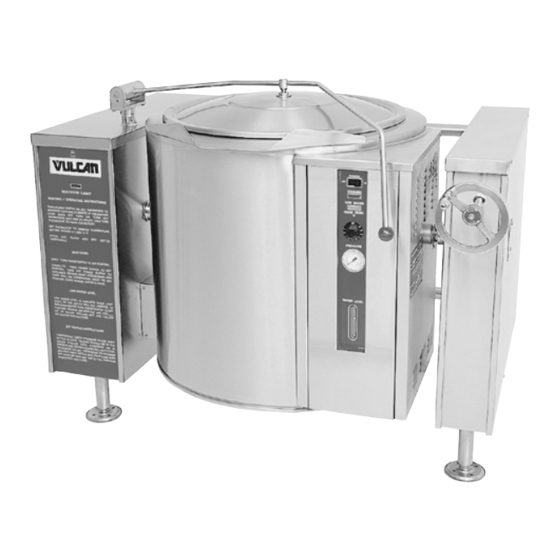

Shown with optional spring assist cover
SPECIFICATIONS:
Self generating gas fired power burner, all welded type 304,
2 / jacketed tilting steam kettle, Vulcan-Hart Model
3
No. (VGLT20) (VGLT30) (VGLT40) (VGLT60). Fully welded
hemispherical bottom kettle with type 304 stainless steel
jacket and lining. (Type 316 stainless steel liner 20, 30 & 40
gallons only.) Jacket tested to 50 psi (3.4 kg/cm
charged with chemically pure water, rust inhibitor, and
antifreeze for protection against freezing to -30°F. Kettle
exterior is fully insulated. Kettles mounted on trunnions
connected to the control and gear consoles. The worm gear
tilting mechanism is self locking and allows the kettle to tilt a full
90°. Trunnion cover with provision for faucet. Recessed control
panel located on front of kettle. Controls include direct immersion
thermostat, water sight glass, cooking light, pressure gauge
and electronic ignition with ignitions indicator light. Safety
features include low water cut-off, pressure relief valve,
pressure switch and gas shut-off valve. Requires a 120 volt,
60 Hz, 1 phase power supply, 3.0 amp. 6' cord and plug
supplied. 3 / " rear gas connection with gas pressure regulator.
4
CSA design certified. NSF listed. Meets ASME code.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32051 (10-03)
2
). Factory
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
VGLT SERIES
2
GAS TILTING / JACKETED KETTLE
3
VGLT20 80,000 BTU/hr., 20 gallon capacity.
VGLT30 100,000 BTU/hr., 30 gallon capacity.
VGLT40 100,000 BTU/hr., 40 gallon capacity.
VGLT60 120,000 BTU/hr., 60 gallon capacity.
STANDARD FEATURES
Self generating gas fired power burner, all welded type
2
304 stainless steel, /
3
Fully welded hemispheric bottom kettle with type 304 stainless
steel jacket and liner. (Type 316 stainless steel liner 20, 30 &
40 gallons only). Jacket tested to 50 psi (3.4 kg/cm
Factory charged with chemically pure water, rust inhibitor, and
anti-freeze for protection against freezing to -30°F.
Kettle exterior is fully insulated.
Kettles mounted on trunnions connected to the control and
gear consoles. The worm gear tilting mechanism is self locking
and allows the kettle to tilt a full 90°. Trunnion cover with
provision for faucet.
Recessed control panel located on front of kettle. Controls
include direct immersion thermostat, water sight glass, cooking
light, pressure gauge and electronic ignition with ignitions
indicator light.
Safety features include low water cut-off, pressure relief valve,
pressure switch and gas shut-off valve.
Requires a 120 volt, 60 Hz, 1 phase power supply, 3.0 amp. 6'
cord and plug supplied.
3 / " rear gas connection with gas pressure regulator.
4
One year limited parts and labor warranty.
OPTIONS
Spring assist cover.
Spring assist cover with condensate ring.
Two piece hinged cover.
Correction facility package.
a. Controls protected by lockable cover (lock by others).
b. Security type tamper resistant fasteners with tack welds.
c. Perforated flue cover.
d. Stainless steel cover over draw-off with chain.
Tilting kettle strainer.
2" draw-off valve with perforated strainer.
3" draw-off valve with perforated strainer.
Type 316 stainless steel liner, 60 gallons.
Second year extended limited parts and labor warranty.
ACCESSORIES
18" double jointed single pantry faucet.
18" double jointed double pantry faucet.
Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
Double pantry washdown hose with backflow preventer.
Double pantry pot filler and backflow preventer.
Contour measuring strip.
Triple perforated stainless steel basket assembly.
Draw-off valve strainer, solid.
Clean-up kit; includes draw-off brush, clean-up brush w/36"
handle and paddle scraper w/40" handle with nylon blade.
Stainless steel 48" wire whip.
C.S.I. Section 11420
jacketed tilting steam kettle.
