Vulcan-Hart VSX42G5 Specifications

SPECIFICATIONS:
Gas heated convection steamer, Vulcan-Hart Model No.
(VSX42GT) (VSX42G5). Two stainless steel cooking compart-
ments with coved interior corners. Heavy duty stainless steel
"slammable" doors can be opened and closed at anytime during
the cooking cycle. Steam shuts off when door(s) are opened.
Tilting kettle mounted to left of cooking compartments and inter-
connected to steam generator. Deck mount dual temperature
faucet with 12" swing spout. Convection steamer mounted on
28" high base cabinet with stainless steel frame, full height doors
and side panels with aluminized rear panels with 6" adjustable
legs with flanged feet for anchoring. 200,000 BTU/hr. steam
boiler with electronic ignition. Includes a CSD-1 compliant high
pressure limit switch (15 psi), low water cut-off, automatic water
fill, automatic generator blow down, 15 psi pressure relief valve
and 15 psi kettle connection. Compartment controls include 60
minute dial timer with buzzer, green "ready" and red "cooking"
indicator lights. Stainless steel rear flue.
Exterior dimensions:
VSX42GT: 42"w x 35.4"d x 60
VSX42G5: 42"w x 35.4"d x 73"h.
CSA design certified. Classified by U L to NSF Std. #4. Meets
ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32026 (4-06)
3
/ "h.
8
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________

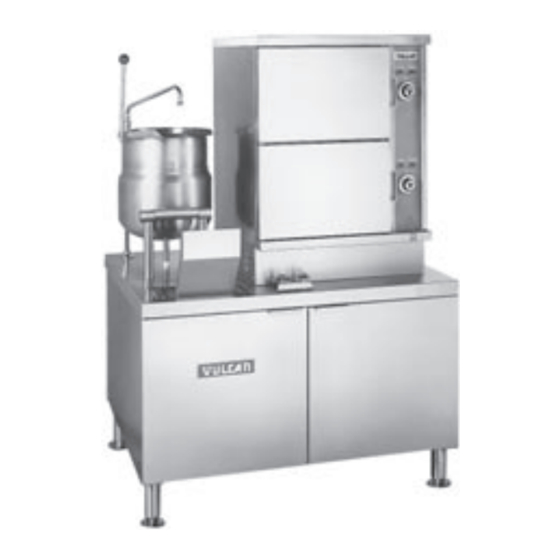

VSX42G SERIES
GAS BOILER CONVECTION STEAMER
ON CABINET BASE WITH 24 QT. TILTING KETTLE
VSX42GT 6 pan capacity
VSX42G5 10 pan capacity
STANDARD FEATURES
Two stainless steel cooking compartments with coved interior
corners. Each compartment accepts:
- 1" deep pans (6 - VSX42GT) (10 - VSX42G5)
- 2 1 / " deep pans (3 - VSX42GT) (5 - VSX42G5)
2
- 4" deep pans (2 - VSX42GT) (3 - VSX42G5)
1 1 / " drain in each compartment.
4
Heavy duty stainless steel "slammable" doors can be opened
and closed at anytime during the cooking cycle. Steam shuts
off when door(s) are opened.
Tilting kettle mounted to left of cooking compartments and
interconnected to steam generator.
Deck mount dual temperature faucet with 12" swing spout.
200,000 BTU/hr. steam boiler with electronic ignition. Includes
a CSD-1 compliant high pressure limit switch (15 psi), low
water cut-off, automatic water fill, automatic generator blow
down, 15 psi pressure relief valve and 15 psi kettle connection.
Compartment controls include 60 minute dial timer with
buzzer, green "ready" and red "cooking" indicator lights.
Convection steamer mounted on 28" high base cabinet with
stainless steel frame, full height doors and side panels with
aluminized rear panels with 6" adjustable legs with flanged
feet for anchoring.
Stainless steel rear flue.
One year limited parts and labor warranty.
OPTIONS
Tilting kettle mounted to the right of the cooking compartment.
Correction facility package:
a. Security type tamper resistant fasteners with tack welds.
b. Control cover with hasp (lock by others).
c. Cabinet door with hasp (lock by others).
d. Perforated flue cover.
Step down transformer for control circuit if higher than 120
volts.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Interconnecting steam supply plumbing kit.
Removable sliding shelf. Qty. ____.
Water treatment system.
C.S.I. Section 11420
