Vulcan-Hart VGL20 Specifications

SPECIFICATIONS:
Self generating gas fired power burner, all welded type
304 stainless steel, 2 / jacketed steam kettle, Vulcan-Hart
3
Model No. (VGL20) (VGL40) (VGL60). Hinged cover
(60 gallon spring assist). Fully welded hemispheric bottom
kettle with type 304 stainless steel jacket and liner. (Type 316
stainless steel liner 20 & 40 gallons only). Jacket tested to
50 psi (3.4 kg/cm 2 ). Factory charged with chemically pure
water, rust inhibitor, and antifreeze for protection against
freezing to -30°F. Kettle exterior is fully insulated. 2" draw-off
valve with perforated strainer. Recessed control panel located
on front of kettle. Controls include direct immersion thermo-
stat, water sight glass, cooking light and pressure gauge.
Safety features include low water cut-off, pressure relief valve,
pressure switch and gas shut-off valve. Kettles mounted on
stainless steel legs. Requires a 120 volt, 60 Hz, 1 phase power
supply, 3.0 amp. 6' cord and plug supplied.
connection with gas pressure regulator.
CSA design certified. NSF listed. Meets ASME code.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32050 (10-03)
3
/ " rear gas
4
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
VGL SERIES
2

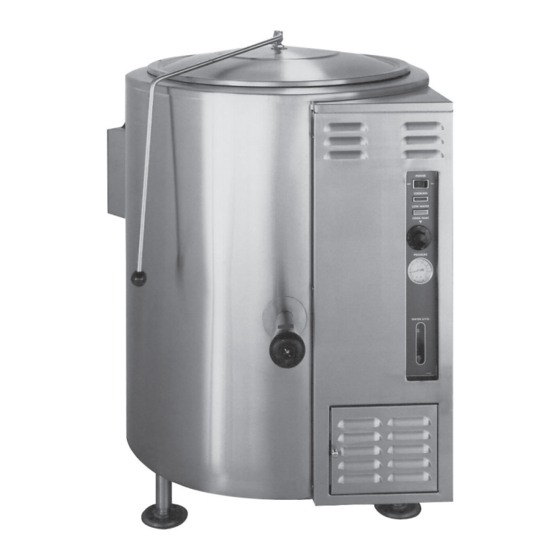

GAS STATIONARY / JACKETED KETTLE
3
VGL20 100,000 BTU/hr., 20 gallon capacity.
VGL40 100,000 BTU/hr., 40 gallon capacity.
VGL60 130,000 BTU/hr., 60 gallon capacity.
STANDARD FEATURES
Self generating gas fired power burner, all welded type 304
2
stainless steel, / jacketed steam kettle.
3
Hinged cover (60 gallon spring assist).
Fully welded hemispheric bottom kettle with type 304 stain-
less steel jacket and liner. (Type 316 stainless steel liner 20
& 40 gallons only). Jacket tested to 50 psi (3.4 kg/cm
Factory charged with chemically pure water, rust inhibitor,
and anti-freeze for protection against freezing to -30°F.
Kettle exterior is fully insulated.
2" draw-off valve with perforated strainer.
Recessed control panel located on front of kettle. Controls
include direct immersion thermostat, water sight glass,
cooking light, pressure gauge and electronic ignition with
ignitions indicator light.
Safety features include low water cut-off, pressure relief
valve, pressure switch and gas shut-off valve.
Kettle mounted on stainless steel legs.
Requires a 120 volt, 60 Hz, 1 phase power supply, 3.0 amp.
6' cord and plug supplied.
3 / " rear gas connection with gas pressure regulator.
4
One year limited parts and labor warranty.
OPTIONS
Spring assist cover (20 & 40 gallons).
Spring assist cover with condensate ring.
Two piece hinged cover.
Correction facility package.
a. Controls protected by lockable cover (lock by others).
b. Security type tamper resistant fasteners with tack welds.
c. Perforated flue cover.
d. Stainless steel cover over draw-off with chain.
3" draw-off valve with perforated strainer.
Type 316 stainless steel liner, 60 gallons.
Second year extended limited parts and labor warranty.
ACCESSORIES
Contour measuring strip.
(12") (18" double jointed) single pantry faucet.
(12") (18" double jointed) double pantry faucet.
Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
Double pantry washdown hose with backflow preventer.
Double pantry pot filler and backflow preventer.
Triple perforated stainless steel basket assembly.
Draw-off valve strainer, solid.
Clean-up kit; includes draw-off brush, clean-up brush w/36"
handle and paddle scraper w/40" handle with nylon blade.
Stainless steel 48" wire whip.
C.S.I. Section 11420
2 ).
