Vulcan-Hart VEC10 Specifications

SPECIFICATIONS:
2
(6) (10) gallon capacity, /
3
counter tilting kettle, Vulcan-Hart Model No. (VEC6) (VEC10).
Hemispheric bottom kettle liner formed of type 316 stainless
steel. Balance of construction is type 304 fully welded stainless
steel designed to operate at a maximum of 50 PSI (3.4 kg/cm
Jacket contains water, rust inhibitor and antifreeze mixed to
protect to 30° below zero. Removable electric elements are field
serviceable. Stainless steel tilt handle with insulated pull knob
located on the right. Stainless steel water tight control housing
located on the right. Controls include a power switch, power "on"
light, solid state temperature control, vacuum/pressure gauge,
pressure relief valve, low water light and low water shut-off.
Mounting base includes lugs for bolting to counter top or floor
stand. Requires 208 or 240 volt, 60 Hz, 1 or 3 phase power
supply.
Exterior dimensions:
VEC6: 21 3 / "w x 15 1 / "d x 30
4 2
VEC10: 25 1 / "w x 19 1 / "d x 33"h.
2 2
U L listed. NSF listed. Meets ASME code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-31672 (10-03)
jacketed self-contained electric
1 / "h.
2
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
VEC SERIES

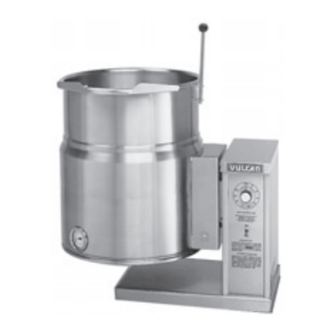

ELECTRIC COUNTER TILTING KETTLE
VEC6 6 gallon capacity
VEC10 10 gallon capacity
STANDARD FEATURES
2 / jacketed self-contained electric counter tilting steam kettle.
3
Hemispheric bottom kettle liner formed of type 316 stainless
steel.
Balance of construction is type 304 fully welded stainless steel
designed to operate at a maximum 50 PSI (3.4 kg/cm
Jacket contains water, rust inhibitor and antifreeze mixed to
protect to 30° below zero.
Removable electric elements are field serviceable.
Stainless steel tilt handle with insulated pull knob located on
the right.
Stainless steel water tight control housing located on the right.
Controls include a power switch, power "on" light, solid state
temperature control, vacuum/pressure gauge, pressure relief
valve, low water light and low water shut-off.
Faucet bracket.
Mounting base includes lugs for bolting to counter top or floor
stand.
Requires 208 or 240 volt, 60 Hz, 1 or 3 phase power supply.
One year limited parts and labor warranty.
OPTIONS
Tilting kettle strainer.
480 volt, 60 Hz, 3 phase power supply.
Second year extended limited parts and labor warranty.
2 ).
ACCESSORIES
One piece lift-off stainless steel cover.
Stainless steel basket assembly.
Contour measuring strips.
VSKT30 Stand (F32474).
(12") (18" double jointed) single pantry faucet.
(12") (18" double jointed) double pantry faucet.
Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
Double pantry washdown hose with backflow preventer.
Double pantry pot filler and backflow preventer.
Item # __________________________
C.S.I. Section 11420
2 ).
