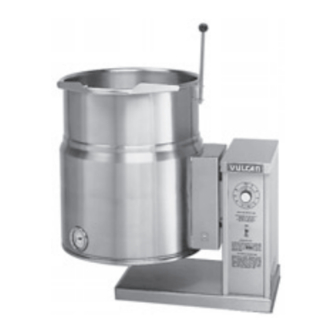

Vulcan-Hart VEC10 Replacement Parts

Electric counter tilting 2/3 jacketed kettles vec series

Hide thumbs Also See for VEC10:

ELECTRIC COUNTER TILTING

2/3 JACKETED KETTLES

VEC SERIES

MODELS

VEC6

VEC10

VEC20

For additional information on Vulcan-Hart or to locate an authorized

parts and service provider in your area, visit our website at www.vulcanhart.com

VULCAN-HART

DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC

WWW.VULCANHART.COM

REPLACEMENT PARTS

P.O. BOX 696, LOUISVILLE, KY 40201-0696

CATALOG OF

Model VEC10

TEL. (800) 814-2028

FORM 37111 (6-07)

Table of Contents

Need help?

Do you have a question about the VEC10 and is the answer not in the manual?

Page 1 2/3 JACKETED KETTLES VEC SERIES MODELS VEC6 VEC10 VEC20 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF...
Page 2 00-881969 REPLACEMENT PARTS LIST NAME OF PART Cover, Kettle Enclosure VEC6 ... 1 Cover, Kettle Enclosure VEC10 ... 1 Bolt, Enclosure Cover ... 1 Air Vent 7/16", Assy..1 Valve, Pressure Relief (35 psi) ... 1 Valve, Pressure Relief (50 psi) ... 1 Handle, Tilt ...
Page 3 220V or 380V, 12 Kw ... 1 00-881999 480V, 12 Kw ... 1 Panel, Control 00-853159 Mylar Control Panel Overlay (VEC6, VEC10, VEC12) ... 1 00-852055 Control Panel Overlay (VEC20) ... 1 00-840475 Cover, Box, Trunnion (VEC10) ... 1 00-840476 Cover, Box, Trunnion (VEC6) ...
Page 4 Remote Potentiometer ... 2 00-881996 Element (208V) (12Kw) (VEC10/20) ... 2 00-881998 Element (240V) (12Kw) (VEC10/20) ... 2 00-881999 Element (480V) (12 Kw) (VEC10/20) ... 2 00-881973 Thermostat (VEC20) ... 2 00-836968 Thermostat Knob ... 2 00-881994 Temperature Sensor ... 2...
