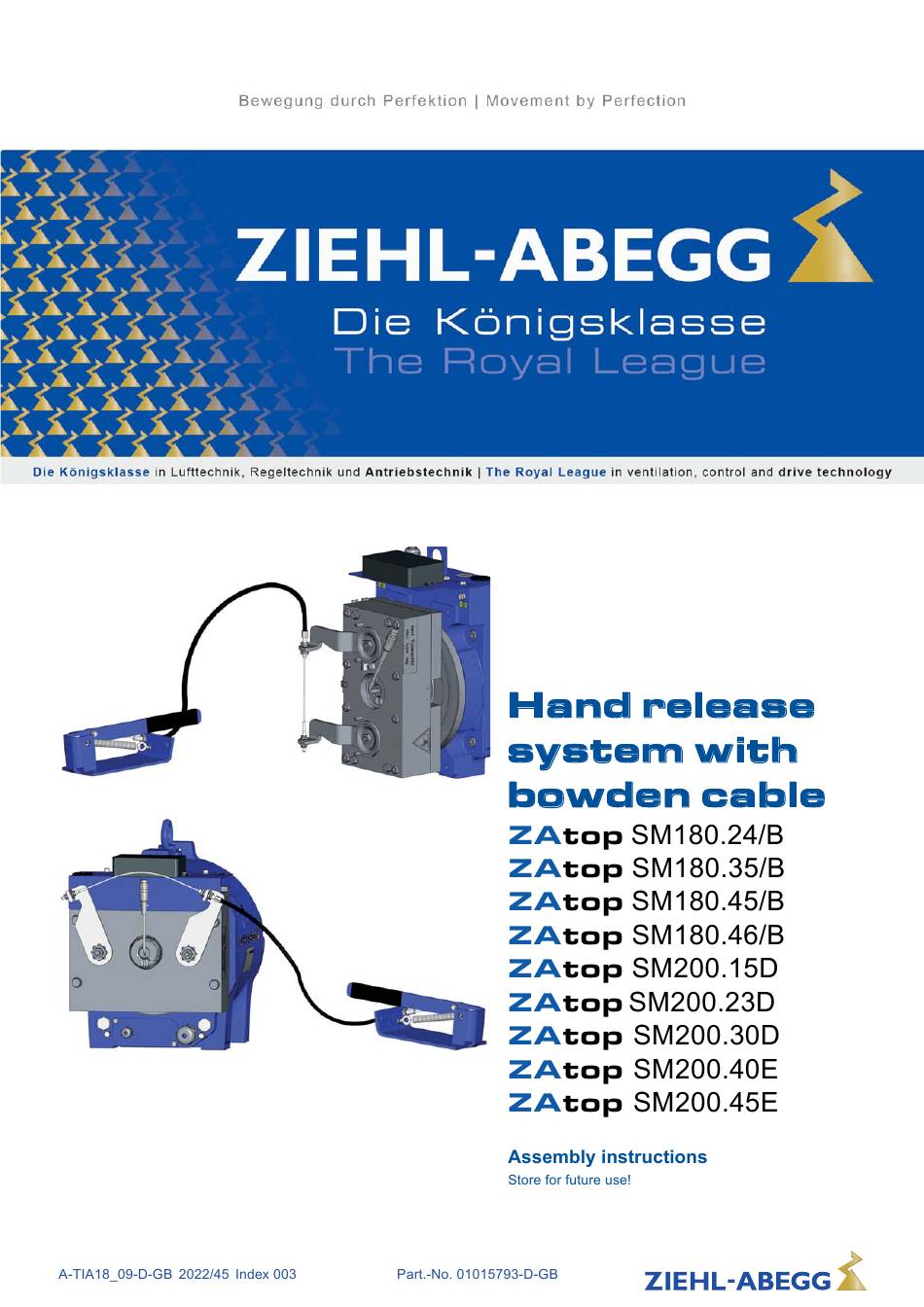

ZIEHL-ABEGG ZAtop SM180.24/B Assembly Instructions Manual
Hand release system with bowden cable
Hide thumbs
Also See for ZAtop SM180.24/B:
- Original operating instructions (76 pages) ,
- Assembly instructions manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for ZIEHL-ABEGG ZAtop SM180.24/B
Summary of Contents for ZIEHL-ABEGG ZAtop SM180.24/B
-
Page 2: Table Of Contents
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Content General information ............Safety instructions . -
Page 3: General Information
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E General information 1 General information • These assembly instructions contain additional information on the operating instructions of the elevator machine. Observe the operating instructions of the elevator machine. •... -
Page 4: Product Overview
• The bowden cable ZAtop SM180/SM200.15D-SM200.45E may be used only in conjunction with the following elevator machines and brakes: Elevator machine Brake type ZAtop SM180.24/B ROBA®-twinstop® (RTW), Size 250 ZAtop SM180.35/B ROBA®-twinstop® (RTW), Size 250 ZAtop SM180.45/B ROBA®-twinstop® (RTW), Size 350 ZAtop SM180.46/B... -
Page 5: Scope Of Delivery
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Product overview Bowden cable mounted on the ZAtop SM200.15D elevator machine Scope of delivery 1 Eye bolt 2 Base plate 9 Bowden cable 5 Levers for hand release 15 Tension spring 11 Angle joint Pos. -
Page 6: Commissioning
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning 4 Commissioning General The hand release system with bowden cable must be installed by the customer. Danger! Impairment of the functioning of the bowden cable If the functioning of the bowden cable is impaired, it may be that the brakes can not be opened or closed any more. - Page 7 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Screw nut M6 (3) onto the eye bolt (1). " " Insert the eye bolt (1) into the opening on the base plate (2). " " Screw nut M6 (3) onto the eye bolt.
- Page 8 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Insert hexagon head screw M6 x 20 - 8.8 (4) into tension spring eye. " " Screw nut M6 (3) onto screw M6 (4). " " Screw hand lever (5) onto the hexagon head screw M6 x 20 - 8.8 (4).
- Page 9 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Insert cylinder screw M12 x 35 - 8.8 (6) into the openings of the base plate (2) and lever for hand release (5). " " Screw two nuts M12 (7) onto the cylinder screw M12 x 35 - 8.8 (6).
- Page 10 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Insert bowden cable (9) into the base plate opening. " " Screw nut M10 (10) onto the bowden cable. " " Screw nut M8 (8) onto the bowden cable. A-TIA18_09-D-GB 2022/45 Index 003 Part.-No.
- Page 11 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Screw angle joint (11) onto bowden cable. Lock nut M8 (8). " " Insert angle joint (11) into the opening of the lever for hand release (5). "...
-
Page 12: Assembly Of The Bowden Cable On The Brake
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning Assembly of the bowden cable on the brake Bowden cable end overview a Threaded end b Adjusting screw " " Screw two nuts M8, low form (12) onto the adjusting screw. "... - Page 13 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Screw two nuts M8, low form (12) onto the adjusting screw. Lock the nuts. " " Screw two nuts M6, low form (13) approx. 3 cm onto the threaded end. "...
-
Page 14: Adjusting The Bowden Cable
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Commissioning " " Screw a washer D6 (14) onto the threaded end. " " Screw two nuts M6, low form (13) onto the threaded end. Lock the nuts. Adjusting the bowden cable •... -
Page 15: Controls
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Controls • The pre-tension must be set so that the brakes are closed when the lever for hand release is not pulled. • After assembly, secure the nuts and locking nuts on the bowden cable with threadlocker. 5 Controls •... -
Page 16: Service Work
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Service work 6 Service work Danger! Risk of accident and damage to property caused by maintenance work not carried out prop- erly! Maintenance work not carried out properly endangers the safety of the elevator system. Injury to persons and damage to property can occur. -
Page 17: Enclosure
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Enclosure 7 Enclosure Dimension sheet 7.1.1 Dimension sheet ZAtop SM180/B with bowden cable hand release system A-TIA18_09-D-GB 2022/45 Index 003 Part.-No. 01015793-D-GB 17/22... -
Page 18: Dimension Sheet Zatop Sm200.15D With Bowden Cable Hand Release System
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Enclosure 7.1.2 Dimension sheet ZAtop SM200.15D with bowden cable hand release system A-TIA18_09-D-GB 2022/45 Index 003 Part.-No. 01015793-D-GB 18/22... -
Page 19: Dimension Sheet Zatop Sm200.23D/Sm200.30D/Sm200.40E/Sm200.45E With Bowden Cable Hand Release System
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Enclosure 7.1.3 Dimension sheet ZAtop SM200.23D/SM200.30D/SM200.40E/SM200.45E with bowden cable hand release system A-TIA18_09-D-GB 2022/45 Index 003 Part.-No. 01015793-D-GB 19/22... -
Page 20: Legend For Dimension Sheets
Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Enclosure 7.1.4 Legend for dimension sheets 1 Number of grooves represented schematically 8 Encoder 20 Bowden cable 21 Minimum bending radius R = 300 mm 22 Lever in opening position 23 Starting position 24 Levers mountable on both sides 25 Brake circuits cannot be individually released... - Page 21 Assembly instructions Hand release system with bowden cable ZAtop SM180/SM200.15D - SM200.45E Enclosure A-TIA18_09-D-GB 2022/45 Index 003 Part.-No. 01015793-D-GB 21/22...
- Page 22 Customer Service phone +49 7940 16-308 +49 7940 16-249 drives-service@ziehl-abegg.com Headquarters ZIEHL-ABEGG SE Heinz-Ziehl-Straße · 74653 Künzelsau Germany phone +49 7940 16-0 · fax +49 7940 16-249 drives@ziehl-abegg.de · www.ziehl-abegg.com...
