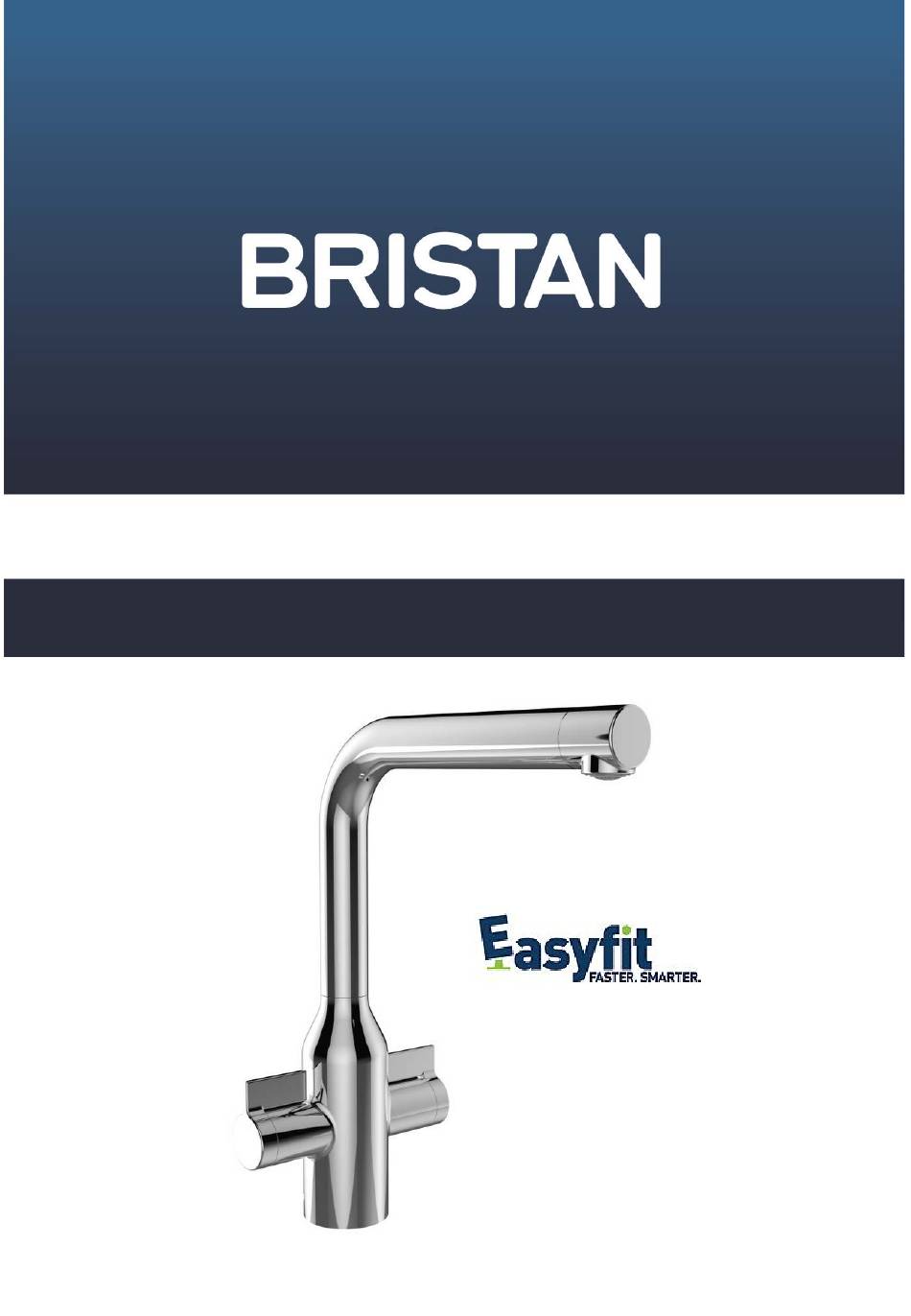

- Page 1 Wine Easyfit Kitchen Sink Mixer Installation Instructions & User Guide Please keep these instructions for future reference...
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed correctly, used correctly and receive regular maintenance in accordance with these instructions. -
Page 4: Dimensions
Dimensions All measurements are in mm and are approximate... -
Page 5: Installation Requirements
Installation Requirements. Flexible Connecting Pipes See below for recommended ways to fit Care must be taken when connecting the the flexible connecting pipes flexible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connecting pipes Isolation Valves... -
Page 6: Installation
Installation Basin Mixer... - Page 7 Installation Cont. Identify all components are present prior to starting installation using the diagram on page 06. Spout Assembly Grub Screw Spout Grub Screw Easy Fit Assembly Handle Flexible Connecting Pipes Indice Isolation Valve Spline Adaptor Non-Return Valve CD Valve Fixing Plate Grub Screw Hexagonal Key...
- Page 8 Installation Cont. 3. Attach flexible connecting pipes. Important: Before connecting the flexible connecting pipes, please refer to the specific installation requirements on page 5. Carefully screw the ‘flexible connecting pipes’ into the ‘push-fit connectors’. Fit the isolation valves (supplied) to the flexible connection pipes and turn to the 'closed' position as shown on page 5.
-
Page 9: Maintenance
4. Carefully clean the valve (6) and the tap body housing before re-inserting and testing. 5. If necessary replace the valve/s. Please visit www.bristan.com/sparesfinder in order to find spare parts for this product. 6. Re-fit all of the remaining components and turn on water supply. -
Page 10: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow Partially closed stop or service Open stop or service valve. rate. valve in water supply pipework to the tap. Head of water is below the Refer to the Specification section minimum distance required. for minimum pressures required. -
Page 11: Guarantee
5 year parts only. Subject to proof of purchase. *Labour provided by an approved Bristan engineer. Guarantee only applies to products with a manufacturing fault. A deferred payment will be necessary in order to secure any visits by our engineers which will be charged if the problem is found not to be a manufacturing fault. - Page 12 This booklet covers product code: WIN EFSNK C WIN EFSNK BN Helpline 0844 701 6273 Bristan Group Limited Birch Coppice Business Park, Dordon, Tamworth, Staffordshire B78 1SG A Masco Company Website: www.bristan.com Telephone: 0844 7016 274 Facsimile: 0844 701 6275 Email: enquire@bristan.com...
