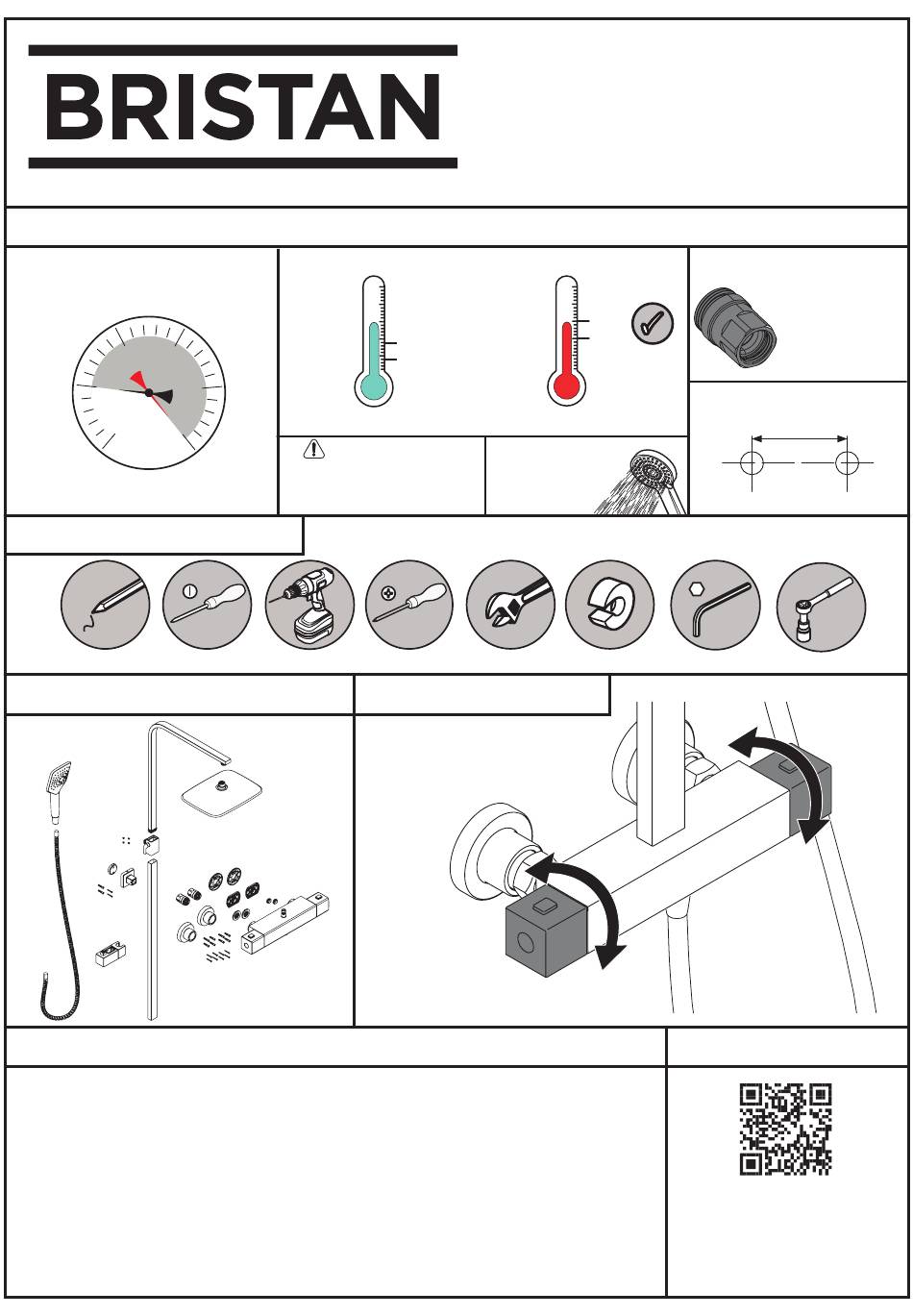

Bristan CRZ2 SHXDIVCTFF C (D5) Installation Instructions & User Manual

Hide thumbs Also See for CRZ2 SHXDIVCTFF C (D5):

Installation instructions & user manual (2 pages)

Installation instructions & user manual (2 pages)

Table Of Contents

Quick Links

Download this manual

Dynamic Water Pressure

Max: 5.0 bar

Min: 1.0 bar

2.0

3.0

1.0

4.0

5.0

Pressure

BAR

Maximum Static Pressure: 10.0 bar

Tools Required

Pencil

Flat head Screwdriver

Pack Contents

Prior to Installation

All products manufactured and supplied by Bristan are safe to use provided that they are installed,

operated and receive regular maintenance in accordance with these instructions.

This product needs to be installed in accordance with, and meet the requirements of The

Water Supply (Water Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings)

(Scotland) Byelaws 2014. For full Installation Requirements & Notes (IRN) please visit www.wrasapprovals.

co.uk/approvals-directory

Before installing this product the water supply must be thoroughly flushed in order to remove any swarf,

solder etc. Full access must bemade available for future maintenance/servicing purposes. Isolation valves

must be fitted to the inlet water supplies to ensure ease of future maintenance.

Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes. This

can be checked with the aid of an electronic detector. If power tools are used do not forget to:

- Wear eye protection

This product must not be modified in any way as this will invalidate the guarantee.

Specifications

Min 5°C; Max 25°C

IMPORTANT

The inlet hot water must

be at least 10°C above the

required blend temperature.

Drill

Cross head Screwdriver

- Unplug equipment after use

Installation Instructions

Please leave these instructions

Inlet Water Temperature

25°C

5°C

Recommended 60°C;

Max 65°C

Factory

pre-set 38°C

Spanner

Operation

On -

Fixed Head

& User Guide

with the end user

CRZ2 SHXDIVCTFF C (D5)

Inlet Connections

65°C

60°C

Pipe Cutter

Hexagonal Keys

Cold

On -

Handset

Spares

To replace any spare parts

for your shower, why not

scan the QR Code or visit

www.bristan.com and

search for your product.

1/2"

Compression

Inlet Dimensions

150mm

Centres

Socket Spanner

Hot

Table of Contents

Troubleshooting

Need help?

Do you have a question about the CRZ2 SHXDIVCTFF C (D5) and is the answer not in the manual?

Questions and answers

Summary of Contents for Bristan CRZ2 SHXDIVCTFF C (D5)

Page 1 Prior to Installation Spares All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations (Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014.
Page 2 Installation Instructions and User Guide Bar Showers with Wallmount 12 Fixing Kit (WMNT12) Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
Page 3: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 6273.
Page 4: Important Safety Information
Important Safety Information Please make sure you read these instructions and retain for future use. All products manufactured by Bristan are safe, providing they are installed and used correctly and also receive maintenance when needed. These fittings, including the connecting water and waste system need to be installed in accordance with and meet the requirements of the Water Supply Regulations 1999 (Water Fittings) and current by-laws.
Page 5: Installation Requirements
These showers are designed to be used a ratio of 5:1 - see Specification section) in conjunction with the kit supplied, or Bristan shower kits where not supplied. • Gravity Fed Hot and Mains Cold We cannot guarantee compatability or...
Page 6 Installation Requirements Gravity Fed Hot and Cold Gravity Fed Hot and Mains Cold 1m min. min. cold mains supply cold mains supply Isolating Reducing Key: Shower Essex Pump Valve Valve Valve Flange Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Page 7 Installation Requirements Instantaneous Water Heater Unvented System cold mains supply cold mains supply Pumped System Pumped System (with Essex flange) 1m min. 1m min. If less than 1m see note. 50mm cold mains supply cold mains supply Isolating Reducing Key: Shower Essex Pump...
Page 8: Installation
Installation PLEASE NOTE - Wall Mounts shown in these instructions are for illustration purposes only. WMNT12 and WMNT12 SQ can be fitted using these instructions. Identify the required position of the valve and prepare the water supply pipes. Supply pipes should be 150mm apart.
Page 9: Isolation
Isolation Rotate the shroud Rotate the shroud until the opening until the opening aligns with the aligns with the isolat isolati i on screw. on screw. Turn the screw Turn the screw to isolate the to isolate the Remove the Remove the water.
Page 10: General Cleaning
General Cleaning Bristan products are made from premium materials, with hand polished, PVD, EPD or electroplated finishes. Your bar shower should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. Any residues from soap, toothpaste, shampoos and shower gels can cause blemishes if not rinsed off straight after use.
Page 11: Maintenance - Cartridege/Valve Cleaning
Maintenance - Cartridge/Valve Cleaning PLEASE NOTE - Bar showers shown in these instructions are for illustration purposes only. All bar showers can be fitted/maintained following these instructions. Remove temperature and flow handle. Replace nut and temperature stop. Ensure the raised side is facing towards the back of the valve.
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy Partially closed isolation valve. Open isolation valve. Instantaneous water heater cycles on and Increase water flow rate or off as flow rate or pressure is too low. pressure through system. Head of water is below the Refer to the specification for the minimum distance required.
Page 13 A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
Page 14 Installation Instructions and User Guide Rigid Riser & Telescopic Riser Kits Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
Page 15 Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed these products with your enjoyment in mind. To ensure that they work to their full potential, they need to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 6273.
Page 16: Important Safety Information
Important Safety Information All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and current by-laws.
Page 17: Prior To Installation
Please refer to your specific shower kit contents page for specification information. These kits are designed to be used in conjunction with Bristan showers. We cannot guarantee compatability or adequate performance when used with other showers.
Page 18: Installation - Inline Diverter
Installation - Inline Diverter Fit the rigid riser to the diverter valve. Tighten the compression nut fully using a suitable spanner to ensure a watertight seal. Connect your chosen hose and handset. Check your rigid riser kit bracket Compression type to move to the next stage IMPORTANT of installation.
Page 19 Installation - Rigid Risers Fit the rigid riser to the top outlet. If attaching directly to a threaded connection, use the threaded adaptor where supplied. Ensure the olive is fitted and tighten the compression nut fully. Adaptor for Threaded Connection IMPORTANT Do not over tighten fixings.
Page 20: Installation - Rigid Risers
Installation - Rigid Risers Disassemble the bracket to reveal the fixings/fixing holes. Align in the marked area on the wall and mark up the fixing holes. REMEMBER Check for hidden pipes and cables before drilling! Drill the fixings holes and secure the bracket/ bracket fixings to the...
Page 21 Installation - Rigid Risers Attach the fixed head, handset (if supplied) and hose (if supplied) to the shower. Ensure the sealing washers are in place if supplied. Turn on the water supply and check all joints and connections for any leaks. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Page 22: Installation - Telescopic Round Risers
Installation - Telescopic Round Risers Attach the riser rail to the shower secure with the Push the nut. shower arm into the riser rail. Slide the bracket, slider and nut on to the riser rail. Tighten nut to Using a spirit secure riser.
Page 23: Installation - Telescopic Square Risers
Installation - Telescopic Square Risers Attach the riser rail to the shower. Check Insert the for grub shower screw(s) arm into placement the riser and secure rail. in place. Slide the bracket and slider on to the riser rail. Tighten the grub screws at the back of the bracket to secure the Using a spirit...
Page 24: General Cleaning
General Cleaning Bristan products are made from premium materials, with hand polished, PVD, EPD or electroplated finishes. Your Bristan shower Your product should be regularly cleaned with head may have rub-clean warm water, a mild pH-neutral liquid soap, and nozzles for easy cleaning.
Page 25 A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
