Evenflo Reversi - Lightweight Reversible Stroller Manual

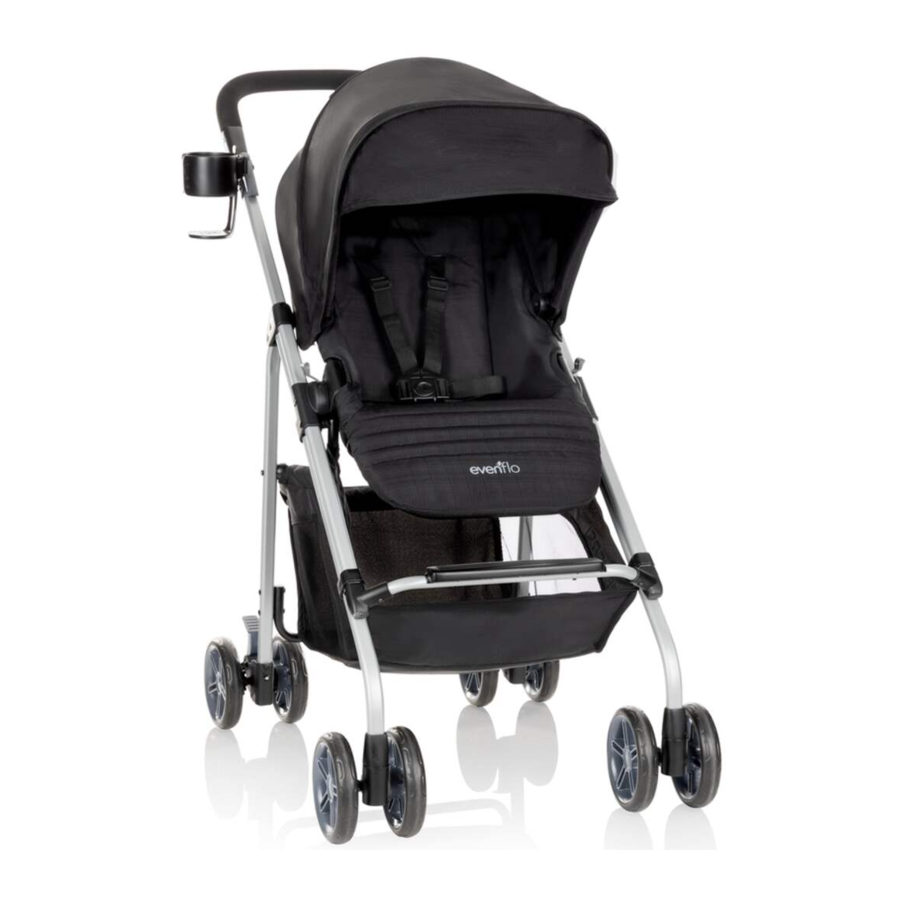

Features

STROLLER
Up to 50 lbs (22.6 kg)
Up to 40 in. (101.6 cm)

Features

Canopy
Parent's Handle
Cupholder
Toddler Seat
Toddler Seat Release Tab
Swivel Wheels
Buckle
Shoulder Straps
Canopy Visor
Fold Latch
Multi-Position Recline Handle
Storage Basket
Brakes

Identification of Parts

Please check that you have all the parts shown below before assembling product. If you are missing any parts, please contact ParentLink at 1-800-233-5921.
Identification of Parts

Important Information

Child Requirements - Only use the stroller in the upright position with a child who is capable of sitting upright unassisted.

Maximum weight: 50 lbs (22.6 kg)
Maximum height: 40 inches (101.6 cm)

Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. If you are missing parts, do not use stroller and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 800-706-1200 (México) to order replacement parts.

Registration Information
Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at www.evenflo.com/registerproduct.

For future reference, record the Model Number and Date of Manufacture. You can find this information on one of the rear stroller legs.

Assembling Your Product

Frame

To protect flooring, place a protective covering (cardboard, towel, small rug or blanket) beneath the stroller during assembly.
To lock the stroller in the open position, pull upward until the stroller opens fully with an audible click. Press down on stroller frame to ensure stroller is securely extended and locked into position.
To attach parent handle, locate the hand icons at the top of stroller frame.
Align the handle with the stroller frame, ensuring the gray buttons are on top. Push handle downwards onto frame until parent handle clicks into place on both sides with an audible click.
Once installed, PULL up on the parent handle to make sure it is locked into place.

Wheels

To attach rear wheels (with grey brake), push wheel onto rear leg tube until it clicks into place. Repeat on other side.
NOTE: Brake levers point toward rear of stroller.
Pull on wheels to make sure both of them are securely attached.
To attach front wheels, push wheel onto front leg tube until it clicks into place. Repeat on other side.
Pull on wheels to make sure both of them are securely attached.

Cupholder

To attach cupholder, slide down on the mount on the side of the stroller as shown.
NOTE: Cupholder can be mounted on one of two available mounts.
To remove cupholder, pull tab towards center and slide up as shown.

Attaching Toddler Seat

Before attaching toddler seat to stroller, CHECK to make sure mounts are in the most upright position.
If mounts are not set to the upright position, you will need to lift the multi-position recline handle at the top of toddler seat and rotate mounts as shown.

If mounts are not in the most upright position, you will not be able to properly attach the seat to the stroller mounts.

To attach seat, lower seat and attach mounts onto BOTH sides of the stroller frame until they click into place.
PULL UP on both sides of the seat to ensure it is securely attached before placing the child in it.

Removing Toddler Seat

To remove the seat, press the tabs on each side of the seat toward the CENTER of the stroller, as shown.
Pull the toddler seat off of stroller frame.

DO NOT pull tabs to the outside of stroller.

Using Your Unit

Harness

DEATH or SERIOUS INJURY can occur.

To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.

NOTE: Verify the stroller is locked in the open position by lifting up the rear of the stroller using the parent's handle.
Lock the rear brakes.
The harness shoulder straps must be at shoulder height or lower, closest to the baby's shoulders .
Place the baby in the seat and bring the crotch panel up between the child's legs. Fasten each buckle .
To adjust harness around your child, slide retainer to tighten shoulder and waist straps by pulling on the free end of the waist strap as shown.
To loosen the waist straps, push the tab on the buckle tongue and pull.
To loosen shoulder straps, slide the retainer down.
To change shoulder strap height positions, reach one hand behind the stroller and push the retainer out to the front of seat then reinsert into the desired set of slots that are closest to your child's shoulder.
Repeat with other harness strap.
When re-inserting the harness straps, MAKE SURE to always place both harness straps at the same height setting.

Canopy

To open or close canopy, push to the front or rear of the stroller.
To extend canopy further, pull canopy visor out as shown.
To access canopy window, pull flap forward as shown.

Brakes

DEATH or SERIOUS INJURY can occur.

Always lock both brakes.
Make sure brakes are on by trying to push the stroller.

To lock, press lever DOWN on both rear wheels.
To unlock, lift lever UP on both rear wheels.

Reclining Seat

DEATH or SERIOUS INJURY can occur.

To avoid serious injury, DO NOT raise or recline seat with child in stroller.

To recline seat, lift recline handle at top of toddler seat and pull seat down into one of three positions.
NOTE: Be sure to fully engage recline handle BEFORE pulling toddler seat into position.
To place seat in upright position, lift recline handle and pull toddler seat up.

Folding the Unit with Seat

DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

DO NOT fold stroller when toddler seat is in reverse or reclined position.

Before folding, adjust toddler seat to upright position, close the canopy and place seat on frame facing forward.
To fold the stroller, press the grey buttons on handles, pull the fold latch levers and pull stroller frame up.
Push down on stroller until it latches closed.
Stroller will stand on its own when folded.
NOTE: Rolling the stroller forward before folding will help ensure the wheels are in the correct direction to self-stand.

Folding the Unit without Seat

To remove the toddler seat, press the tabs on each side of the seat toward the CENTER of the stroller, as shown.
Pull the toddler seat off of stroller frame.

DO NOT pull tabs to the outside of stroller.

To fold the stroller, press the grey buttons on handles, pull the fold latch levers and pull stroller frame up.
Push down on stroller until it latches closed.
Stroller will stand on its own when folded.
NOTE: Rolling the stroller forward before folding will help ensure the wheels are in the correct direction to self-stand.

Using your Unit with the Recommended Infant Car Seats on your Unit Frame

Only use Evenflo SafeMax or LiteMax infant car seats with this stroller (sold separately). Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
Before using the infant car seat with this stroller, read all the instructions provided with it and keep the instructions stored properly for future use.
DO NOT lift stroller by using the infant car seat handle when installed on stroller.
If unable to securely attach your infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
To avoid serious injury, make sure the infant car seat is securely snapped onto the car seat mounts.
Some Evenflo SafeMax and LiteMax infant car seats have a blanket/boot option that must be removed for proper attachment to this stroller.

Visit evenflo.com for list of compatible infant car seats.

To remove the toddler seat, press the tabs on each side of the seat toward the CENTER of the stroller, as shown.
Pull the toddler seat off of stroller frame.

DO NOT pull tabs to the outside of stroller.

Insert car seat adapters into the mounts on the sides of the stroller frame as shown until it clicks into place.
CHECK to make sure the car seat adapters are securely latched onto the stroller frame by pulling up on them.
Insert the car seat onto the mounts until it clicks into place on both sides of the frame.
NOTE: The infant car seat can be installed facing the parent or facing forward on the stroller frame.
CHECK to make sure the car seat is securely latched onto the car seat adapters by lifting up on it.
To remove car seat, squeeze handle on the rear of the car seat and pull car seat off the car seat adapters.

Care and Cleaning

Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.

Safety Instructions

DEATH or SERIOUS INJURY can occur.

Read and follow all warnings and instructions. Failure to do so could result in serious injury or death.

Only use Evenflo SafeMax and LiteMax infant car seats with this stroller (sold separately).
Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
NEVER leave child unattended. ALWAYS keep child in view while in the stroller.
Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
To prevent a possible choking hazard, remove and discard packing material before using this product.
Avoid serious injury from falling or sliding out. ALWAYS use waist restraint.
DO NOT carry or roll stroller on stairs or escalators with child in it.
DO NOT hang items on handle bar or place them on the canopy as they can tip stroller over and injure child.
Be sure stroller is fully assembled and locked in unfolded position before using.
ALWAYS exercise care when going over curbs or steps, and never use stroller for anything other than transporting your child. Push stroller at a normal walking pace only; faster strolling can cause a loss of control and injury to the child.
DO NOT place hot liquids in cup holder. Spills can burn you or your child.
To avoid serious injury from child falling out of stroller,DO NOT raise or recline seat with child in stroller.
DO NOT use stroller if any parts are missing or broken.
DO NOT allow child to climb on, into, out of, or around stroller.
DO NOT allow child to stand on the footrest. Stroller may tip over and injure child.
DO NOT carry additional children, goods, or accessories in or on this stroller except as advised in these instructions. The stroller is intended for use with one child and to accommodate only the additional weights in storage as listed in these instructions.
Care must be taken when folding or unfolding stroller to prevent finger injury to you or your child in hinge areas. Make sure child is not in the seat or near the stroller when folding or unfolding.
NEVER leave stroller on a hill or incline, even with brakes set. Stroller may tip, injuring the child.
To avoid accidental rolling,ALWAYS set brakes when stroller is not being pushed.
AVOID STRANGULATION:
- DO NOT suspend strings or toys from the canopy.
- DO NOT place stroller anywhere near cords from window blinds, draperies, phone, etc.
- DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.
- If not properly secured, the child may slip into leg openings and strangle.
When making adjustments to the stroller, ALWAYS ensure that all parts of the child's body are clear of any moving parts of the stroller.
The canopy is not intended to provide UV protection.
Sharp or heavy objects placed in pockets may cause damage to the stroller, or injury to the child.
To ensure safety for your baby, please refer to the manufacturer's instructions for the use of your recommended infant car seats and keep all instructions available for reference.
DO NOT lift stroller by using the infant car seat handle when installed on stroller.
If unable to securely attach the infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
To avoid stroller instability and tip-overs, DO NOT load cup holder with over 1 lb (0.45 kg), and the main cargo basket with over 10 lbs (4.5 kg).
NEVER use the toddler seat without the canopy attached.
NEVER use the stroller frame without the toddler seat or car seat attached.
NEVER use toddler seat in a motor vehicle or use it as a booster seat.
To avoid falls, never remove toddler seat from the stroller with child in it.
To avoid falls, always make sure the toddler seat or car seat is securely attached into the seat mounts on both sides of the stroller before placing child in the seat.
