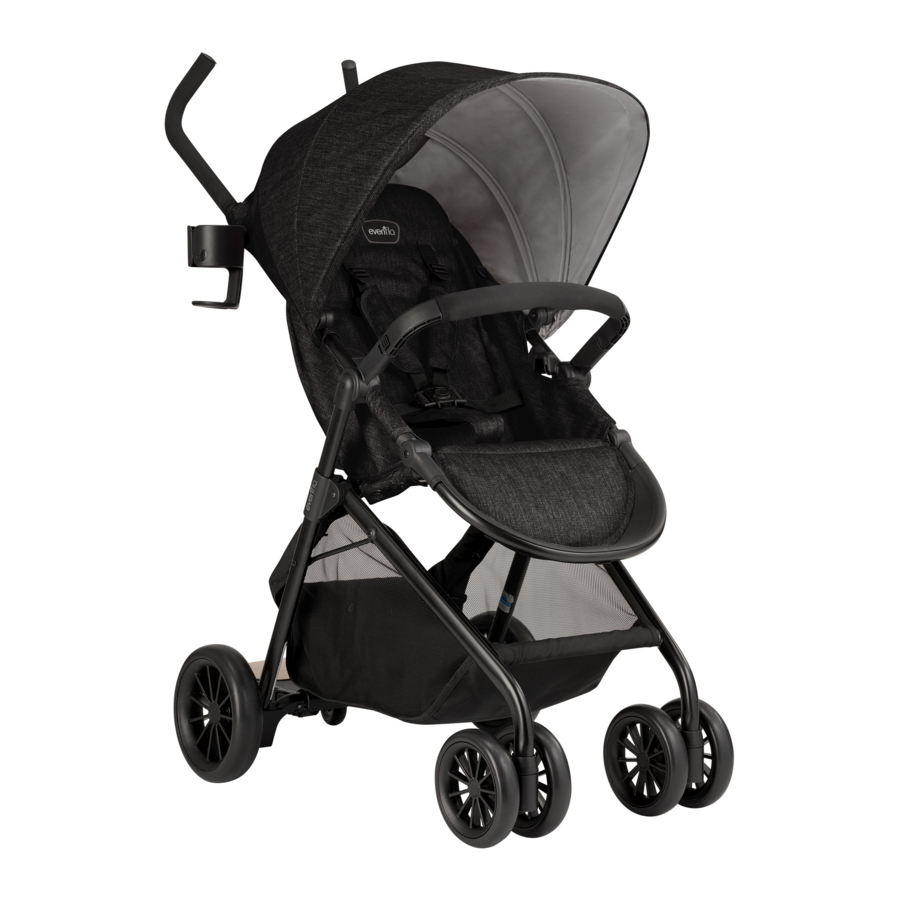

Evenflo Sibby Manual

FEATURES

1. Parent's Handle
2. Canopy
3. Cupholder
4. Shoulder Straps
5. Harness Covers
6. Buckle
7. Bumper Bar
8. Wheel
9. Footrest
10. Side Frame Lock
11. Storage Basket
12. Brakes
13. Ride-along board
14. Multi-Position Recline Strap
15. Safety Tether

IDENTIFICATION OF PARTS

ASSEMBLING YOUR STROLLER

1.
   Remove and IMMEDIATELY discard the zip tie around footrest.

   Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.
   To protect flooring, place a protective covering (cardboard, towel, small rug or blanket) beneath the stroller during assembly.
   Unlatch side frame lock .
   Continue holding the lock open while unfolding the stroller.

   Grab the parent's handle near the top of the canopy and pull upward until the stroller opens fully with an audible click. Make sure the stroller locks in the open position by pushing down on the parent's handle.

2. Turn the stroller upside down, as shown, so the rear of the stroller is facing upwards.
   To attach rear wheels, push wheel onto rear leg tube until it clicks into place. Repeat on other side.
   PULL ON wheels to make sure both of them are securely attached.

   To remove, push metal button and pull wheel off stroller.

3. Turn the stroller so the front of the stroller is facing upwards, as shown.
   Slide a front wheel assembly into the front frame leg until it locks into place with an audible click. Pull downward on the front wheel assembly to make sure it is locked securely. Repeat for other side.
   Turn the stroller right side up onto its wheels.

4. To attach bumper bar, push tabs into openings on stroller. Make sure bumper bar locks into position with audible clicks.
   Pull on the bumper bar to make sure it is locked into place.

5. To remove the bumper bar, push both tabs remove the bar from the stroller.


USING YOUR STROLLER

1.
   ALWAYS APPLY THE BRAKES WHEN THE STROLLER IS STATIONARY. Make sure brakes are on by trying to push the stroller.
   Step on the rear brake levers to LOCK the rear wheels on the stroller.

   To release the brakes, LIFT UP on the brake levers.

2. To extend canopy, pull it forward as shown.

   To close, push canopy toward parent's handle as shown.

3. To attach cupholder, slide down on the mount on the side of the canopy as shown.

4.
   To avoid serious injury, DO NOT raise or recline seat with child in stroller. THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH CHILDREN LESS THAN 6 MONTHS OLD.
   To recline seat, squeeze adjuster and pull down the recline strap on the rear of seat.

   To raise the seat, hold the D-ring on strap, then slide the adjuster toward the seat.

5. To adjust footrest, lift up to Position 1 or Position 2.

   To lower, lift footrest all the way UP then lower it.

6.
   Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.
   To fold the stroller, lock the rear brakes, close the canopy, and remove your child.
   Pull the D-RIng located on the side of the stroller as shown then pull up on the in-seat fold strap located under the pocket in the seating area until the side frame lock clicks into place.

   After you pull the in-seat fold strap you may need to push the stroller together in order for the side frame lock to fully lock in place.
   To unfold the stroller, unlatch the side frame lock. Continue holding the lock open while unfolding the stroller. Grab the parent's handle near the top of the canopy and pull upward until the stroller opens fully with an audible click. Make sure the stroller locks in the open position by pushing down on the parent's handle.
7.
   To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.
   Note: Verify the stroller is locked in the open position by lifting up the rear of the stroller using the parent's handle.
   Lock the rear brakes and remove the bumper bar.
   5-point Harness:

   The harness shoulder straps must start at shoulder height or lower, as shown, and use the harness strap loops closest to the baby's shoulders. To adjust the height of the harness shoulder straps to the baby's shoulder height, do the following:
   1. Remove each harness shoulder strap from each buckle , as shown.
   2. Thread each harness shoulder strap under the harness strap loop that is closest to the baby's shoulder.
   3. Reattach each harness shoulder strap to each buckle .

   Place the baby in the seat and bring the crotch panel up between the child's legs. Fasten each buckle . For a snug, comfortable fit: pull the shoulder straps to tighten the shoulder restraint and pull the waist restraint straps to tighten the waist restraint.
   Note:
   To loosen the waist straps , push in the release button on the buckle and pull.
   To loosen shoulder straps push up on the retainer while pulling down on the shoulder strap.
   Once the child is properly restrained, re-attach the bumper bar. Make sure the bumper bar locks into position with audible clicks. Pull on the bumper bar to make sure it is locked into place.
   The shoulder straps of the 5-point harness have 3 attachment positions. Select the position that places the shoulder strap level with, or below the top of the child's shoulders.

   To unlock harness, push button on the crotch buckle then slide the shoulder straps off the waist buckle.


USING YOUR RIDE-ALONG BOARD

• TO AVOID FALLS, child must hold onto stroller at all times when standing on the Ride-Along Board.
• Board holds 22.7 kg. Use with only one child at a time.
• ALWAYS have child wear shoes when standing on the Ride-Along board.
• Always place seat in the fully upright position when a 2nd child is using the Ride-Along board. Only use the stroller in the upright position with a child who is capable of sitting upright unassisted.
• NEVER leave your child unattended on the board or in the stroller.
• Child MUST hold onto stroller handles at all times when standing on the Ride-along board.
• Caregiver MUST have hands on stroller handle at all times while child is on board or in stroller.
• DO NOT make sharp turns while child is on board.
• BEFORE using always check to make sure board is securely attached to tube.
• DO NOT allow child to play with the board.
• DO NOT allow child to stand on board over curbs or rough surfaces.
• ALWAYS help child on and off the board.
• TO AVOID POSSIBLE SLIPPING, ALWAYS use caution if board becomes wet.
• POSSIBLE TIP HAZARD, if child stands on board and hangs from the handles.
• DO NOT USE if any parts are broken, damaged or missing.


1. To attach the Ride-along board, clip it onto the rear leg tube until the buttons lock into place with an audbible click.
   CHECK to make sure it is securely attached by lifting up on it.

2. To store the Ride-along board when not in use or if you want to fold stroller with it attached, fold up the board toward the storage basket and fasten the clip on the side of the basket tube in between the grooves on the side of the board.
   Stroller can be folded when the Ride-along board is stored. Follow folding stroller instructions.

3. To remove the Ride-along board, slide the buttons back on the sides of the board and pull the board off the tube.


TETHER

A tether wrist strap is provided on the handle grip. Slide tether over hand whenever using the stroller.
Apply brakes before removing hand from the tether strap.

Child Requirements
Only use the stroller in the upright position with a child who is capable of sitting upright unassisted.
Maximum weight: 22.6 kg
Ride-along board: 22.6kg
This stroller is intended to be used with 2 children at the same time – one in the child seating position and one on the Ride-along Board.

Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. DO NOT USE YOUR STROLLER OR RIDE-ALONG BOARD UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS.

CARE AND MAINTENANCE

• Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.
• An occasional drop of vegetable oil may reduce wear and tear on moving parts.

KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE.

TO AVOID INJURY OR DEATH:

• ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THE STROLLER, OTHERWISE THEY MAY BE INJURED.

  USE THE HARNESS AT ALL TIMES.
• WHEN NOT IN USE DISCONNECT SHOULDER STRAPS FROM THE WAIST BUCKLE OR STRAP AS HARNESS CAN FORM LOOPS THAT CAN LEAD TO STRANGULATION.
• IT IS UNSAFE TO USE ACCESSORIES OTHER THAN THOSE APPROVED BY THE MANUFACTURER.
• THE STROLLER SHOULD NOT BE USED NEAR AN OPEN FIRE OR EXPOSE FLAME.
• THIS VEHICLE IS INTENDED FOR CHILDREN UP TO A MAXIMUM WEIGHT OF 22.6 KG
• DO NOT PLACE MORE THAN 5KG IN THE BASKET OR MORE THAN. 45 KG IN THE CUPHOLDER.

  USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY.
• THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING SURFACES AND MAYBE UNSTABLE ON HIGHER SLOPING AND UNEVEN SURFACES, RESULTING IN THE POSSIBILITY OF THE STROLLER TIPPING OVER.
• DUE CARE SHOULD BE EXERCISED WHEN FOLDING OR UNFOLDING THE STROLLER, AS THERE IS POTENTIAL FOR FINGERS OR BODY PARTS TO BE INJURED.
• THE STROLLER SHOULD ONLY BE CARRIED OR LIFTED WHEN IT IS PROPERLY FOLDED.
• DO NOT CARRY OR LIFT THE STROLLER BY THE WHEELS, THE GRAB BAR OR THE HARNESS - POSITION YOUR HANDS AT THE CENTER OF THE SIDE FRAME.
• WHEN FOLDING THE STROLLER, PLEASE CHECK VISUALLY THAT THE AUTOMATIC FRAME LOCK IS ENGAGED.
• ADULT ASSEMBLY REQUIRED.
• ALWAYS USE CARE WHEN USING THE STROLLER ON STAIRS OR ESCALATORS. YOU SHOULD ALWAYS REMOVE CHILD FROM STROLLER AND FOLD AND CARRY STROLLER DOWN MOVING SURFACES.

NEVER PUT ANY TOYS OR OTHER THINGS WITH STRINGS AROUND THE CHILD IN THE STROLLER.

BE CAREFUL NOT HAVE THE CHILD'S FINGER OR TOE ENTRAPPED WHEN ADJUSTING THE BACKREST, ROTATING THE HANDLE OR EXTENDING THE CANOPY.

IT AFFECTS THE STABILITY IF YOU PUT ANYTHING ON THE HANDLE BAR.

DO NOT ADD A THICK MATTRESS.

THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING.
