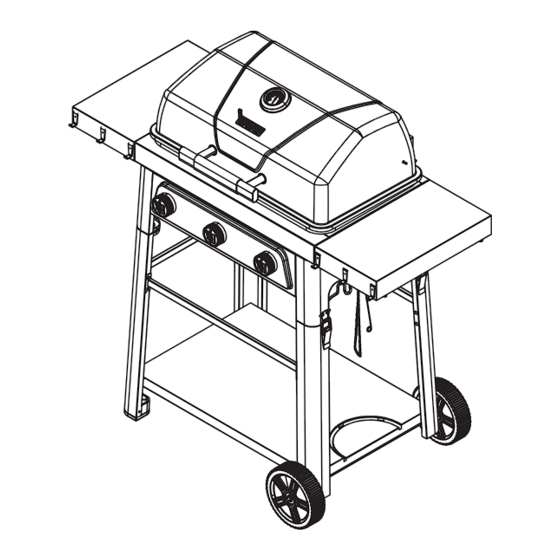

Bronco2 3 Burner Gas Grill
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(Outside any enclosure)
WARNING
FOR YOUR SAFETY:
• Improper Installation,
adjustment, alteration,
service or maintenance can
cause injury or property
damage.
• Read the installation,
operation, and maintenance
instructions thoroughly
before installing or
servicing this equipment.
• Failure to follow these
instruction could result
could cause property
damage, personal injury, or
death.
• This instruction manual
contains important
information necessry for
the proper assembly and
safe use of the appliance.
• Read and follow all
warnings and instructions
before assembling and
using the appliance.
• Follow all warnings and
instructions when using the
appliance.
• Keep this manual for future
reference.
WARNING
• Do NOT store or use
liquids or vapors in the
vicinity of this or any other
appliance.
• An LP cylinder not
connected for use shall
NOT be stored in the
vicinity of this or any
other appliance.
BMBRON2-3B / BG2046A3
rt
rt
TEL: 1300 667 146
rt
rt
rt
Keep this manual for future reference.
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using
the appliace.
Follow all warnings and instruction when using the appliance
rt
DANGER
rt
If you smell gas -
• Open lid.
• If odor continues, keep away from the appliance and
rt
rt
rt
OWNER'S MANUAL
rt
rt
Made from 75% Bagasse
(enviromentally-friendly sugar cane
pulp by-product
Advertisement
Table of Contents
Related Manuals for BRAND-MAN Bronco2
Summary of Contents for BRAND-MAN Bronco2
- Page 1 OWNER'S MANUAL Bronco2 3 Burner Gas Grill BMBRON2-3B / BG2046A3 WARNING FOR YOUR SAFETY: For Outdoor Use Only (Outside any enclosure) WARNING FOR YOUR SAFETY: • Improper Installation, adjustment, alteration, service or maintenance can cause injury or property TEL: 1300 667 146 damage.
-
Page 2: Important Safeguards
THREE BURNERS BARBECUE BG2046A3 Important Safeguards DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a re or an explosion causing damage to property WARNINGS: This Barbecue is for outdoor use only, and should not be used in a A re causing serious injury or damage to property may occur if the building, garage or any other enclosed area. - Page 3 THREE BURNERS BARBECUE BG2046A3 Do NOT touch metal parts of Barbecue until they have completely Keep all electrical cords away from a hot Barbecue. cooled to avoid burns, unless you are wearing protective gear (pot After a period of storage and/or nonuse, check for leaks, burner holders, gloves, BBQ mittens, etc.) obstructions and inspect for any abrasion, wear or cuts to the hose.
-
Page 4: Expanded View
THREE BURNERS BARBECUE BG2046A3 Expanded View PART LIST Part Name Part Name Lid handle heat insulation board Knob Lid handle support Cart rail Thermometer Cart left rail Top hinge Leg seat Lid handle Axle Wheel Warming rack Tank clip Left table Left front leg Right table Left rear leg... - Page 5 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS DO NOT RETURN TO PLACE OF PURCHASE. Step 1 For assistance, call 1.855.200.8445 toll-free. Please have your owner’s manual and model number available for reference. Note: The model number is printed on a label which can be found on the side of the Assembly Tips: 1.
- Page 6 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Attach Left legs(23)(24) on the Left of Cart bottom panel(27) with 2 screws(B) each as Step 3 shown below. b) Ensure all the screws are tightened. M6*15 (X4) a) Attach Right legs(25)(26) on the Right of Cart bottom panel(27) with 2 screws(B) each Step 4 as shown below.
- Page 7 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Attach the 2 Cart rail(17) on to the front and back of the prepared cart with 4 Step 5 Screws(B) each. b) Repeat same for Cart left rail(18). c) Secure all screws properly with a screwdriver. M6*15 (X12) a) Insert the Axle(20) through the right side legs as shown.
- Page 8 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Attach the Tank clip(22) into the right side legs as shown Step 7 a) Turn over the Firebox(13) on the a soft cushion. Step 8 b) Attach Firebox heat insulator bottom(14) with 4 screws(B) each as shown below. (The track on the outside) M6*15 (X4)
- Page 9 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) Step 9 a) Attach Bottom hinge(12) at the back of rebox with 2 screws(C) each as shown below. M6*40 (X4) a) Attach Knob(16) as shown below. Step 10...
- Page 10 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) Step 11 a) Put the Firebox(13) onto the prepared cart. b) Secure the Firebox(13) to the cart with side clip on each of the leg as shown below. a) Attach Top hinge(4) on the back of Lid(6) with 2 screws(B) each as shown below. Step 12 M6*15 (X4)
- Page 11 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Install the Lid handle(5) onto the Lid(6) with 2 Lid handle support(2), 1 lid handle Step 13 below. b) Ensure all the screws are tightened. M6*75 (X2) Ø 6.2 x Ø 12x1.0(X2) Ø...
- Page 12 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Align the hinges and put the prepared Lid(6) onto the Firebox(13) Step 15 b) Insert the Hinge Axis(H) through the hinges with Wave pin(I) as shown below. c) Ensure the Hinge Axis(H) pass through all the holes. HINGE-AXIS (X2) WAVE PIN (X2) a) Place the Warming rack (7) into the rebox as shown below, putting the prongs into the...
- Page 13 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Attach the table supports (28)(29) on each side with screw(B) as shown below. Step 17 M6*15 (X8) a) Attach Left(8) and Right(9) table on each side with screw (J) as shown below. Step 18 M6*17 (X4)
- Page 14 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) Step 19 a) Insert the Grease cup(15) onto Firebox heat insulator bottom (14). Step 20 *Timely cleaning is required...
- Page 15 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) a) Place gas tank on the tank slot at the right side and secure with cylinder clip (22). Step 21 Step 22 a) Connect the regulator to the gas cylinder by tightening in a clockwise direction as shown below.
- Page 16 THREE BURNERS BARBECUE BG2046A3 ASSEMBLY INSTRUCTIONS (CONTINUE) USING THE BARBECUE TABLETOP UNIT Step 23 a) Unlock the clip on each of the leg as shown below. b) Detach the Barbecue tabletop unit from the cart. Step 24 a) Place the Barbecue tabletop unit on table with the distance requirement as shown in below.
- Page 17 THREE BURNERS BARBECUE BG2046A3 a) Connect the regulator to the gas cylinder by tightening in a clockwise direction as Step 25 shown below. 27.5 in Seasoning Barbecue Step 26 Important: season your Barbecue cooking surface every time you use it. Chefs at Japanese steakhouses and short-order restaurants do it all the time, and it is critical for you to do it too.
-
Page 18: Disconnecting Lp Gas Tank
THREE BURNERS BARBECUE BG2046A3 USING, CONNECTING & DISCONNECTING LP GAS TANK The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code CSA B149.1, or Propane Storage and Handling Code, CSA B149.2, or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and CSA 2240 RV Series, Recreational Vehicle Code as applicable. -
Page 19: Operating Main Burners
THREE BURNERS BARBECUE BG2046A3 OPERATING INSTRUCTIONS (CONTINUE) Figure 2 Tank/Gas Line Connection 1. Make 2-3 oz. of leak detection solution by mixing one part liquid dish APAGADO washing soap with three parts water. 2. Make sure control knobs are in the “ OFF” position (Figure 2). 3. -
Page 20: Controlling Flare-Ups
THREE BURNERS BARBECUE BG2046A3 OPERATING INSTRUCTIONS (CONTINUE) Figure 6 4. Turn LP gas tank valve to “OPEN. ” 5. Push and turn any control knob to (HIGH). The burner should light. If it does not, repeat up to three times. Flame Slight Yellow... -
Page 21: Cleaning And Care
THREE BURNERS BARBECUE BG2046A3 CLEANING AND CARE CAUTION: 1. All cleaning and maintenance should be done when Barbecue is cool and with the fuel supply disconnected. 2. Do NOT clean any Barbecue part in self-cleaning oven. The extreme heat will damage the nish. 3. -
Page 22: Before Storing
THREE BURNERS BARBECUE BG2046A3 CLEANING AND CARE Clean venturi of each burner with small bottle brush or compressed air. Remove all residue and dirt from burner surface. 10. Clean any clogged ports with a sti wire (such as an opened paper clip). 11. - Page 23 THREE BURNERS BARBECUE BG2046A3 CLEANING AND CARE First Use 1. Light Barbecue per “Lighting” section. 2. Keep burners on (HIGH) for 15 minutes. 3. Turn Barbecue o per “Turning O ” section. 4. Allow Barbecue to cool, but still be slightly warm. 5.
-
Page 24: Product Registration
THREE BURNERS BARBECUE BG2046A3 PRODUCT REGISTRATION For faster warranty service, please register your product immediaterly. REPLACEMENT PARTS For replacement parts, please contrct Captivate Brands USA, Inc. via 1-855-200-8445 WARRANTY Captivate Brands USA, Inc. warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, the product’s components shall be free from defects in material and workmanship, except for the cooking surface which is not covered by the Limited Warranty. -
Page 25: Troubleshooting
THREE BURNERS BARBECUE BG2046A3 TROUBLESHOOTING Problem Possible Cause Prevention/Cure Make sure regulator is securely attached to the LP gas tank per “Installing LP Gas Tank,” LP gas tank valve is closed then turn LP gas tank valve to “OPEN” Exchange, re ll or replace LP gas tank LP gas tank low or empty 1.
