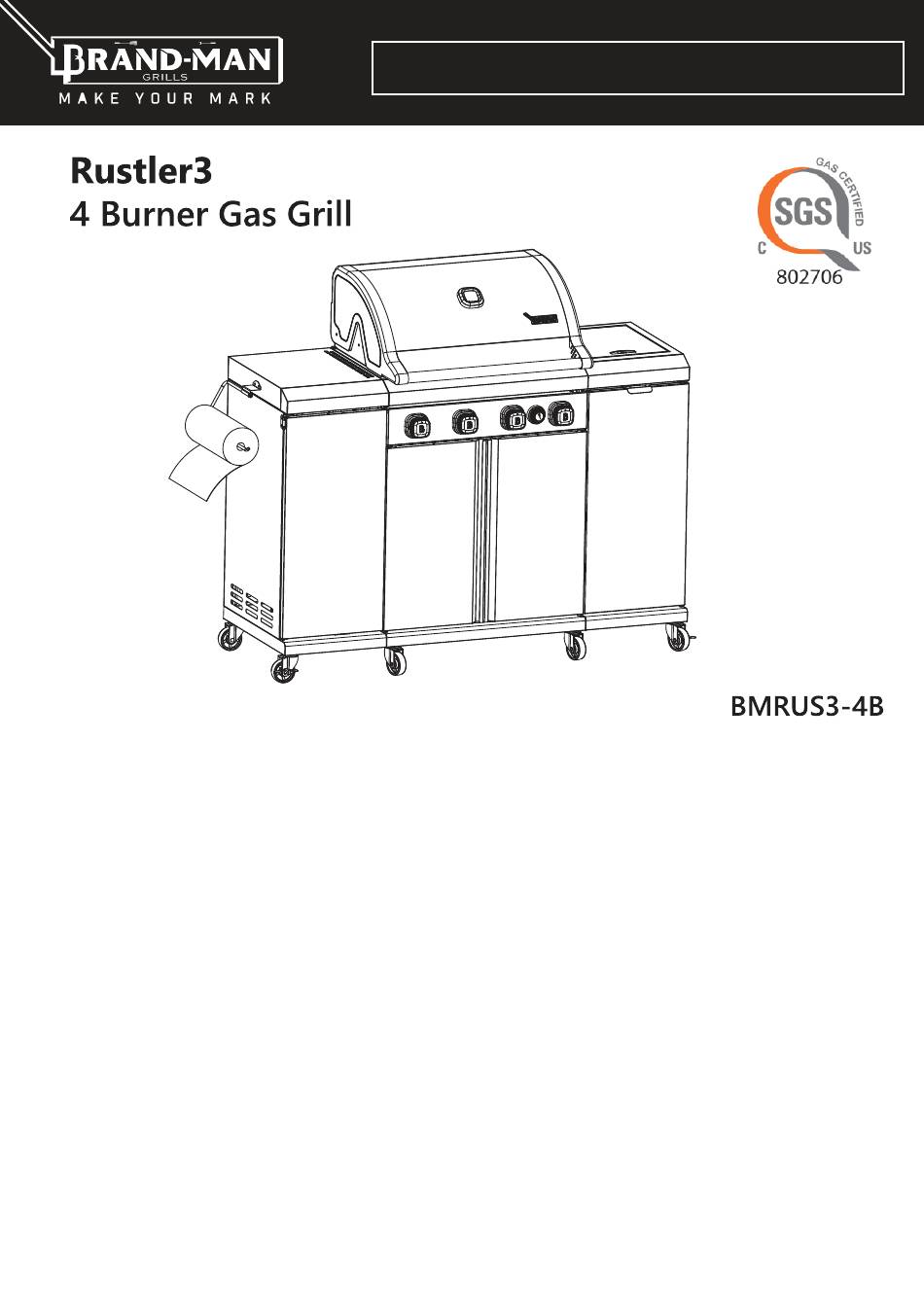

BRAND-MAN Rustler3 Series Owner's Manual

4 burner gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Important: Keep this Owner's Manual for convenient reference and for part replacement.
Read this Owner's manual carefully and be
sure your gas grill is properly assembled,
installed and maintained. Failure to follow
these instructions could result in serious
injury and/or property damage.
Please make sure the cylinder valve
connection device shall properly and
safely connected with the connection
device attached to the inlet of the
pressure regulator.
Series
OWNER'S MANUAL
For Outdoor Use Only
Captivate Brands USA, Inc.
25541 Arctic Ocean Drive,
Lake Forest, CA.92630
If you have any questions or problems,
you can contact our customer service at
1-855-200-8445 ext 102 or
service@brandmangrill.com
from 9:00 AM - 5:00 PM Monday to Friday.
(Pacific). All emails and voice-mail calls
will be answered within 24 hours.
1
Model:
Item:
BG2411D4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rustler3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for BRAND-MAN Rustler3 Series

Summary of Contents for BRAND-MAN Rustler3 Series

  • Page 1 OWNER’S MANUAL Series Model: Item: BG2411D4 Important: Keep this Owner’s Manual for convenient reference and for part replacement. For Outdoor Use Only Read this Owner’s manual carefully and be sure your gas grill is properly assembled, Captivate Brands USA, Inc. installed and maintained.

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE SAVE THESE INSTRUCTIONS DANGER WARNING Do not store or use gasoline or If you smell gas: other flammable liquids or Shut off gas to the appliance. vapors in the vicinity of this or Extinguish any open flame.
  • Page 3 pressure of 11” water column (W.C.) for connection SAFETY PRECAUTIONS to an LP gas cylinder. regulator and the hose assembly The LP gas cylinder must be constructed and supplied with your gas grill. Replacement regulators marked in accordance with specifications of the and hose assemblies must be those specified in this U.S.

  • Page 4: Burner Flame Check

    WARNING Burner Flame Check A strong gas smell, or the hissing sound of gas Flame Slight Yellow indicates a serious problem with your gas grill or the LP gas cylinder. Failure to immediately follow Slight the steps listed below could result in a fire or Blue explosion that could cause serious bodily injury, Burner...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Safety Precautions ----------------------------------2-4 Beware of Flash-Back----------------------------------4 Burner Flame Check----------------------------------- 4 Model Description------------------------------------- 6 Tools Required for Assembly------------------------ 6 Parts Diagram------------------------------------------- 6 Parts List-------------------------------------------------- 7 Hardware ------------------------------------------------ 7 Assembly Steps -------------------------------------8-21 Connecting LP Gas cylinder to LP Grill --------- 22 Operating Instructions ------------------------- 22-2 Cleaning and Care ------------------------------- 2 -2 Warranty ------------------------------------------------ 2...

  • Page 6: Tools Required For Assembly

    4 Burners Gas Grill Description 4 Burners Gas Grill designed with 4 independently controlled stainless steel burners; The rated power of each main burner is ,000 BTU and a total of ,000 BTU for the Grill; Push and turn ignition system for firing up; Tools Required for Assembly Philips Head Screwdriver (not included) Parts Diagram...

  • Page 7: Parts List

    Parts List Body Assembly Cabinet Internal Panel 1 Grease Pan Cabinet Internal Panel 2 Grease Cup Support Cart Left Door Grease Cup Cart Right Door Heat Shield 2pcs Hook Cooking Grill Right Cabinet Bottom Panel Hotplate Side Cabinet Back Panel 2pcs Warming Rack Right Cabinet Side Panel...

  • Page 8: Assembly Steps

    Assembly Steps Install the Cylinder Fixture Support (21) onto the Cart Bottom Panel (12) and secure Step 1 with two screws (A) as shown in Figure 1. Attach the Cylinder Fixture (22) through the installed Cylinder Fixture Support (21) in Figure 2. Attach the Left Cabinet Bottom Panel (33) and Right Cabinet Bottom Panel (28) onto each side of the Cart Bottom Panel (12) with two screws (A) each side as shown in Figure 3.
  • Page 9 Assembly Steps Turn the bottom cart upright and install the Magnet Panel (14) with two screws (B) at Step 3 the front middle of the bottom cart. Install further one Side Cabinet Magnet Panel (37) with two screws (B) on each side of the front bottom cart as shown below.
  • Page 10 Assembly Steps Attach the Cart Back Panel (17) onto the back of the bottom cart and between the Step 5 Cart Left Side Panel and Cart Right Side Panel. Secure the Cart Back Panel (17) with four screws (B). M4X12 ... 4PCS Install the Cart Front Upper Beam (18) together with the Cart Frame Left Fixture (19) Step 6 and Cart Frame Right Fixture (20) on each side with four screws (C).
  • Page 11 Assembly Steps Attach on the Cart Left Door (25) and Cart Right Door (26) onto the cart as shown Step 7 below. With the cart door open, install Cabinet Internal Panel 1 (23) and Cabinet Internal Step 8 Panel 2 (24) inside the cart with four screws (A) as shown. M6X12 ...
  • Page 12 Assembly Steps With the assistant of another person, put on the Body Assembly (1) onto the cart Step 9 prepared in Step 8. Secure the Body Assembly (1) onto the cart top with four screws (A). M6X12 ... 4PCS Step 10 four screws (A) as shown below.
  • Page 13 Assembly Steps Secure further the side shelves with two more screws (A) each side near to the control Step 11 panel as shown below. M6X12 ... 4PCS Remove the trivet and side burner out as in Figure 1 and 2. Put them aside. Step 12 Install on the side burner valve onto the side burner valve support as in Figure 3.
  • Page 14 Assembly Steps Install one Side Cabinet Rack Panel (29) with two screws (B) on each side of the cart Step 13 underneath the side shelf as shown below. M4X12 ... 4PCS Attach on the Right Cabinet Side Panel (30) on the side of the cart with two Step 14 screws (A) and two scrws (B) as shown below.
  • Page 15 Assembly Steps On the left side, install on the Left Cabinet Door Pin Support (35) and a Side Door Step 15 Stopper (43) with two screws (A) each as shown. Attach on the Side Cabinet Side Magnet Panel (38) with two screws (B) on the left side of the cabinet as shown.
  • Page 16 Assembly Steps Step 17 Attach on the Left Cabinet Door Leg (41) onto the Left Cabinet Door Leg Support (39) and secure it with four screws (D), eight flat washers (F) and four nuts (E) as shown..8PCS .
  • Page 17 Assembly Steps Install the Hook (27) with a screw (A) inside the cabinet on the right side of the Step 19 cabinet. The left cabinet door can be fold in and out as shown below. M6X12 ... 1PC Install the Paper Towel Holder (9) on the left side of the cart and secure Step 20 it with two screws (A) as shown below.
  • Page 18 Assembly Steps Install the Right Cabinet Hook Support (31) onto the Right Cabinet Door Panel (32) Step 21 with two screws (B) as shown below. At the top of the right cabinet door install the Side Cabinet Door Handle (36) with two screws (B) as below.
  • Page 19 Assembly Steps Install the Grease Cup Support (3) onto Grease Pan (2) with four screws (B). Step 23 shown below. M4X12 ... 4PCS Put in the Grease Cup (4) onto the grease cup support as shown. Step 24...
  • Page 20 Assembly Steps Place the two Heat Shield (5) inside the body above the burners. The heat shield are Step 25 to be positioned under the Cooking Grill (6), NOT under the Hotplate (7). Place the Cooking Grill (6) and Hotplate (7) above the burners and heat shield, as shown.

  • Page 21: Operating Instructions

    USING, CONNECTING & DISCONNECTING LP GAS TANK The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code CSA B149.1, or Propane Storage and Handling Code, CSA B149.2, or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and CSA 2240 RV Series, Recreational Vehicle Code 20 lb...
  • Page 22 OPERATING INSTRUCTIONS (CONTINUE) Checking for leaks 1. Make two to three oz. of leak solution by mixing one part liquid dishwashing soap with three parts water. 2. Make sure control knobs are in the “OFF” position. 3. Spray some solution on the tank valve up to the regulator connection. 4.
  • Page 23 OPERATING INSTRUCTIONS (CONTINUE) Figure D Flame Slight Yellow webs can clog the burner/venturi tube. A clogged burner tube can Slight Blue CAUTION: Do NOT use non-stick cooking sprays because they contain Burner Dark a lot of water and can burn onto the Barbecue, damaging the surface. Blue CAUTION: Do NOT use corn oil as it contains a high level of sugar, which can carmelize and burn onto the surface.
  • Page 24 OPERATING INSTRUCTIONS (CONTINUE) Operating Charcoal Grill charcoal, charcoal/wood mixture, lump charcoal or cooking wood. First Use 1. Make sure all labels, packaging and protective films have been removed from the grill. 2. Remove manufacturing oils before cooking on this grill for the first time, by operating the grill for at least 15 minutes with the lid closed.

  • Page 25: Cleaning And Care

    CLEANING AND CARE CAUTION: 1. All cleaning and maintenance should be done when Barbecue is cool and with the fuel supply disconnected. Notices 1. This Barbecue should be thoroughly cleaned and inspected on a regular basis. 2. Abrasive cleaners will damage this product. 3.
  • Page 26 CLEANING AND CARE Clean venturi of each burner with small bottle brush or compressed air. Remove all residue and dirt from burner surface. 10. Clean any clogged ports with a stiff wire (such as an opened paper clip). 11. Inspect burners for any damage (cracks or holes). If damage is found, replace with new burner(s) from manufacturer.

  • Page 27: Warranty

    Warranty Two-Year Limited Warranty This warranty is non-transferable and does not cover failures due to misuse of improper installation or maintenance. This warranty is for replacement of defective parts only. We are not responsible for incidental or consequential damage. This warranty does not cover corrosion or discoloration after the grill is used, or lack of maintenance, hostile environment, accidents, alterations, abuse or neglect.

  • Page 28: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure Make sure regulator is securely attached to the LP gas tank per LP gas tank valve is closed “Installing LP Gas Tank,” then turn LP gas tank valve to “OPEN” LP gas tank is low or empty Exchange, refill or replace LP gas tank Turn LP gas tank valve to “CLOSED”...
  • Page 29 Troubleshooting Problem Possible Cause Prevention/Cure High or gusting winds Do not use grill in high winds Low on LP Gas Exchange, refill or replace LP gas tank Flame goes out Overfilling prevention device may have been Refer to “Sudden drop in gas flow or reduced flame height” (see above) activated Grease buildup...
  • Page 30 Captivate Brands USA, Inc. 25541 Arctic Ocean Drive, Lake Forest, CA.92630 If you have any questions or problems, you can contact our customer service at 1-855-200-8445 ext 102 or service@brandmangrill.com from 9:00 AM - 5:00 PM Monday to Friday. (Pacific). All emails and voice-mail calls will be answered within 24 hours.

This manual is also suitable for:

Rustler3 bmrus3-4bBg2411d4
