E2S SONFL1X Series Instructions/Service Manual

INSTRUCTION & SERVICE MANUAL

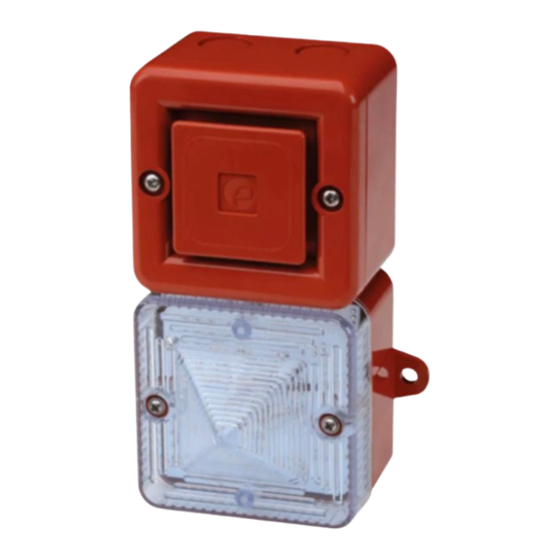

SONFL1X Range - Alarm Horn & Xenon Strobe Beacon
SONFL1X
Combined Sounder & Xenon Beacon
10 Selectable Tones
2 Stages (24V dc only)
5J Xenon Flash Tube
Three Modes: Flashing 1Hz (AC & DC)
Flashing 1.5Hz and Double Strike (DC Units Only)
1Hz Flashing mode CPR / VdS approved
24Vdc version CPR / VdS / MED approved
CE, UKCA, EAC Approved
UL / cULus Approved
CPR / MED Approval (24V dc Only)
IP Rating: Type 3R / 13, IP66
Model No. Nominal Voltage
SONFL1XDC012...[X]/[Y] 12V dc
SONFL1XDC024...[X]/[Y] 24V dc
SONFL1XAC024...[X]/[Y] 24V ac 50/60Hz
SONFL1XAC115...[X]/[Y] 115V ac 50/60Hz
SONFL1XAC230...[X]/[Y] 230V ac 50/60Hz
*Current at nominal voltage on Tone 2
[X] Denotes Housing Colour: R = Red; G = Grey; W = White
[Y] Denotes Lens Colour: A = Amber; B = Blue; C = Clear; G = Green; M = Magenta; R = Red; Y = Yellow
Note: CPR Approved Units only available with Clear Lens
5
0.5 - 1.5mm²
Use suitable conduit or cable glands with
suitable IP or type rating
Attention: Installation must be carried out by an electrician in compliance with the latest codes and regulations.
Attention: L'installation doit être effectuée par un électricien conformément aux derniers codes et réglementations.
Achtung: Die Installation muss von einem Elektriker gemäß den neuesten Vorschriften und Bestimmungen durchgeführt werden.
Attenzione: L'installazione deve essere eseguita da un elettricista in conformità con i codici e le normative più recenti.
Atención: La instalación debe ser realizada por un electricista de acuerdo con los últimos códigos y regulaciones.
Atenção: A instalação deve ser realizada por um eletricista de acordo com os códigos e regulamentos mais recentes.
Внимание: установка должна выполняться электриком в соответствии с последними нормами и правилами.
Attention: Disconnect from power source before installation or service to prevent electric shock
Attention: Débranchez-le de la source d'alimentation avant l'installation ou l'entretien pour éviter tout choc électrique.
Achtung: Vor Installation oder Wartung von der Stromquelle trennen, um einen Stromschlag zu vermeiden.
Attenzione: scollegare dall'alimentazione prima dell'installazione o dell'assistenza per evitare scosse elettriche.
Atención: desconéctelo de la fuente de alimentación antes de la instalación o el servicio para evitar descargas eléctricas.
Atenção: Desconecte da fonte de alimentação antes da instalação ou serviço para evitar choque elétrico
Внимание: отключите от источника питания перед установкой или обслуживанием, чтобы предотвратить поражение
электрическим током.
No liability is accepted for any consequences of the use of this document. The technical specifica on of this unit is subject to change without no ce due to our policy of con nual
product development. All dimensions/weights are approximate. This unit is sold subject to our standard condi ons of sale, a copy of which is available on request.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
Dimensions: 172 x 86 x 83mm
Cable Entry: 2-off M20 x 1.5mm
Temp: -40°C to +55°C
Unit weight: 0.46Kg
SONFL1X
Sound Pressure Level dB(A)
Horn Nom. Beacon Nom.
Voltage Range
Current Current
Max
10-14V dc 25mA* 500mA
20-28V dc 25mA* 250mA
100.0 @ 1m
+/- 10% 40mA 300mA
91.0 @ 3m
+/- 10% 27mA 70mA
+/- 10% 39mA 35mA

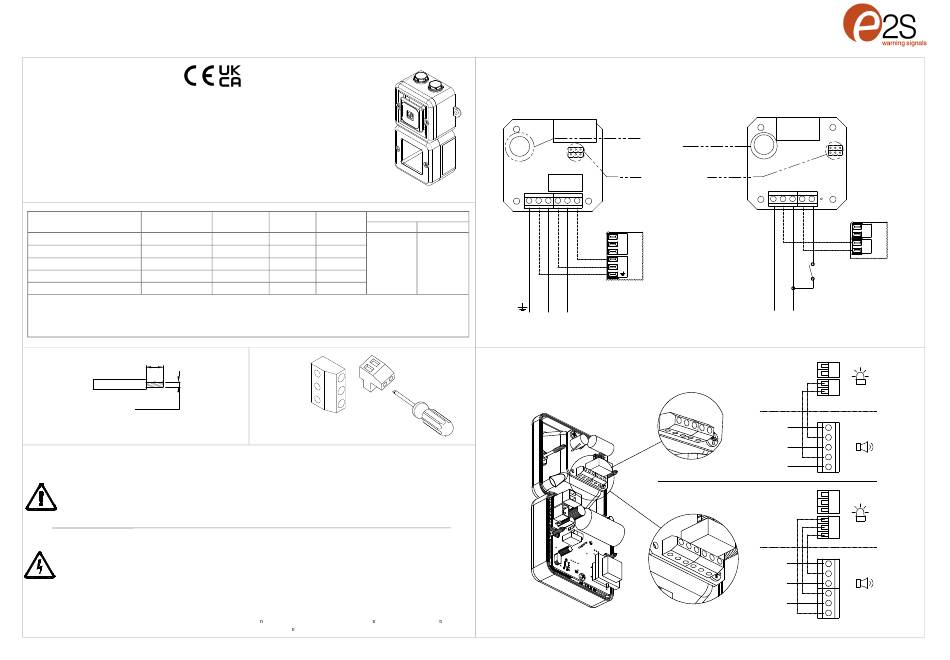

Terminal Connections
sales@e2s.com e2s.com
See D242-06-501 - Schematic Wiring
AC Circuit
Nominal
99.0 @ 1m
90.0 @ 3m
~N ~L
0.4Nm
Page 1 of 4
Volume must be set to
DC Circuit
max, for sounder to be
compliant to EN54-3
Volume
Control
Tone Selection
(See Table)
~L
~N
BEACON
TERMINALS
+ -
DC
+ve IN
-ve IN
Stage 2
AC
Earth IN
Neutral IN
Live IN
+
-
BEACON
S2
TERMINALS
SWITCH
S2 Denotes Stage 2
Stage switches are
customer supplied
+
-
+
-
+
+
-
-
S2
L
N
E
L
N
E
E
E
N
N
L
L
D242-00-501-IS_Issue_4 - 31/10/2024
