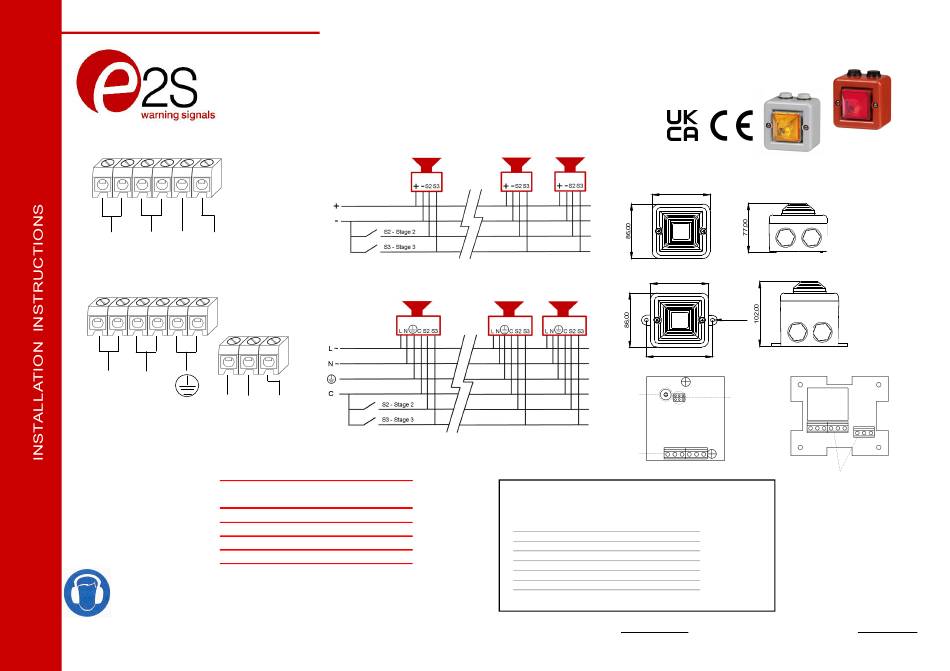

E2S Sonora SON4B Installation Instructions

-
+
S2 S3
Stage 2 Stage 3
L~
N~
C
S2
Stage 2
Voltage : 24vdc
Voltage range : +/-25%
Current mA : 95mA*
* Current at nominal voltage on Tone 1.
>100dB(A)@1m
No liabil ity i s acce pted for an y con sequen ce of the u se of this docume nt. T he technica l spec ifica tion o f thi s unit is
ISN0607-B
sub ject t o chan ge wi thout notice due to our policy of contin ual product devel opment . All dimen sions are
app roxima te.Thi s uni t is sold su bject to ou r stan dard condit ions of sal e, a copy o f which is a vaila ble on reque st.
SON4B - 10 Tone Sounder & Bulb Beacon 'Sonora'
24vdc
24,115, 230vac
S3
Stage 3
24vac 115vac 230vac
50/60Hz 50/60Hz 50/60Hz
+/-10% +/-10% +/-10%
180mA 50mA 30mA
Volume
Control
DC Terminals
SON4B 24vdc unit is CPD Compliant. EN54-3 Type B
EN60529: IP66
Stage1 Fre que ncy
tone De s cr iption
Tone 1 800/1000Hz @ 0.25 sec Alternating
Tone 2 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
Tone 3 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.
Tone 4 544Hz (100mS)/440Hz (400mS) - NF S 32-001
Tone 5 1000Hz Continuous
Tone 8 2400/2900 @ 50Hz sw eeping
Please Note: Stage 2 & 3 are not VDS Approved
and VDS Approved for Wall Mounting Only
Tel : +44(0)2087438880 mail : sales@e2s.com
SON4 Bulb
86,00
SON4 Bulb DC
86,00
SON4 Bulb AC
Ø6,00
98,00
Tone Selection
(See Table)
PCBA (DC/AC)
AC Terminals
Beacon is not compliant.
The tones listed
have been tested to
EN54-3 and are
compliant with the
Construction
Pro duct D irective
89/106/EEC.
EN54-3 te st data :
document D0665
Fax : +44(0)2087404200 web : www.e2s.com
Insert cable through suitably
sized M20 cable gland
(Customer supplied)
PCBA
(AC)
