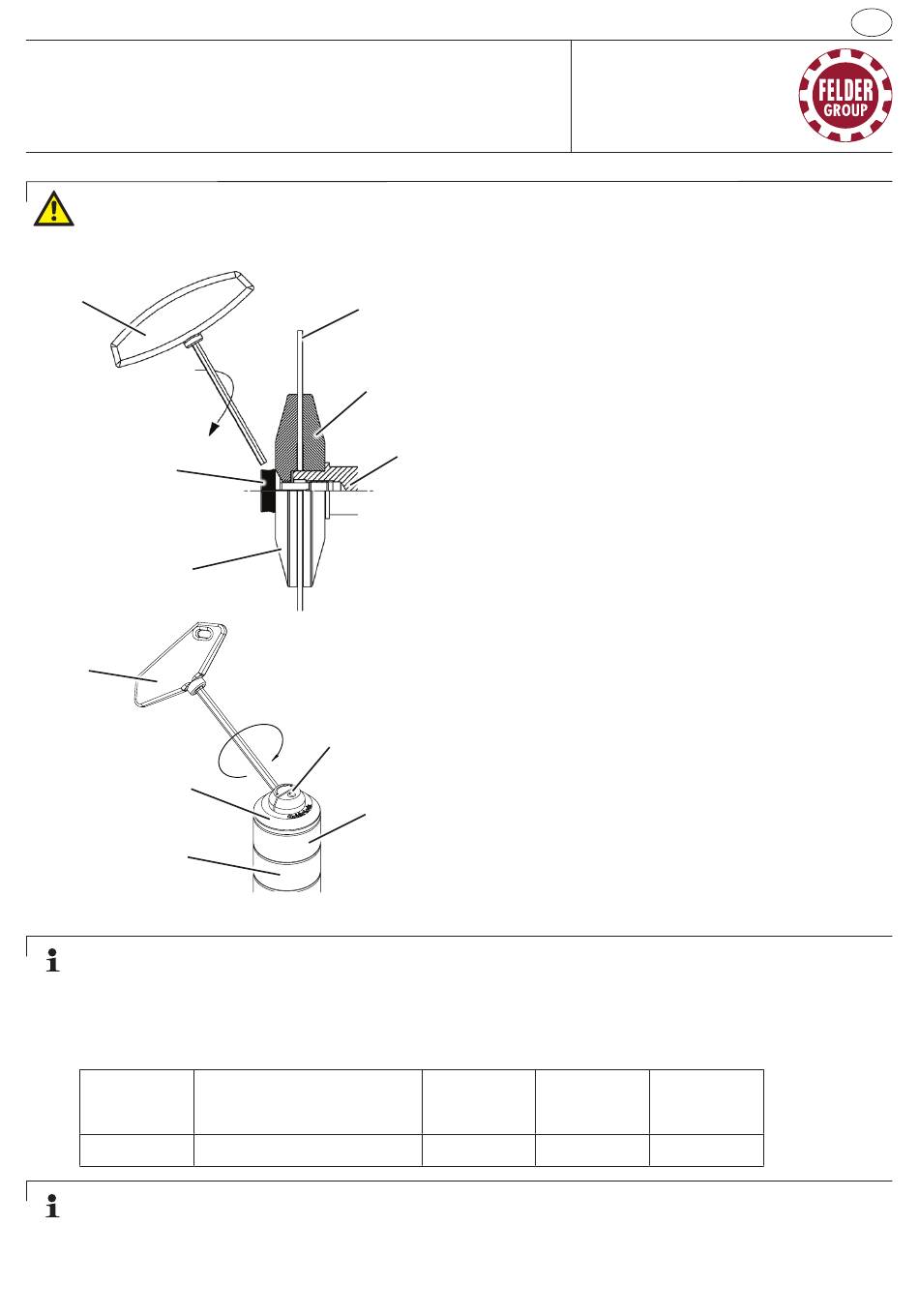

Felder Quick-Lock Saw Blade Quick-Change System Manual page 4

Important Notices:
Quick-Lock Saw Blade Quick-Change System
Quick-Lock Spindle Shaft Quick Change System
CAUTION! Risk of injury!
Be wary of sharp edges to avoid cutting yourself, in particular when changing the tooling.
&
#
"
&
$
"
Note: The screw clamp in the flange is turned into the machine spindle to the stop by hand. The tool clamping force is
produced by the expansion effect of the screw clamp. To do this, the grub screw with hexagon socket head must be
turned in with the T-handle Allen key.
The grub screw on the screw clamp marked red is fixed and may not be turned!
Recommended tightening torques of the grub screw on the screw clamp:
604-107 K 940, kappa 400
604-108 F 700, F 900, profil 45
604-112 K 945, kappa 450
604-106 kappa 550, kappa 590
Note: Screw clamp: Note the direction of rotation!
Spindle moulder tooling: Clockwise
Panel Saw: Anti-clockwise
Dok.ID: 604007-909_02 • Englisch • 10.11.2023
Inserting the tool:
1. All of the contact surfaces including the removable
!
2a.Place the saw blade onto the saw blade arbor
$ 2b.Place the spindle moulder tool as low as possible onto
3. Place the removable flange on the end of the shaft
4. Tighten the screw clamp on the shaft by hand until it
%
5. The final clamping force is created by tightening the grub
Removing the tool:
1. Release by loosening the grub screw using an Allen key.
2. Unscrew the screw clamp from the shaft end by hand
3a.Remove the saw blade from the saw arbor.
3b.Remove the spindle moulder tooling when changing or
#
!
"
!
#
$
%
&
SW = 4
SW = 4
FELDER KG
KR-Felder-Straße 1
A-6060 HALL in Tirol, AUSTRIA
Tel: +43 5223 5850 0
E-Mail: info@felder-group.com
Internet: www.felder-group.com
flange, the fixed flange, clamping screw, the saw blade
arbor and saw blade must be clean and dust free.
the spindle moulder so as to avoid vibrations
reaches the stop.
screw using an Allen key. (rotate clockwise)
(turn approx two times in an anti-clockwise direction)
and remove it together with the removable flange.
removing the tools.
Saw blade
Removable flange
Screw clamp
Fixed flange
Saw blade arbor
Hex key
M10
M12
5 - 8 Nm
11-13 Nm
UK
