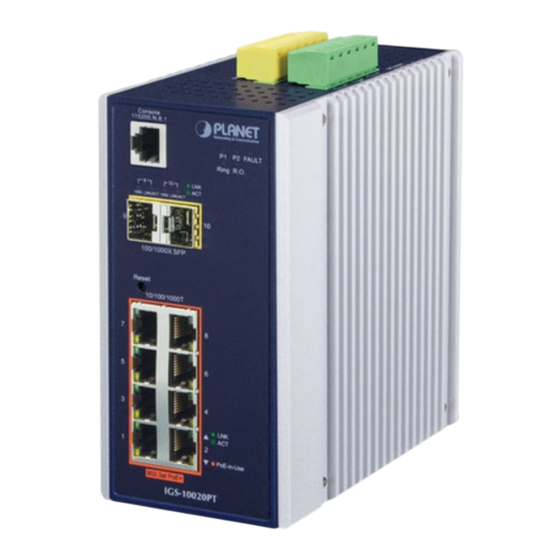

L2+ Industrial 8-Port 802.3af/at PoE
Managed Switch
IGS-10020PT/IGS-10020HPT
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGS-10020PT and is the answer not in the manual?

Questions and answers

Related Manuals for Planet IGS-10020PT

Summary of Contents for Planet IGS-10020PT

  • Page 1 L2+ Industrial 8-Port 802.3af/at PoE Managed Switch IGS-10020PT/IGS-10020HPT Quick Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ................. 3 2. Requirements ..................4 3. Wiring the Power Inputs ............... 5 3.1 Grounding the Device ..............7 4. Terminal Setup ..................8 4.1 Logging on to the Console .............. 9 4.2 Configuring IP Address ..............10 5.

  • Page 3: Package Contents

    1. Package Contents Thank you for purchasing PLANET L2+ Industrial Managed Gigabit PoE+ Switch. The descriptions of these models are as follows: Model RJ45 Ports PoE+ Ports SFP Ports IGS-10020PT IGS-10020HPT “Industrial Managed PoE+ Switch” mentioned in this Quick Installation Guide refers to the above models.

  • Page 4: Requirements

    2. Requirements z Workstations running Windows 2003/2008/2012/7/8/10/11, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. z Serial Port Connection (Terminal)  The above Workstations come with COM Port (DB9) or USB-to-RS232 converter.  The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003, putty or tera term.

  • Page 5: Wiring The Power Inputs

    Max. Fault Alarm Loading: 24V, 1A 1 2 3 4 5 6 DC Input: 48-54V , 6A max. Figure 3-1: IGS-10020PT Upper Panel z IGS-10020HPT: DC 12-48V DI1 DO0 DO1 1 2 3 4 5 6 Max. fault loading: 24V, 1A...
  • Page 6 2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Power 2 (DC1) (DC2) Model Positive (+) Pin Negative (-) Pin IGS-10020PT Pin 1 / 5 Pin 2 / 6 IGS-10020HPT The wire gauge for the terminal block should be in the range from 12 to 24 AWG.

  • Page 7: Grounding The Device

    3.1 Grounding the Device Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device. Earth Ground DI1 DO0 DO1 1 2 3 4 5 6 Max. Fault Alarm Loading: 24V, 1A 1 2 3 4 5 6 DC Input: 48-54V...

  • Page 8: Terminal Setup

    4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type serial (console) port of the Industrial Managed PoE+ Switch. The console port of the Industrial Managed PoE+ Switch is DCE already, so that you can connect the console port directly through PC without the need of null modem.

  • Page 9: Logging On To The Console

    The following console screen is based on the IGS-10020HPT. The display of the IGS-10020PT is the same as that of the IGS- 10020HPT. Then, the following message asks to log in user name and password as shown in Figure 4-3. Please enter the factory default user name “admin” and password “admin”.

  • Page 10: Configuring Ip Address

    4.2 Configuring IP Address The Industrial Managed PoE+ Switch is shipped with default IP address shown below: IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Industrial Managed PoE+ Switch, please use the procedure as follows: ...
  • Page 11  Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 4-5. The previous command would apply the following settings for the Industrial Managed PoE+ Switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 Figure 4-5: Configuring IP Address Screen 4.
  • Page 12 If the IP is successfully configured, the Industrial Managed PoE+ Switch will apply the new IP address setting immediately. You can access the Web interface of the Industrial Managed PoE+ Switch through the new IP address. If you are not familiar with the console command or the related parameter, enter “help”...

  • Page 13: Starting Web Management

    5. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed PoE+ Switch. Note the Industrial Managed PoE+ Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address.

  • Page 14: Logging In To The Industrial Managed Poe+ Switch

    “admin” and password “admin” (or the password you have changed before) as shown in Figure 5-2. Default IP Address: 192.168.0.100 Default User Name: admin Default Password: admin Figure 5-2: Web Login Screen The following web screen based on IGS-10020HPT is the same as that of IGS-10020PT.
  • Page 15 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3: Web Main Screen of Industrial Managed PoE+ Switch The Switch Menu on the top of the Web page lets you access all the commands and statistics the Industrial Managed PoE+ Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “QoS”,...

  • Page 16: Saving Configuration

    If you are not familiar with Switch functions or the related parameter, press “Help icon” anytime on the Web page to get the help description. Now, you can use the Web management interface to continue the Switch management or manage the Switch by console interface. Please refer to the user’s manual for more.
  • Page 17 3. Or the other way to save the setting is to Click Maintenance, Save Startup Config. Figure 5-7: Save Config -- Maintenance...

  • Page 18: Recovering Back To Default Configuration

    192.168.0.xx and default password. Be noted that all the previous setups will be disappeared after the factory default reset is made. 1G/2.5G LNK/ACT LNK/ACT Reset Button IGS-10020PT Reset Figure 6-1: IGS-10020PT Reset Button Console 115200,N,8,1 P1 P2 Fault Ring R.O. 1G/2.5G LNK/ACT 1G/2.5G...

  • Page 19: Customer Support

    7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQs: http://www.planet.com.tw/en/support/faq Switch support team mail address: support@planet.com.tw IGS-10020PT/IGS-10020HPT User’s Manual:...
