Summary of Contents for Koala KIRRIBILLI

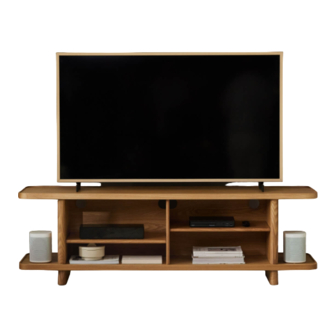

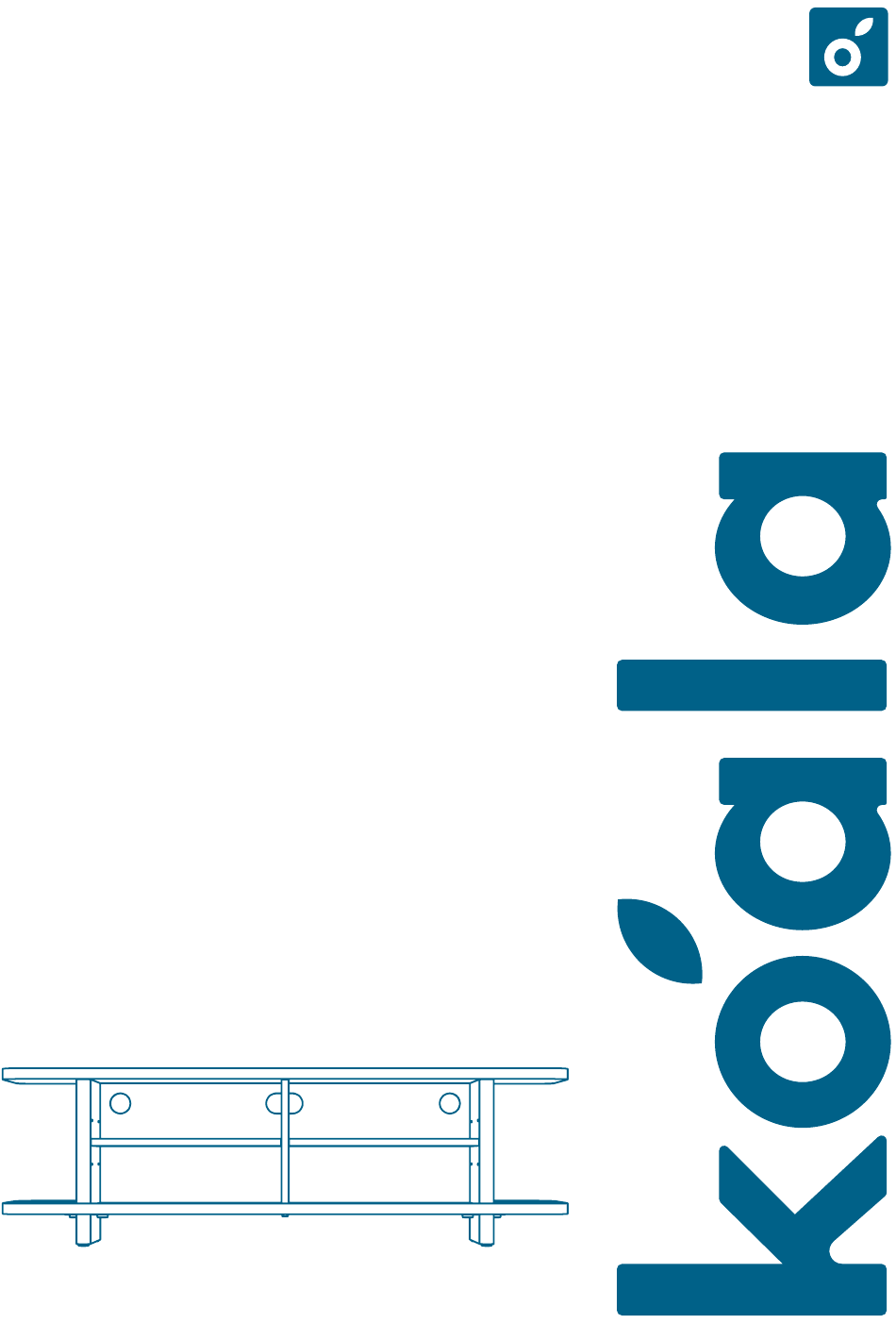

- Page 1 November 2022 Click the button to watch the assembly video KIRRIBILLI TV UNIT...
-
Page 2: What's In The Box
What’s in the box*: Click the button to watch the assembly video *Not to scale Top panel Bottom panel Middle shelf divider Side panel Shelf Back panel... - Page 3 What’s in the box*: Click the button to watch the assembly video *Not to scale Legs Support rod Lever bolt Bottom panel Shelf support Wall lanyard Gumnut Gumnut Wall lanyard Small dowel Large dowel...
- Page 4 Click the button Place the top panel face down to watch the on a flat surface. assembly video Insert the small dowels into the holes shown.
- Page 5 Click the button Screw the support rods to watch the into the top panel. assembly video Slide the side panels over the support rods. NOTE - make sure the grooves align...
- Page 6 Click the button Insert the middle shelf divider by to watch the aligning the panel connectors. assembly video to lock it in, push the divider down and towards the panel groove. Insert the back panel using the grooves in the side and top panel.
- Page 7 Click the button Lower the base panel onto the side to watch the panels and middle divider. assembly video Insert the larger dowels into the holes shown.
- Page 8 Click the button Secure the base panel using the lever to watch the bolts. Once tight, pull and realign assembly video the lever into the direction of the dowels Insert the side support leg using the dowels to align.
- Page 9 Click the button Secure the side support legs using the to watch the Gumnuts provided. assembly video Screw in the bottom panel Gumnuts.
- Page 10 Click the button Flip the TV unit into the upright position. to watch the assembly video Insert the shelf support pins into the desired shelf setting.
- Page 11 Click the button Insert the shelves, making sure to watch the they sit on the support pins. assembly video Fasten the wall mount lanyards to the rear using the Gumnuts provided.
- Page 12 Product Information and Care TIMBER Regular Care (Weekly) • Dust surface with a dry cloth or duster in the direction of the natural grain. • Protect from direct sunlight. Cleaning • Treat spills as soon as possible, wipe down with clean dry cloth. •...
- Page 13 Click the button to watch the assembly video don’t forget to recycle.
