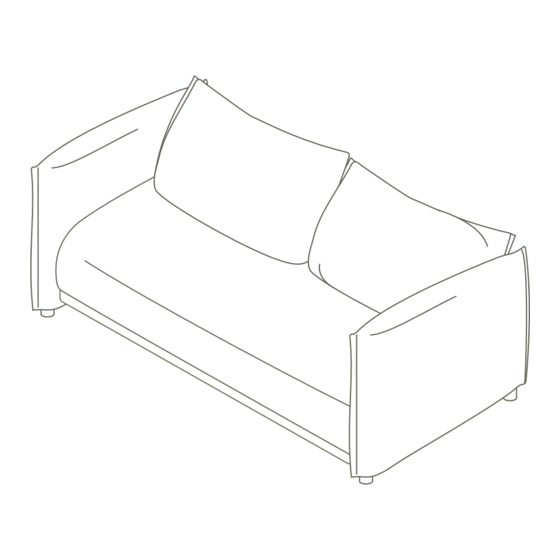

Byron Sofa Bed
Click the button
Click the button
to watch the
to watch the
assembly video
assembly video

Advertisement

loading
Need help?

Need help?

Do you have a question about the BYRON SOFA BED and is the answer not in the manual?

Questions and answers

Summary of Contents for Koala BYRON SOFA BED

  • Page 1 Byron Sofa Bed Click the button Click the button to watch the to watch the assembly video assembly video...
  • Page 2: What's In The Box

    What’s in the box* *Not to scale Easier assembly with two people Pull out rail Front beam Back panel Backrest Arm and Back Backrest Panel cover cover Seat panels Front panel Front panel cover Seat cushion cover Seat cushion...
  • Page 3 What’s in the box* *Not to scale Large Small Backrest gumnut gumnut Stopper Legs pivot pin Backrest Left Right cushion Armrest Armrest Spacer washer Backrest Mattress cushion cover topper **Spare part only - not needed for standard assembly Pull out Pull out top top panel rear panel...
  • Page 4 Partially screw in the two Large Gumnuts onto both Armrests. Fully screw in the Backrest Pivot Pins onto both Armrests.
  • Page 5 Slot the backrest bracket onto the gumnut. Repeat for the other side. Fully tighten the gumnuts on both Armrests.
  • Page 6 Tilt the frame onto the backrest. Partially screw in the Small Gumnuts onto the front of both Armrests.
  • Page 7 Slot the Front Beam onto the Small Gumnuts. Fully screw the Legs onto the Armrests.
  • Page 8 Fully tighten the 2 Small Gumnuts. Remove velcro protective strips on the bottom of the Armrests and Back Panel.
  • Page 9 Carefully rotate the sofabed onto its legs. Insert the Seat Panels onto frame, installing from the back of the board to the front.
  • Page 10 Drape the cover over frame. Using two hands, pull the cover over the Armrests so the corners are neat. Start from the bottom front of both Armrests. Secure the velco to the frame.
  • Page 11 Apply cover to the top of the separate Backrest component. Secure velcro along the top edge. Flip the Backrest upside down and thread the green strap through the corresponding holes in the cover. Then secure the cover using velcro.
  • Page 12 Slot the Backrest onto pivot pins. Start the assembly of the pull out frame by inserting the Front Panel into the Pullout Rails. Ensure the plastic insert is all the way in...
  • Page 13 Align the keyslot holes with the Pull out top panel pins and slide into place. Tilt frame onto the front panel and push the baseboard down to lock. Repeat for second base board.
  • Page 14 Position the L-brackets on the back of the rear baseboard and secure with the Small gumnuts. Fully screw in the Small Gumnut as shown.
  • Page 15 Starting with the ends, secure the front panel cover onto the pull out frame. Roll the pull-out platform under the sofa frame.
  • Page 16 Lay the seat cushion cover fabric side down on the ground. Locate the colored tabs on the Seat cushion.
  • Page 17 Place Seat cushion on top of cover so that tab colors are matching. Secure the velcro on the front and rear of the Seat cushion. matching coloured tabs should be brought together Place topper onto sleep surface and zip closed. Fold the Seat cushion closed.
  • Page 18 Place the Seat cushion onto frame. Attach the buckle to the Backrest loop and pull tight.
  • Page 19 Insert Backrest Cushions into their covers. Place the cushions onto the sofa.
  • Page 20 Converting to bed. Unhook Buckles Converting to sofa. Re-attach Buckles...
  • Page 21: Safety And Use

    Product Information and Care FABRIC Regular Care (Weekly) • Vacuum regularly using low suction. • Protect from direct sunlight. Removable Covers • For correct care of the removable covers, refer to the care label inside covers for additional cleaning instructions. Spot Cleaning •...
  • Page 22 Don’t forget to recycle.
