Summary of Contents for Koala Kirribilli Console

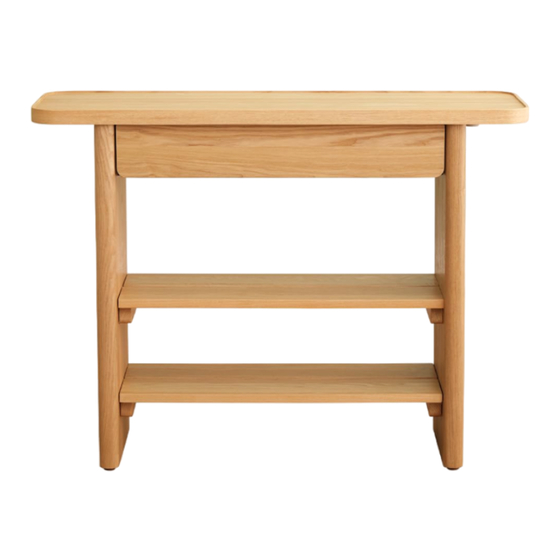

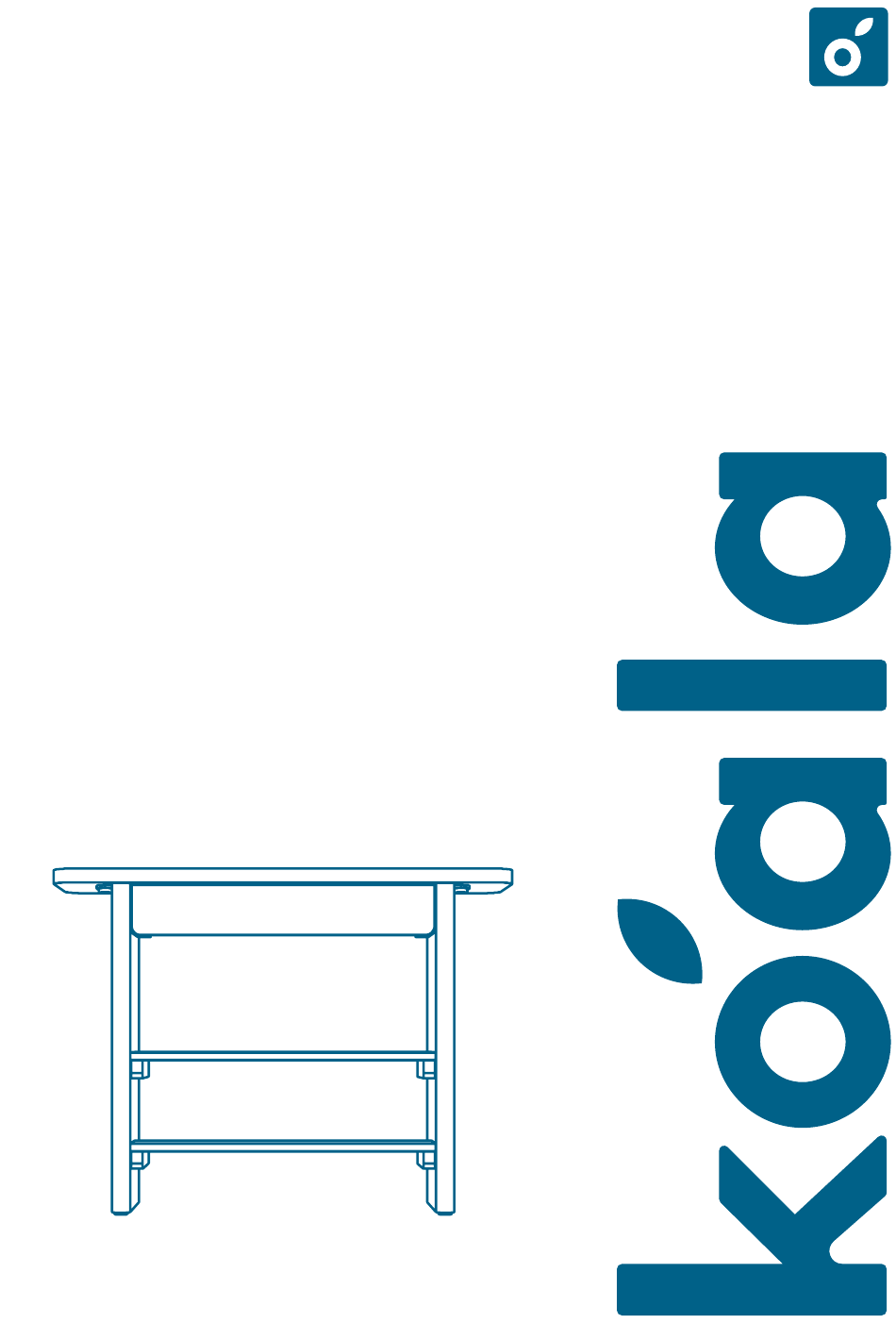

- Page 1 Click the button to watch the assembly video Kirribilli Console...
-
Page 2: What's In The Box
Click the button to watch the assembly video What’s in the box*: *Not to scale top panel back panel drawer gumnut shelf gumnut wall mount lanyard dowel... - Page 3 Click the button to watch the lay the top of the console on a soft surface assembly video to avoid damaging the finish NOTE - Make sure lip is facing down push the dowels into the holes...
- Page 4 Click the button to watch the fix one leg into position using the dowels. assembly video ensure the top panel slot and leg slot align slide in the back panel using the slots in the leg and top panel...
- Page 5 fasten the leg down using the Click the button to watch the gumnuts provided assembly video...
- Page 6 fasten the leg down using the Click the button to watch the remaining gumnuts provided assembly video flip console into the upright position...
- Page 7 Click the button to watch the attach bottom shelf using the brackets. assembly video repeat for top shelf extend the drawer railings out. take note of the rear hooks and the dowel on the drawer runners extend the tabs on both runners...
- Page 8 carefully place the drawer onto the Click the button drawer runner at an angle. to watch the assembly video ensure drawer is securely fitted by gently opening and closing the drawer ensure the rear hook of the runner goes into the hole of the back drawer align hole at front of drawer with dowel...
- Page 9 Click the button to watch the assembly video don’t forget to recycle.
