Koala SewComfort Chair Assembly Instructions

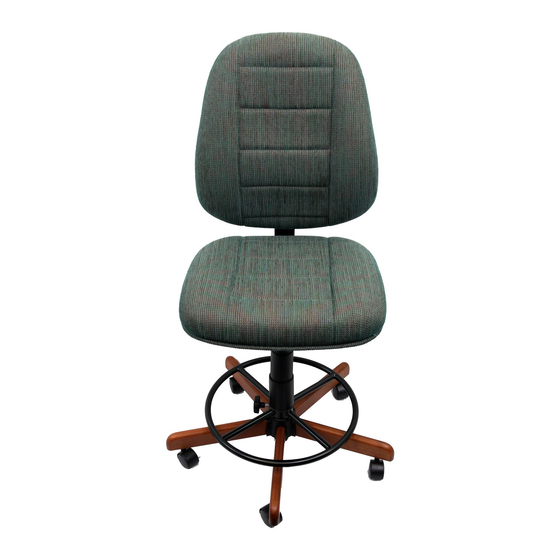

SewComfort Chair

Assembly Instructions

Your SewComfort Chair Includes:

Base with casters

Rail cover

Footrest

Piston and piston cover

Seat

Seat back

Seat metal bracket framework

Seat bracket framework

screws

Lumbar height peg-stop

You will need:

Phillips screwdriver and small hammer or mallet

You may lock the chair at any height by releasing the control

lever at the exact position you wish to maintain the chair.

While seated on the

chair, pull the control

lever up. The seat will

lower.

Leaving the chair and

taking all body weight

off, pull the lever up. The

seat will lift up.

Table of Contents

Do you have a question about the SewComfort Chair and is the answer not in the manual?

Page 1 SewComfort Chair Assembly Instructions Your SewComfort Chair Includes: Base with casters Rail cover Footrest Piston and piston cover Seat Pneumatic Operation Instruction You may lock the chair at any height by releasing the control Seat back lever at the exact position you wish to maintain the chair.
Page 2 Base Assembly Lay out your pieces for the base as shown. Insert the rail cover piece in the center of the base, making sure that it’s positioned all the way down. Next, position the footrest, making sure that the holes in the footrest are facing down.
Page 3 Assembling the Chair Seat to the Base Insert the piston in the center of the footrest, remove the yellow protective cap, then slide the piston covers over the top of the piston as shown. Next, locate the 4 screw holes on the bottom of the chair seat. Line up the metal bracket with the holes on the bottom of the seat and attach the screws.
