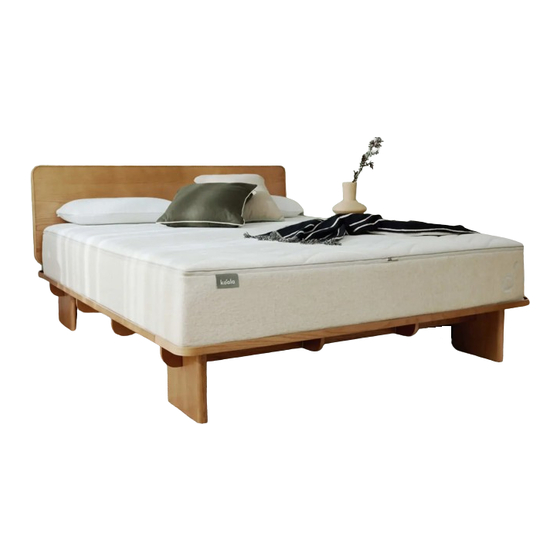

Koala KING KIRRIBILLI BED Assembly Instructions Manual
Hide thumbs Also See for KING KIRRIBILLI BED:

Advertisement

Quick Links

Click the button
to watch the
assembly video
KING
KIRRIBILLI BED

Advertisement

loading
Need help?

Need help?

Do you have a question about the KING KIRRIBILLI BED and is the answer not in the manual?

Questions and answers

Summary of Contents for Koala KING KIRRIBILLI BED

  • Page 1 Click the button to watch the assembly video KING KIRRIBILLI BED...
  • Page 2: What's In The Box

    Click the button to watch the assembly video What’s in the box*: Head end leg End support panel Bedhead bracket Foot end leg Centre support frame Side support panel Middle support frame End platform End platform Base platform Tapered Bedhead Leg Gumnut Gumnut Gumnut...
  • Page 3 Click the button Pre-assembly check to watch the assembly video U-Clip NOTE - Do not remove u-clip from any of the panels Lay out all parts in the desired orientation for the room Head Foot...
  • Page 4 Click the button Slot head-end legs onto the to watch the end support panel assembly video Ensure surface is flush Attach the bedhead brackets onto the end support panel...
  • Page 5 Click the button Fasten the bedhead brackets to the end to watch the support panel using the Gumnuts assembly video Slot the end panel to the foot-end legs Ensure surface is flush...
  • Page 6 Click the button Attach the side support panel using to watch the the metal brackets. assembly video repeat for other side NOTE - Ensure felt pads are facing inwards Ensure surface is flush Fasten the side panel to the legs using the Gumnuts...
  • Page 7 Click the button Slot the middle support frames to the to watch the side support panels assembly video Ensure surface is flush Slot the centre support frames to the middle support frames Ensure surface is flush...
  • Page 8 Lower side platforms into position and align the holes Click the button to watch the assembly video Loosely screw in the tapered Gumnuts...
  • Page 9 Click the button Attach the end platforms to the head to watch the and foot of the bed by aligning assembly video the dowels to the holes Fasten the remaining Gumnuts firmly...
  • Page 10 Click the button Mount the headboard onto the to watch the bedhead support by slotting assembly video in the bottom brackets and push down firmly Fasten the bedhead using the bedhead Gumnuts provided...
  • Page 11 Place the base platforms into the Click the button to watch the frame by aligning with the grooves assembly video on the side rail...
  • Page 12 Click the button to watch the assembly video don’t forget to recycle.
