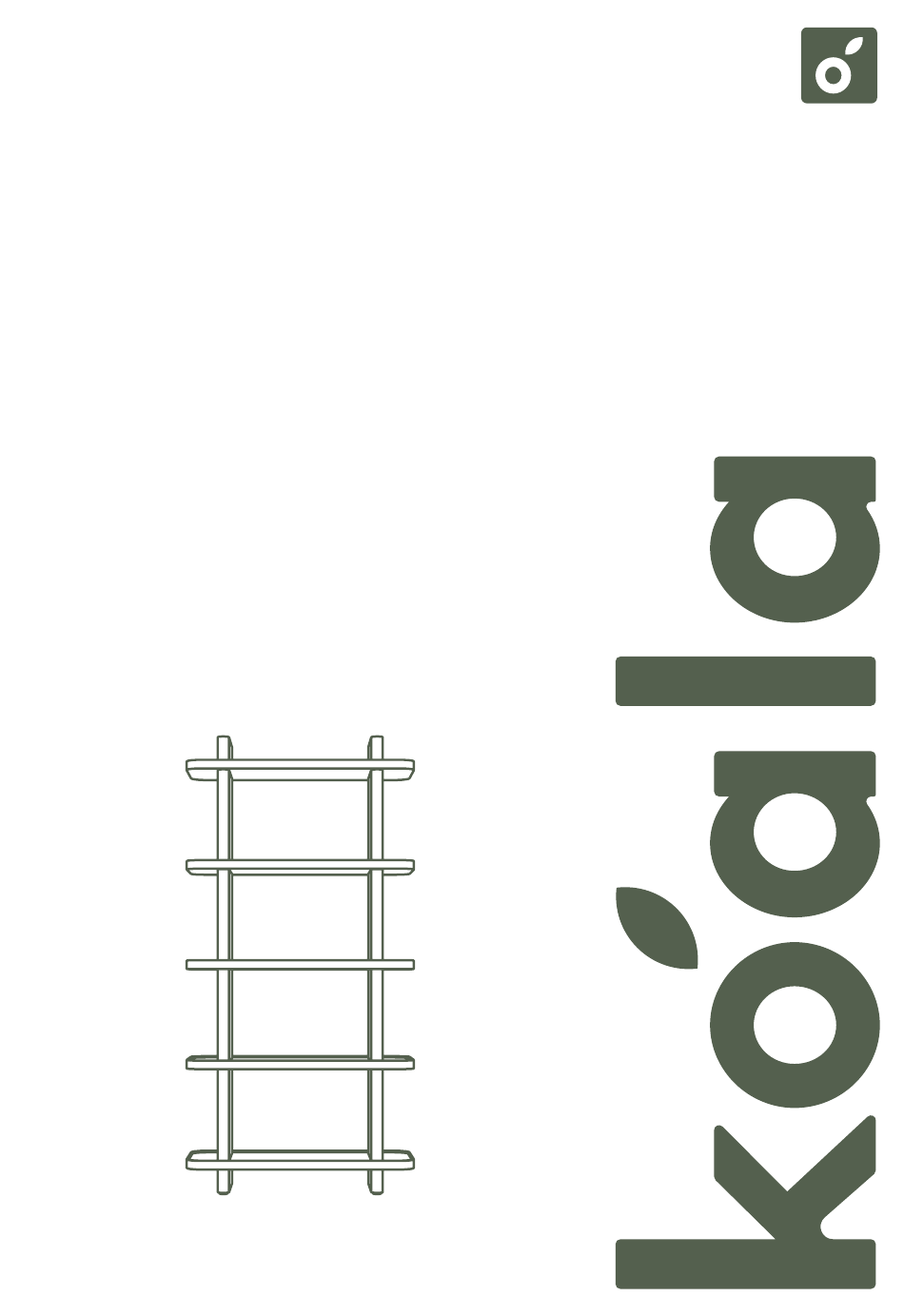

- Page 1 April 2024 Click the button to watch the assembly video TALL & NARROW KIRRIBILLI BOOKSHELF...
-
Page 2: What's In The Box
Click the button to watch the assembly video What’s in the box*: *Not to scale top upright panel bottom upright panel shelf upright panel SHELF dowel top shelf lever bolt wall mount lanyard... - Page 3 Click the button place dowels into bottom upright panels to watch the assembly video place shelf onto bottom upright panels using dowels to align NOTE - Make sure lip is facing up.
- Page 4 screw in rods to bottom upright panels Click the button to watch the assembly video slide shelf upright panels over rods onto bottom shelf...
- Page 5 Click the button slide next shelf onto shelf uprights over rods to watch the assembly video NOTE - Make sure lip is facing up. place dowels into shelf holes making sure they go through into the shelf upright panels below...
- Page 6 Click the button slide next shelf upright panels over rods to watch the onto shelf assembly video NOTE - Make sure lip is facing up.
- Page 7 place dowels into shelf holes making sure Click the button to watch the they go into the shelf upright panels below assembly video screw in the remaining rods into the lower rods...
- Page 8 slide next shelf upright panels over rods onto shelf Click the button to watch the assembly video slide next shelf onto shelf uprights over rods NOTE - Make sure lip is facing up.
- Page 9 Click the button to watch the place dowels into shelf holes making sure assembly video they go through into the shelf upright panels below slide next shelf upright panels over rods onto shelf...
- Page 10 Click the button to watch the place dowels into the shelf assembly video upright panel holes install the wall mounting lanyards by threading the eyelet through the dowel...
- Page 11 Click the button to watch the slide final shelf onto shelf uprights over rods assembly video NOTE - Make sure lip is facing up. screw lever bolts into the top of the rods...
- Page 12 Click the button once both lever bolts are tightened, to watch the assembly video lift and rotate the lever so that it is pointing at a dowel lower the top upright panels onto the top shelf using the dowels to locate...
- Page 13 Children have died from furniture tipover. • ALWAYS secure this furniture with an anchor device. • NEVER allow children to stand, climb or hang on drawers, doors, or shelves. • NEVER open more than one drawer at a time. • Place heavy items down low. NEVER put a TV on this furniture...
- Page 14 Click the button to watch the assembly video don’t forget to recycle.
