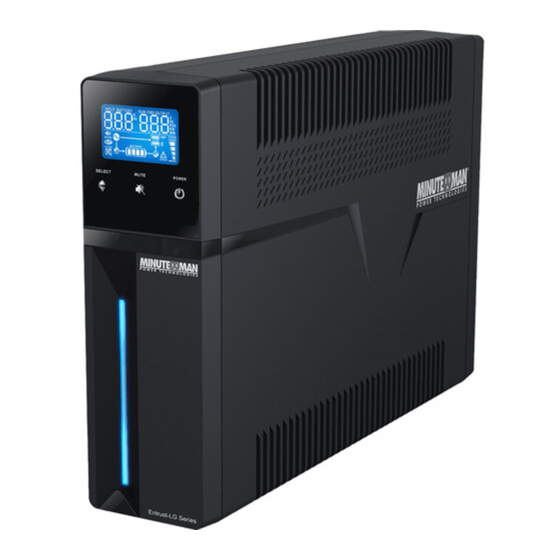

- Page 1 Entrust-LG UPS Series User’s Manual minutemanups.com | 800.238.7272...
-
Page 3: Table Of Contents
Table of Contents Introduction …………………………………… 1 Installation …………………………………….. 3 Operation ………………………………………. 6 Troubleshooting …………………………….. 8 Replacing the Battery Module ………. 10 Specifications ……………………………….. 14 Warranty ………………………………………. 15 Contact information …………………….. 18 minutemanups.com | 800.238.7272... -
Page 4: Introduction
Introduction Thank you for purchasing a MINUTEMAN power protection product. It has been designed and manufactured to provide many years of trouble-free service. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS! CONSIGNES DE SÉCURITÉ IMPORTANTES SAUVEGARDEZ CES CONSIGNES! Please read this manual before installing your Entrust-LG... - Page 5 CAUTION: To reduce the risk of electrical shock, ONLY install the UPS in a temperature- and humidity-controlled indoor area, free of conductive contaminants. Rick of electrical shock! (i) Hazardous live parts inside the UPS are energized from the internal battery supply, even when the AC input power is disconnected.
- Page 6 CAUTION: The battery(ies) present/(presents) a risk of electrical shock and an energy hazard. For the battery source, see the product specification table. Only install in a temperature- and humidity- controlled indoor area, free of conductive contaminates. Refer to specification table for environmental conditions. ATTENTION: La/les batteries(s) présente/(présente) un risqué...
-
Page 7: Installation
Installation Package Contents: USB Communications Cable Quick Install Guide Connect the Internal Battery Module: Attach the internal battery module of the UPS then connect the UPS to utility power, following the product safety warnings. The UPS will automatically begin charging its batteries without having to power on the unit. - Page 8 2) Load Shedding Outlets: Can be managed via SentryHD 3) Surge Only Outlets: For all other non-critical devices use the “Surge-Only” outlets. 4) USB Communications Port: The Entrust-LG Series is compatible with Minuteman’s SentryHD monitoring and management software which is available as a free download at www.
- Page 9 connections (Coax) are available but not required for the operation of the UPS. 7) Resettable Input Circuit Breaker: Allows the UPS to be reset in the event of an overload. (First remove one or more connected devices from the UPS to reduce the load before pressing the circuit breaker).
-
Page 10: Operation
6. Site Wiring Fault (SWF) Icon 7. Load Shedding Status 8. Load Status 9. Battery Capacity 10. “POWER” – On/Off/Test Button 11. “SELECT” – Menu Scroll Button 12. “MUTE” - Alarm Silencer Button Operation Connect the UPS to AC utility power and allow a minimum of 8 hours to charge the internal batteries. - Page 11 It is also available when the UPS is in either AC or Battery mode. Surge Protection Ports: (All models) The Entrust-LG series comes with both RJ45 and Coax surge protection ports. minutemanups.com | 800.238.7272...
-
Page 12: Troubleshooting
UPS. USB Communication Port: (All models) Use the USB port, with the included USB communications cable, to connect to a computer if using Minuteman’s SentryHD software, (available via download from: www. minutemanups.com/minuteman-software-download- center/), and follow the instructions in the software manual for installation. - Page 13 will sound continuously and Error Code: E02 will be displayed on the LCD panel. This alarm will continue until the overload is removed. Fault – When the UPS detects an internal fault, the alarm will sound continuously and Error Code: E04 will be displayed on the LCD panel.
-
Page 14: Replacing The Battery Module
Check the specifications of the connected Error Code: E02 devices and remove part of the load. If Overload Icon is the UPS shuts down because of an illuminated and there is a overload, the UPS must perform an constant alarm. inverter function or a Self-Test to clear the overload alarm. - Page 15 REPLACED BY AN INCORRECT TYPE. To maintain the optimal performance of the Entrust-LG UPS, it is important to only use battery modules designed to work with the Entrust-LG series. Using third-party or inferior batteries will affect the negatively affect the performance and life of the UPS.
- Page 16 Les piles sont recyclables, reportez- vous à vos codes locaux pour l’élimination dans un centre de recyclage. Si vous avez besoin d’aide pour la mise au rebut des batteries, veuillez contacter Minuteman à service@minutemanups.com pour plus de détails et d’assistance ou appelez le 800.238.7272.
- Page 17 échéant une de la batterie est déterminée comme étant mise à la terre. For your convenience, replacement battery modules are available from Minuteman at: https://minutemanups.com/buy-ups-replacement-batteries/ or by contacting Minuteman service by e-mail at; service@minutemanups.com or by phone at 800.238.7272. minutemanups.com | 800.238.7272...
- Page 18 Powering off the UPS is not required to replace the battery module but is recommended. 1) Expose the battery module by removing the front cover. Push the top of the panel in and slide it down. 2) Slide battery module out of the battery cage and disconnect it by pulling the connectors apart.
- Page 19 4) Replace the front cover by sliding it up until it clicks in place. 5) Allow the replacement batteries 8 hours to fully charge while the UPS is plugged into utility power. minutemanups.com | 800.238.7272...
-
Page 20: Specifications
Specifications Specifications: UPS Model ETR550LG ETR850LG ETR1000LGU General Features VA Rating 1000 Load Capacity (Watts) (1) Type A & USB Charging Ports None (1) Type C Input Voltage Range 90VAC to 140VAC Frequency Range 60Hz ±6Hz Input Plug (6-ft. Cord) NEMA 5-15P Input Protection Circuit Breaker... - Page 21 UPS Model ETR1350LGU ETR1500LGU ETR2000LGU General Features VA Rating 1350 1440 1920 Load Capacity (Watts) 1200 USB Charging Ports (1) Type A & (1) Type C Input Voltage Range 90VAC to 140VAC Frequency Range 60Hz ±6Hz Input Plug (6-ft. Cord) NEMA 5-15P NEMA 5-20P Input Protection...
-
Page 22: Warranty
Warranty Para Systems, Inc. (Para System) warrants this equipment, when properly applied and operated within specified conditions, against faulty materials (excluding the batteries) or workmanship for a period of three years from the date of purchase. Para Systems Inc. (Para Systems) warrants the batteries for a period of two years from the date of purchase. - Page 23 Before contacting Para Systems regarding warranty service, please review the troubleshooting section of the user’s manual to determine the problem can be resolved without additional assistance. If the problem can’t be resolved using the Troubleshooting table, prior to contacting Para Systems customers support, please record the following information about the UPS in questions: Model Number:...
- Page 24 © 2022 PARA SYSTEMS, INC. Minuteman Power Technologies, Entrust-LG and SentryHD are owned by Para Systems, Inc. All other trademarks are property of their irrespective owners. minutemanups.com | 800.238.7272...
-
Page 25: Contact Information
Company Contact information Para Systems, Inc. Minuteman Power Technologies Corporate Office: 1455 LeMay Drive Carrollton, TX 75007 Warehouse: 2425 Technical Drive Miamisburg, OH Contact Information: Toll-free: 800.238.7272 Direct: 972.446.7363 Web Addresses: minutemanups.com SizeMyUPS.com SizeMyPDU.com E-mail Sales: sales @minutemanups.com E-mail Support: support@minutemanups.com... - Page 26 Doc No. 34000563 11/22 minutemanups.com | 800.238.7272...
