Instruction Manual

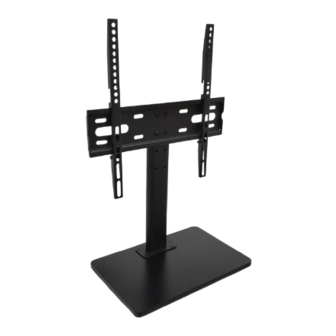

Wooden Base Universal TV Stand
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
Email：
forgingmount888@163.com
We're ready to help!
55
99LBS
MAX
MAX
HY4107
Advertisement
Table of Contents
Related Manuals for Forging Mount HY4107
Summary of Contents for Forging Mount HY4107
- Page 1 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? If you have any questions, please feel free contact us. forgingmount888@163.com Email： We’re ready to help! HY4107 99LBS...
- Page 2 Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of HY4107 and the display does not exceed 99 ibs(45kg).Use with heavier televisions may result in instability causing tip over resulting in death or serious injury! This product contains small items that could be a choking hazard if swallowed.
- Page 3 STEP 1 Assemble the TV Stand Place foot pads (Q)on the bottom of the wooden base at the corners Attach the Support Pillar to the Wooden Base STEP 1-2 STEP 1-3 Attach the TV Plate to Support Pillar Height Adjustable...
- Page 4 Step 2 Mounting the TV Brackets(04) to your TV When attaching brackets to the flat screen, be careful not to over tighten screws and be sure that screws do not bottom Please select the proper screw length for your out in the mounting holes TV by hand tightening to check your flat panel thread depth.
- Page 5 STEP 2-3 cable management (Attaching wire clips) Attaching S STEP 3 Hang TV to the TV Plate Insert the S afety Lock in the bottom of the bracket and then tighten the screws. STEP 4 Height Adjustable of the TV Brackets If you find your TV set is too close to the base, please take off the TV from the stand.
