Instruction Manual

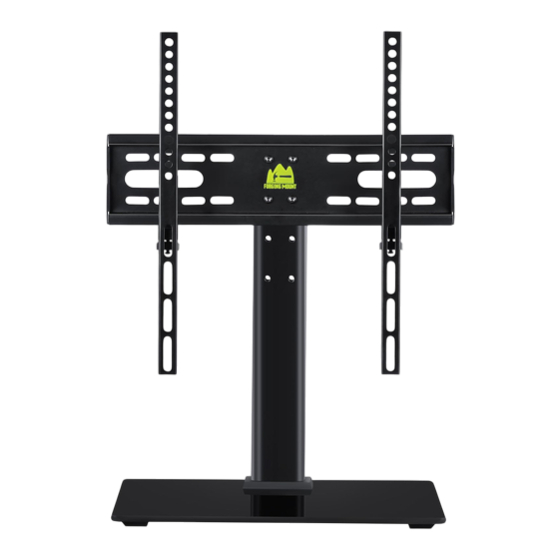

Table Top TV Stand
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
forgingmount888@163.com
Email：
We're ready to help!
HY4001
Advertisement
Table of Contents
Related Manuals for Forging Mount HY4001
Summary of Contents for Forging Mount HY4001
- Page 1 ® Instruction Manual Table Top TV Stand HY4001 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? If you have any questions, please feel free contact us.
- Page 2 Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of HY4001 and the display does not exceed 88 ibs(40kg).Use with heavier televisions may result in instability causing tip over resulting in death or serious injury! This product contains small items that could be a choking hazard if swallowed.
- Page 3 Step 1-2 Put O (Tempered Glass) on the table. Put R (Metal Pad) and L (M6x25 Bolt) under O. Turn Y (Plastic Cover) and P (Support Pillar) upside down under O to install and then tighten screws. Step 1-3 If you find the support column (P) is not in the correct direct ion, please see figure 1.1 below.
- Page 4 Step 3 Measure VESA and Check TV screws Measure the distance between the holes located at the back of your TV (these measures may form the shape of a square, or a rectangle) and check that these taken measures are within the VESA (*) range for this wall mount.
- Page 5 Step 4 Mounting the Monitor Brackets(N) to your TV First, make sure the diameter of the bolt(A-F) fits your TV. Then, please see the diagram above. You will need to thread the bolt into the TV using the correct washer (G) and spacer (G or I) if necessary with a screwdriver(Not included).
- Page 6 Step 5 Attaching TV to TV Plate and Mananging the Wires CAUTION: Avoid potential personal injury or property damage! Make sure your locking screws are tightened BEHIND the mounting plate so the TV is securely fastened in place. Insert the safety lock in the bottom of the bracket and then tighten the screws.
