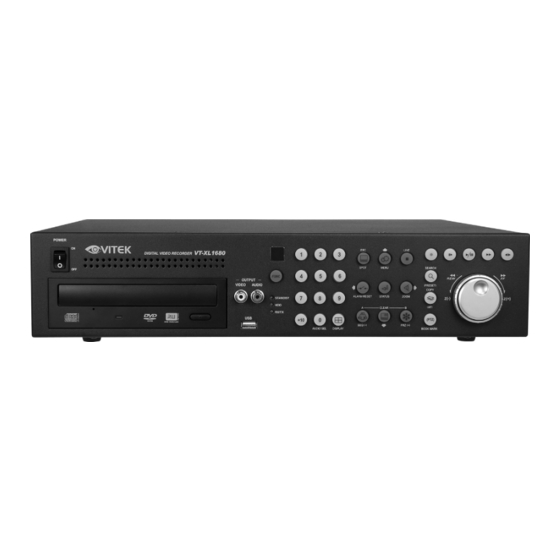

Vitek VT-XL1680 Specifications

SAGA "XL" Series
FEATURES
•
The Industry's only MPEG4 Compression with Non-
Conditional Refresh
•
Real-Time Recording and Display (VT-XL840: 240IPS / VT-
XL1680: 480IPS)
•
MPEG-4 Compression
•
Up to 44 HDD support: 4.0 Terabytes Internal Storage (4x -
1TB HDD) and Up to 40 Terabytes External Storage (4x - 10
HDD Expansion bay units)
•
8 Channel audio
•
2-Way communication over the internet
•
Multi-site Monitoring for a maximum of 16 Independent DVRs
and a maximum of 256 Cameras
•
DMCC Multi-Site Software enables control of infinite IP
addresses and viewing of up to 64 Separate IP Addresses
from a Single Remote Site.
•
Built-in DVD/RW drive
•
Accepts 4 External (VT-XHD10) HDD Bays for an Additional
40 Hard Drives
•
Block Search Function Retrieves Lost Files, Even from
Damaged Hard Drives
8 and 16 Channel Digital Video Recorders
•
Embedded Linux OS
•
Dynamic IP support (DDNS)
•
Simultaneous D1 (720 x 480 @ 60/120 ips), Half-D1 (720 x
240 @ 120/240 ips), and CIF (360 x 240 @ 240/480 ips)
recording
•
Maximum File Size of 5.5K (CIF), 10K (Half D1), 18K (D1)
•
Continuous, Motion, Alarm, V-Loss, Scheduled recording
modes
•
Numerous search modes: Calendar, Search & Copy, Time,
Event, Block, File, Bookmark & Log
•
Notification e-mail to up to 10 accounts on Motion, Alarm, V-
Loss, HDD Fail
•
Sextuplex: Record, Playback, Network Transmission, Mirror,
Backup and Live Viewing
•
Backup to External HDD, CD-R, DVD-RW, DVD+RW, USB
Memory Stick
•
Control up to 16 DVRs via Keyboard or IR Remote control
VT-XHD10U
SAGA Series USB 2.0 HDD
Expansion Bay
•
Capable of supporting up to 10 IDE
hard drives
•
Hard drives can be setup in a
Mirrored Array for redundancy, Striped
into a massive disk array up to a
30TB, or in any combination of each
•
Up to 4 Bays can be connected via
USB 2.0
