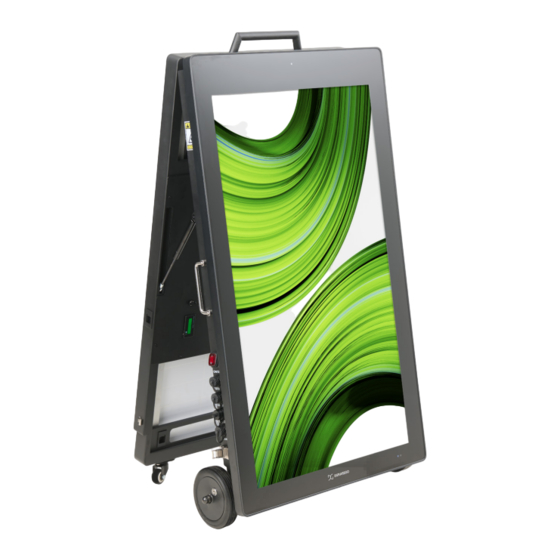

43" Solar Powered LCD A -Frame
Digital Signage
U S E R M A N U A L
SKU: DW043NSB
FCC ID: 2ASCB- DW043NSB
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DW043NSB
Summary of Contents for Displays2go DW043NSB
- Page 1 U S E R M A N U A L SKU: DW043NSB FCC ID: 2ASCB- DW043NSB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 Thank you for purchasing this product from Displays2go. It’s our mission to help you connect with the world and build your brand with products that are personalized to your needs. Your product has been manufactured with great care using only the finest quality materials and expert workmanship.
-
Page 3: Table Of Contents
TA B L E O F C O N T E N TS BEFORE USE Safety and Warnings Packing List Parts Description Assembly Transportation OPERATION Rechargeable Battery Power On/Off Remote Control Settings Android Quick Start Guide DIVIEX Upload Media DiViEX App Settings REFERENCE Technical Specifications Cleaning and Maintenance... -
Page 4: Before Use
B E F O R E U S E Safety Warnings and Precautions Thank you for purchasing the high-performance digital signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 5 WARNING • Cut off the power supply before connecting or disconnecting any cables. • Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. • Do not place the Digital Signage in the positions such as: •...
- Page 6 The technical specifications printed herein and on the packaging are subject to change without prior notice. The Manual may be slightly different from actual operation, and the latter is applicable. If you have any questions regarding our products, please visit us at www.displays2go.com or contact Displays2go customer service at 844-221-3388.
-
Page 7: Packing List
Packing List Name Quantity Name Quantity Outdoor Digital Signage Power Cord Remote Control Charging Adaptor Key for Wheels User Manual Parts Description Description Description Description Handle USB port 2.0 x2 Security lock loop Solar panel RJ45 port DC charging port Locking wheels Locking fasteners Power indicator... -
Page 8: Assembly
Assembly TO OPEN UNIT CAUTION: 2 people required to safely unfold the unit. 1. Unbuckle locking fasteners on either side of the unit, while another person holds the sides of the unit to keep steady. 2. Open unit until solar panel is fully extended into A-shape. EXTEND UNIT SOLAR PANEL CAUTION: 2 people required to safely unfold the unit. -
Page 9: Transportation
TO CLOSE UNIT CAUTION: 2 people required to safely unfold the unit. 1. Hold top handle (A) with one hand while supporting the bottom of the unit (B). 2. Have a second person stand in front of the LCD screen and hold side handle (C). 3. -
Page 10: Operation
O P E R AT I O N Rechargeable Battery • To see battery level, press the Battery Power Indicator power button on the inside of the unit. • To charge unit, connect power cord to charging adaptor. Insert into charging port of unit, then connect to outlet. •... -
Page 11: Power On/Off 1
Power On/Off • Start up by flip power switch to ON. • Power on or off, press the power button on the remote control. • To shut down, flip power switch to OFF. CAUTION: Disconnect the power cord before assembling or disassembling the unit! Remote Control Power To control the unit, aim the remote control... -
Page 12: Settings
Settings Once turned on, the unit automatically displays the home screen, which includes the navigation bar and the App Drawer. NOTE: The navigation bar can be minimized. To restore the navigation Display Navigation. bar, go into Display settings and enable App Drawer Background Applications Back... -
Page 13: Diviex
DiViEX The DiViEX Slideshow App comes pre-installed on this digital product for convenient content management. There are 2 methods for uploading media: saving media files to internal storage, or creating a specific folder on a USB, then inserting into unit. Supported File Formats After, open the app to launch a slideshow or Images... -
Page 14: Diviex App Settings
PLAYLIST SETTINGS Edit the overall playlist settings in the Settings tab. Once settings are adjusted, click PLAY or adjust further in the Edit or Music tab. Enable or disable automatic settings. A. AUTOMATIC SETTINGS Auto-Boot: Automatically launch DiViEX when unit is powered on Auto-Play: Automatically play slideshow when DiViEX opens B. - Page 15 EDIT Tweak each photo individually in the Edit tab. A. PHOTOS Images/Video thumbnails in sequential order. Drag to rearrange. B. EDIT TOOLS Crop, Add Text, Add Filter, Add Sticker, Add Frame This white bar shows tool options for each of the Edit tools. Choose aspect ratios C.
-
Page 16: Reference
R E F E R E N C E Technical Specifications LCD Size 43” Light Source LED backlight Resolution 1920 x 1080 (pixels) Brightness 1500 nits (Typ) Contrast 1 100: 1 Response PANEL Pixel Pitch 163.35(H) x 490.05(V) Refresh Rate 50/60Hz Viewing Angle 89°... -
Page 17: Cleaning And Maintenance
Ethernet (RJ45) HDMI IN Headset 2x USB 2.0, 1x USB 3.0 Wi-Fi Net Weight ≈ 1 10 lbs (≈ 50kg) Gross Weight 231.5 lbs (≈ 105kg) Unit Dimensions 25.3”x 46.7”x 5” (642x1 187x130mm) STRUCTURE Package Dimensions ≈ 51.6” x 12.8” x 33.5” (≈1310x325x850mm) Shell Material Steel Shell Color... -
Page 18: Troubleshooting Guide
Troubleshooting Guide ISSUE PROBABLE CAUSE SOLUTION • Check that the unit is able to charge when connected to charging adaptor and outlet. • Battery level too low • Confirm that the battery is charged. • Power cord not properly • Turn the on/off toggle switch located on the back of the NO PICTURE connected to charging port unit, lower center, to the “on”... - Page 19 APPS NOT is functioning. WORKING • Android board is defective • Contact Displays2go support. NOTE: Do not attempt to replace or repair circuitry yourself. Contact customer service to schedule a professional maintenance appointment. If all the potential solutions have been tested for a particular issue and problems have not been resolved, contact a customer service representative for guidance.
-
Page 20: Names And Contents Of Toxic And Hazardous
Names and Contents of Toxic and Hazardous Substances or Elements in the Product The table shows that the machine contains harmful substances inside. The data is provided by material suppliers and verified by the company according to the material type. Some materials contain harmful substances that can’t be replaced in present technology. -
Page 21: Fcc Compliance Notice
FCC Compliance Notice Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
