User Manual
V21.01
Model: DG21FLR7

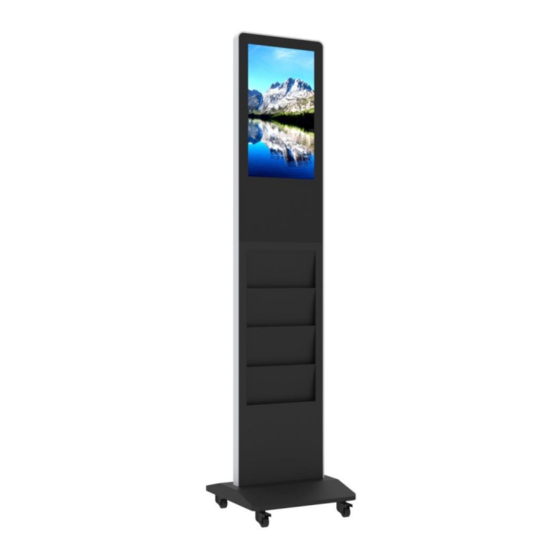

Description: 21.5" Indoor Floor Standing Digital Signage
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call our
Customer Service Department at 1-844-221-3393.
1 / 24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DG21FLR7
Summary of Contents for Displays2go DG21FLR7
- Page 1 User Manual V21.01 Model: DG21FLR7 Description: 21.5” Indoor Floor Standing Digital Signage Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 Steps for Assembly ........................6 Steps for Assembly with Casters ....................7 Remote Control ........................8 Description of Basic Operation ....................9 Power on/Standby ........................ -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 WARNING ⚫ Do not use power supply other than AC 110V, 60Hz. ⚫ Cut off the power supply before connecting or disconnecting any cables. ⚫ Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. ⚫...
-
Page 5: Assembly And Connection
CAUTION ⚫ Do not let children climb onto the Digital Signage. ⚫ Keep the small parts away from children to prevent them from swallowing. ⚫ If the Digital Signage won’t be used for a long time, please turn it off and pull out the power plug. ⚫... -
Page 6: Interfaces
Interfaces 1. USB interface, 2. HDMI input, 3. RJ45 interface, 4. On/Off button, 5. Power port, Note: Please pull out the power plug before installing or disassembling the unit! Steps for Assembly 1. Open the top cover, as shown in Fig. 2; 2. -
Page 7: Steps For Assembly With Casters
Steps for Assembly with Casters 1. To use this product as a mobile unit, install 4 casters to the metal base by threading them into the holes on the bottom of the base. Tighten all casters with provided screwdriver. 2. Connect the base and the digital poster with provided screws. Tighten all screws with an Allen wrench. 3. -
Page 8: Remote Control
Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ⚫... -
Page 9: Power On/Standby
Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on; if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”... -
Page 10: Description Of Wallpaper Switch
Description of Wallpaper Switch We suggest using a mouse to change the wallpaper. Connect a mouse with the digital panel through USB port, then follow the steps below: click “Setting” At the setting menu, click “Display” At the Display setting menu, click “Gallery”, or “Wallpaper” Then select an image you would like to set up as background. -
Page 11: Local Settings
Local Settings 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click the “Settings” icon in the “APPS” menu interface (Fig. 2) and enter “Wi-Fi” menu (Fig. 3); 3. -
Page 12: Status Of Menu Bar
Status of Menu Bar ▽ Click " " in the menu to hide the status bar(Fig. 1). Fig. 1 DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements：... - Page 13 Format requirement: Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/ MKV Music Step 3: Plug in the USB drive into the device and click the DiViEx App to open it. Step 4:When the screen shows “Copy finished” after “Usb Disk:”, 13 / 24...
-
Page 14: Setting
Setting: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. ⚫... -
Page 15: Music
⚫ Image deletion Click " " to delete unwanted pictures Music: List all music files int Playlist library ⚫ Add music to playing list music from Playlist library, you can click right arrow, music title will show the number of playlist music. 15 / 24... -
Page 16: Factory Reset
⚫ To remove background music from the playlist, click the left arrow in the playlist Factory Reset: 1. Get into Settings, then click “Backup & reset” (Fig. 1) 2. Click “Factory data reset” (Fig. 2) 3. Choose “Erase SD card”, then click “RESET DEVICE” to get the unit to Factory Reset (Fig. 3) Fig. -
Page 17: Screen Rotate
Screen Rotate: 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System aide” into Fig. 2 3. Choose the degree you would like to Rotate screen, then click “Confirm”, after the restart, the screen will be rotated (Fig. - Page 18 Fig. 4 Fig. 5 18 / 24...
-
Page 19: Technical Specifications
Technical Specifications ITEM SPECIFICATION LCD size 21.5” Light source LED backlight Resolution 1920*1080 (pixels) Brightness (typ.)/(min) 250cd/m (typ.) Contrast (typ.) 1000:1 (typ.) Response (ms) 14ms (typ.) Panel Pixel pitch 0.08 (H) mm * 0.25 (V) mm Refresh rate 60Hz Viewing angle 178°... - Page 20 Supported Video Files AVI, MPEG4, WMV, MKV, FLV, MP4, MOV Supported Photo Files JPG, JPEG, BMP, PNG, GIF Audio output, supported files Left and right audio channel, MP3 Functions RTC (real-time clock) Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI...
-
Page 21: Troubleshooting
Troubleshooting the Digital Signs - DG21FLR7 Issue Probable Cause Solutions ⚫ ➢ No picture or sound Unit not plugged into wall outlet □ Check that the unit is plugged into wall ➢ Power cord not properly outlet. connected to the terminal on the □... - Page 22 Having problems Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at ➢ content to play Did the customer purchase or support@bestwave.
-
Page 23: Cleaning And Maintenance
➢ App is defective Copy > Home > NAND > MediaFolder > ➢ Android board is defective. Images> Editor > Paste Open SlideShow app and select desired trasitions, slide time and looping > Play MX Player steps > Follow same steps as SlideShow App >... -
Page 24: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE О О О О О Display О О О О × × Shell О О О О О Circuit board assembly * О...
