Displays2go DK043TLBA User Manual

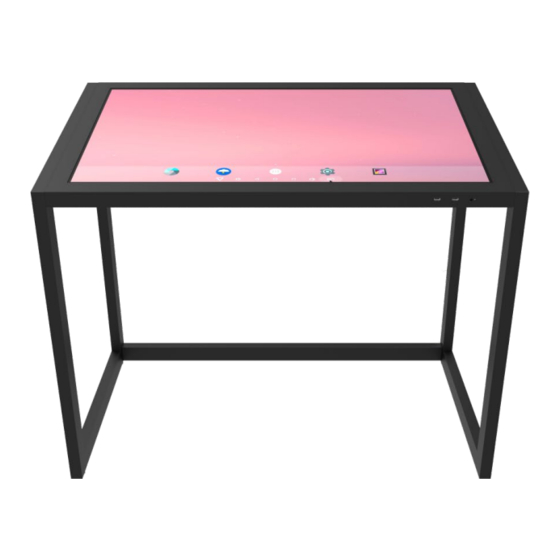

43inch accessible digital kiosk
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
V22.01
Model: DK043TLBA
Product Name: 43inch Accessible Digital Kiosk
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call
our Customer Service Department at 1-844-221-3393.
1 / 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DK043TLBA and is the answer not in the manual?

Questions and answers

Related Manuals for Displays2go DK043TLBA

Summary of Contents for Displays2go DK043TLBA

  • Page 1 User Manual V22.01 Model: DK043TLBA Product Name: 43inch Accessible Digital Kiosk Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.

  • Page 2: Table Of Contents

    Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 Unpacking and installation steps ....................6 Cable Management Installation mode ..................8 Remote Control ........................9 Description of Basic Operation ..................... 10 Power on/Standby ........................

  • Page 3: Features

    Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire.
  • Page 4 WARNING  Cut off the power supply before connecting or disconnecting any cables.  Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire.  Do not place the Digital Signage in the positions such as: 1.

  • Page 5: Assembly And Connection

    Cross screwdriver (1) L-Shaped Wrench (1) Hex Screws M6*40 (10) Cross head pad screw M4*8 (8) Note: Contact Displays2Go if you have questions about the operation, debugging and connection of the unit, if the unit doesn’t work 5 / 27...

  • Page 6: Interfaces

    normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. Interfaces 1.
  • Page 7 Fig. 3 Fig. 4 Fig. 5 4. Assemble the legs and digital signage using a hex wrench and dedicated screws; 4-1. First lock the bracket on one side with 3 dedicated screws (Fig.6); 4-2. Tighten the bracket on the other side with 3 dedicated screws (Fig.7); 4-3.

  • Page 8: Cable Management Installation Mode

    Cable Management Installation mode 1. Take out the cord management channel and tear off the surface coating of the bottom adhesive on the back. Refer to Figure 1. 2. Paste the channel on one of the leg of the table, leaving space from the top and bottom to let cord come through, as shown in Figure 2.

  • Page 9: Remote Control

    Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ...

  • Page 10: Description Of Basic Operation

    Description of Basic Operation Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on, if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”...

  • Page 11: Local Settings

    Fig. 3 Local Settings 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click the “Settings” icon in the “APPS” menu interface (Fig. 2) and enter “Wi-Fi” menu (Fig. 3), 3.

  • Page 12: Status Of Menu Bar

    Description of Settings Interface (shown on the right) Icon Function Network & internet Connected devices Apps & notifications Display Sound Storage Privacy Location Security Accounts Accessibility Screenshot Memory System About table Status of Menu Bar 1. Click the “setting”(Fig. 1), 2.

  • Page 13: Screen Rotate

    Fig. 3 Fig. 4 Fig. 5 Screen Rotate 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System assistant” into Fig. 2 3. Choose the degree you would like to Rotate screen(Fig. 3), then click “CONFIRM”, after the restart, the screen will be rotated (Fig.

  • Page 14: Choose System Language

    Choose System Language: 1. 1.Get into “System”(Fig. 1), then click “Language & input” (Fig. 2) 2. Click “Languages”, then click “Add a language” (Fig. 3) 3. You can add the required system language (Fig. 4) 4. Drag the system language you just added up to the front(Fig. 5) Fig.

  • Page 15: Factory Reset

    Factory Reset: 1. Get into Settings, then click “System” (Fig. 1), 2. Open the drop-down box for advanced options (Fig. 2), 3. Click “Reset options” (Fig. 3), 4. Click “Erase all data (factory reset)” (Fig. 4), 5. Click “Erase all data”(Fig. 5). Fig.

  • Page 16: Diviex App Introduction

    DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements: RK3568 32GB Operating system Android 11 How to upload media files : Step 2: Make new directory named “MediaFolder” in root directory in U disk. Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music".

  • Page 17: Setting

    Step 4: When the screen shows “Copy finished” after “Usb Disk: ”, Setting: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Auto Boot ...
  • Page 18 NEGATIVE, POSTERIZE, SATURATE, SEPIA, SHARPEN, TEMPERATURE, TINT, VIGNETTE, CROSS_PROCESS, BLACK_WHITE, FLIP_HORIZONTAL, FILP_VERTICAL, PSTERIZE, ROTATE. Sticker  You can add seven special effects to the picture Frame  You can add different borders to the picture Reset  Restore the original image Picture sharing “...
  • Page 19 Pictures saving “ ”  When you click the Save button, it will create a new picture Image deletion  Click " " to delete unwanted pictures 19 / 27...

  • Page 20: Music

    Music: List all music files in Playlist library Add music to playing list music from Playlist library, you can click right arrow, music title will show the  number of playlist music. To remove background music from the playlist, click the left arrow in the playlist ...

  • Page 21: Technical Specifications

    Technical Specifications ITEM SPECIFICATION LCD size 43” Light source LED backlight Resolution 1920*1080 (pixels) Brightness (typ.)/(min) 400cd/m (typ.) Contrast (typ.) 1200: 1 (typ.) Response (ms) 10ms (typ.) Panel Pixel pitch 0.16 (H) mm * 0.49 (V) mm Refresh rate 60Hz Viewing angle 178°...
  • Page 22 Audio output, supported files Left and right audio channel, MP3 RTC (real-time clock) Functions Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces 3.5mm headphone WiFi Type-C OTG Net weight 36kg Gross weight 45kg Unit dimensions (W*D*H)

  • Page 23: Troubleshooting

    Troubleshooting the Digital Signs – DK043TLBA Issue Probable Cause Solutions No picture or sound Unit not plugged into wall outlet   □ Check that the unit is plugged into wall Power cord not properly  outlet. connected to the terminal on the □...
  • Page 24 Did you purchase the   □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at content to play Did the customer purchase or ...

  • Page 25: Cleaning And Maintenance

     Android board is defective. Images> Editor > Paste Open DiViEX app and select desired transitions, slide time and looping > Play MX Player steps > Follow same steps as DiViEX App > MediaFolder > Video > Editor > Paste. Open MX Player and select video to play.

  • Page 26: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product

    Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE Display О О О О О Shell О О О О × × Circuit board assembly * О О...

  • Page 27: Fcc Statement

    FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
