Techly IDATA DP-2DP-8KT Manual

EN
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
IMPORTANT SAFETY INSTRUCTION
INTENDED USE
We do not permit using the device in other ways like described in this user's
manual. Use the product only in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal accidents, injuries, and
damages to persons and property. The manufacturer/supplier assumes no liability for
damages caused by failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
equipment if a problem should occur. Do not expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts
which can be swallowed and can injure when used inappropriately! • Please install the
system and devices attached to it in a way that persons cannot be injured, or objects not
be damaged for example by dropping or stumbling. • Please remove the packing materials,
because children may cut themselves on them while playing. Furthermore, there is a risk
of swallowing and inhalation of incidentals and insulating material. • Avoid places with
high temperatures, or humidity, or places which might come into contact with water. Do
not install the product close to openings of air conditioners, or at places with an excessive
amount of dust or smoke. Keeps distance from flammable and explosive devices • Do not
install the product at places subject to vibration, or oscillation • Do not modify and alter the
product and any accessories! Do not use any damaged parts. • Keep enough space around
all devices for a good ventilation and free motion and to avoid damages. • Do not plug-in/
out the cables when it is in using.
INTRODUCTION
• DisplayPort Splitter: Support 8K@30Hz,4K@120Hz,1080P@240Hz resolution, provide
you with transfer rates up to 32. 4Gbps and backward compatible with all previous DP
standards. (You need connect standard DP 1.4 cable to enjoy visual effects.)
Note: We recommend that the wires at both ends, that is, the sum of the input and
output wires should not exceed 3 meters. If it exceeds 3 meters, the signal may be
shielded.
• Bi-Direction DP Switch: The DisplayPort switcher allow you to connect two DP source
to one DP display or connect one DisplayPort source to toggle between two displays.
(IMPORTANT NOTE: Two displays CANNOT display simultaneously)
(While connecting to Source or Display, you must use the USB cable to power the splitter,
If you do not power the splitter, your source or display cannot show anything)
• DisplayPort Switch 8K DP 1.4 Switch: Support 8K@30Hz,4K@120Hz,1080P@240Hz
resolution, provide you with transfer rates up to 32.4Gbps and backward compatible
with all previous DP standards. (You need connect standard DP 1.4 cable to enjoy).
FEATURES
1. Supports 8K@30Hz,4K@120Hz,1080P@240Hz resolution
2. Supports transfer rate up to 32.4 Gbps
3. Supports splitter function by connecting one source to two displays and switch function
by connecting two sources to one display
4. Bidirectional Switch: allows you to connect two sources to one display or one source to
two displays (in this case the source can be displayed alternately on the displays, does
not support simultaneous viewing on both monitors)
PACKAGE CONTENTS
• Displayport1.4 Bi-Direction Switch *1
• USB power cable *1
• User manual *1
WWW.TECHLY.COM
To reduce risk of electric shock, this product
should ONLY be opened by an authorized
technician when service is required.
Disconnect the product from mains and other

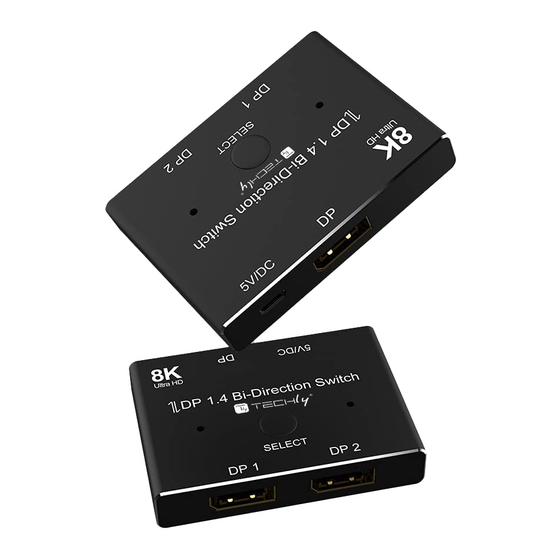

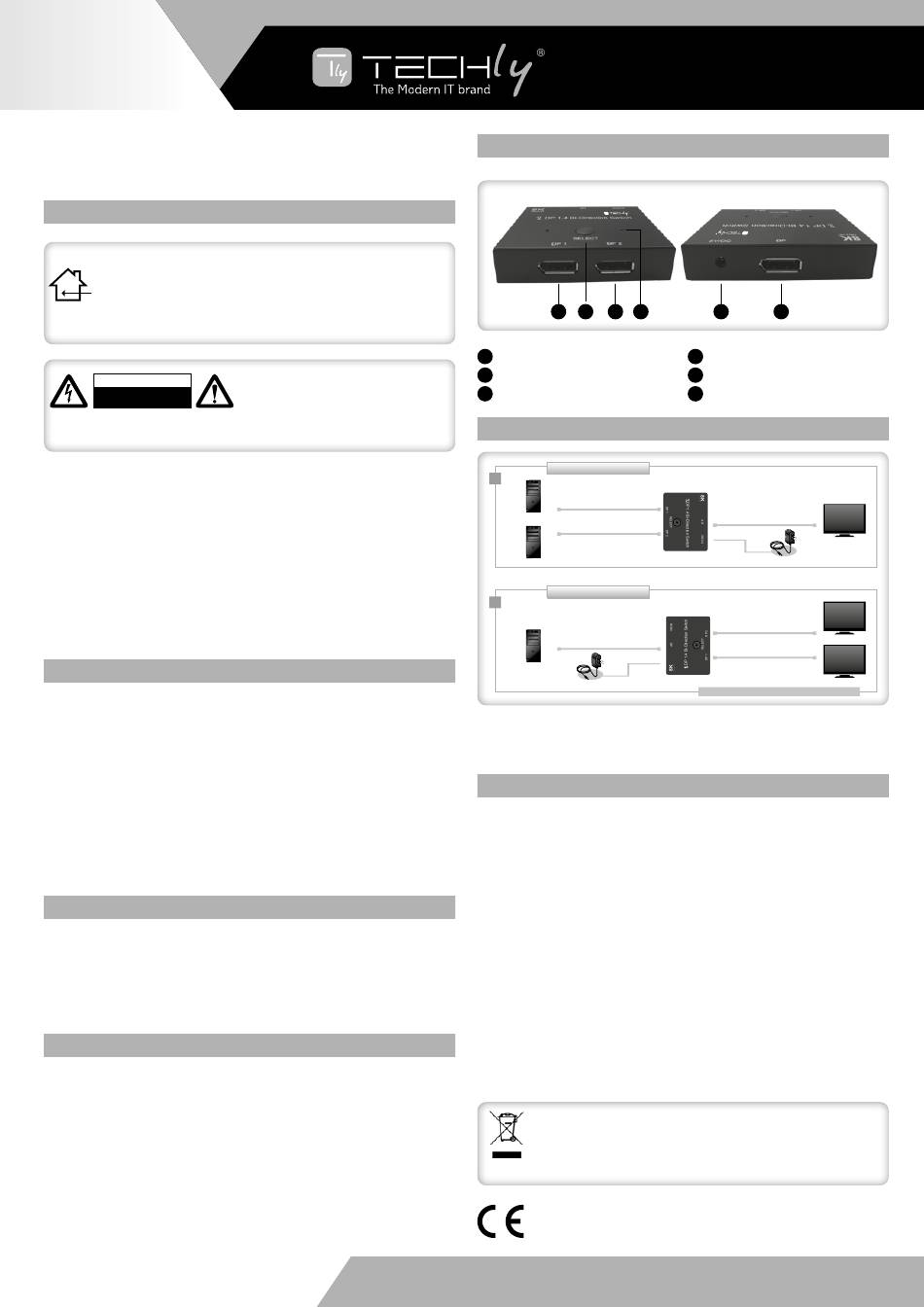

PRODUCT OVERVIEW
1 5 2 6
1 DP port 1
2 DP port 2
3 DP port
CONNECTION DIAGRAM
TWO PC ONE MONITOR
A
DP Cable
PC/Mac
DP Cable
PC/Mac
ONE PC TO TWO MONITOR
B
DP Cable
PC/Mac
Power Adapter
Plug and Play: External power required, the DP selector box is easy to setup and
operate
INSTALLATION GUIDE
1. Connect the power adapter: Use a USB cable (accessory), the Type-C™ end is connected
to the product end, and the Type A end is connected to the power adapter.
2. Connect the sources & sinks: Use three DP cables (purchased by yourself, not included
in the supply); you need connect standard DP 1.4 cable to enjoy visual effects.
Note: We recommend that the wires at both ends, that is, the sum of the input and
output wires should not exceed 3 meters. If it exceeds 3 meters, the signal may be
shielded. The end connected to the product, and the other end is connected to the
sources & sinks.
Note: While using, press "select" Button to switch signal between two sources, the
indicator lights show the working status (When the display is flashing, please check
whether the total length of the connection is too long). Two displays CANNOT display
simultaneously.
Attention: Insert / Extract cable gently.
Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifications of the product
or damage caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with this
symbol. It means that used electrical and electronic products should not
be mixed with general household waste. There is a separate collections
system for these products in compliance with WEEE directive, otherwise
contaminative and hazardous substances can pollute the environment.
With the CE sign, Techly
®
European standards and directives.
8K DISPLAYPORT1.4
BI-DIRECTION SWITCH
4 3
4 Power input port 5V DC 0.5A
5 Switch button for selecting device
6 LED indicator
DP Cable
Power Adapter
DP Cable
DP Cable
Only one sink could display at the same time
ensures that the product is conformed to the basic
8K Monitor
8K Monitor
8K Monitor
