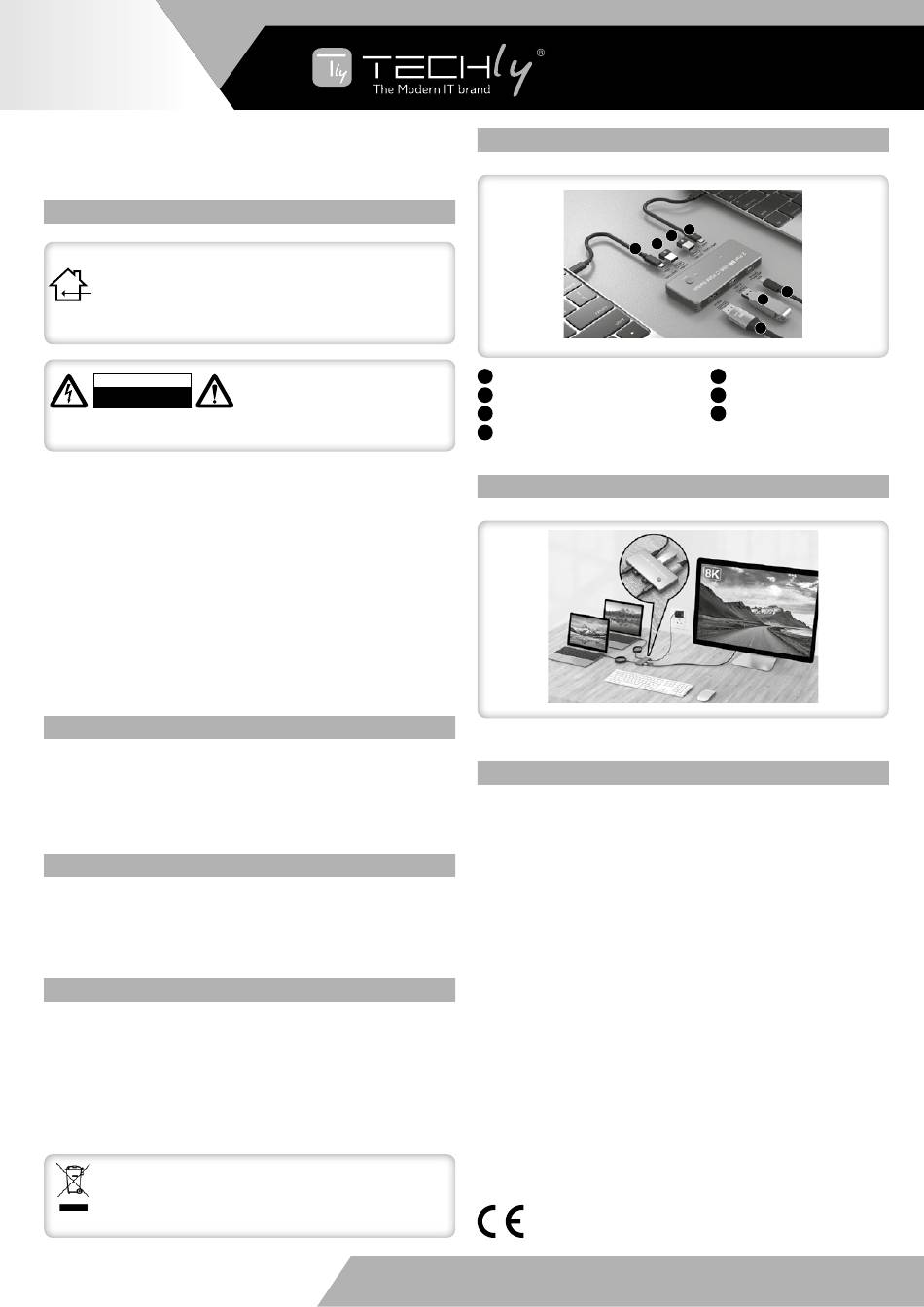

Techly IDATA KVM-DPC8K Manual

EN
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
IMPORTANT SAFETY INSTRUCTION
INTENDED USE
We do not permit using the device in other ways like described in this user's
manual. Use the product only in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal accidents, injuries, and
damages to persons and property. The manufacturer/supplier assumes no liability for
damages caused by failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
equipment if a problem should occur. Do not expose the product to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small parts
which can be swallowed and can injure when used inappropriately!
• Please install the system and devices attached to it in a way that persons cannot be
injured, or objects not be damaged for example by dropping or stumbling.
• Please remove the packing materials, because children may cut themselves on them
while playing. Furthermore, there is a risk of swallowing and inhalation of incidentals
and insulating material.
• Avoid places with high temperatures, or humidity, or places which might come into
contact with water. Do not install the product close to openings of air conditioners, or at
places with an excessive amount of dust or smoke. Keeps distance from flammable and
explosive devices.
• Do not install the product at places subject to vibration, or oscillation
• Do not modify and alter the product and any accessories! Do not use any damaged
parts.
• Keep enough space around all devices for a good ventilation and free motion and to
avoid damages.
• Do not plug-in/out the cables when it is in using.
INTRODUCTION

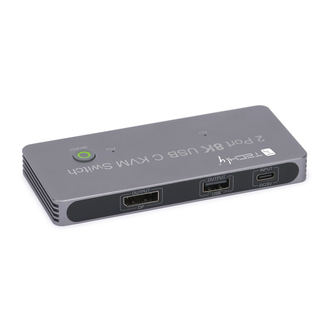

The USB-C™ Switch allow you to connect two USB-C™ sources to one DisplayPort1.4
display and switch easily from Source1 to Source 2 using "Select" button. Beside, this
product has 3 USB2.0 ports, where you can connect other USB devices like mouse,
keyboard or USB pen drive. USB-C™ Switch with Power and Data function supports 100W
Power Delivery and transmission speed up to 10 Gbps, allow you to charge mobile phone,
computer, tablet and other devices and also transfer data. Supports video output up to
7680*4320@30Hz and 3840*2160@120Hz.
FEATURES
1. 2-in-1 Switch with KVM function: Allowing you to connect two USB-C™ sources to one
DisplayPort display and 3 port USB2.0 Hub
2. Supports 8K resolution: 7680x4320@30Hz or 3840x2160@120Hz
3. Supports transfer rate up 10Gbps
4. Supports 100W Power Delivery and allowing you to charge mobile phone, tablet,
computer and other devices
PACKAGE CONTENTS
• 8K USB-C™ to DisplayPort KVM Switch *1
• USB-C™ power cable *1
• USB-C™ connection cables *2
• User manual *1
In compliance with EU Directive WEEE this product is marked with this
symbol. It means that used electrical and electronic products should not
be mixed with general household waste. There is a separate collections
system for these products in compliance with WEEE directive, otherwise
contaminative and hazardous substances can pollute the environment.
WWW.TECHLY.COM
To reduce risk of electric shock, this product
should ONLY be opened by an authorized
technician when service is required.
Disconnect the product from mains and other
8K USB-C™ TO DISPLAYPORT
PRODUCT OVERVIEW
4
1 DisplayPort Output port
2
USB2.0 output port
3
USB-C™ power input port (DC5V/1A)
4 USB-C™ Input port (PC1)
CONNECTION DIAGRAM
INSTALLATION GUIDE
1. Connect the power adapter: Use a USB cable (accessory), the Type-C™ end is connected
to the product end, and the Type A end is connected to the power adapter.
2. Connect the PC1 (laptop) USB Port: Use a USB cable (accessory), the Type-C™ end is
connected to the product end, the other end is connected to the PC1 USB port
3. Connect the PC2 (laptop) USB Port: Use a USB cable (accessory), the Type-C™ end is
connected to the product end, the other end is connected to the PC2 USB port
4. Connect the display device: use a DisplayPort cable (not included in the supply), one end
is connected to the product end and the other end is connected to the display device
DisplayPort port
5. Press "Select" button to switch between two sources (PC1 and PC2)
6. Connect the USB devices: USB devices (keyboard, mouse, printer, u-disk, etc...) through
USB-A end is connected to the product.
For connecting devices with USB-C™ switch must be used only USB-C™ Gen.2 cables,
otherwise the video signal cannot be transmitted. This USB-C™ switch supports 8K as
video resolution, but maximum resolution of your output depends on your source device,
monitor and cable used. When you use the switch, it is recommended to do not use too
long cables, please note that the sum of the length of cables at both ends have not to be
exceed 3 m). Too long cables at both ends will cause the screen to flicker or the screen
can not be displayed
Attention: Insert / Extract cable gently.
Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty: No guarantee or liability can be accepted for any changes and modifications of
the product or damage caused due to incorrect use of this product.
With the CE sign, Techly
®
European standards and directives.
2-IN-1 SWITCH
7
6
5
3
2
1
5 USB2.0 output port
6
USB2.0 output port
7
USB-C™ Input port (PC2)
ensures that the product is conformed to the basic
