Techly 4KX2K User Manual

User's Manual
EN
Manuale d'istruzione
IT
INTRODUCTION
EN
The 2×1 USB HDMI KVM Switch 4Kx2K shares one HDMI display
between four HDMI sources.
FEATURES
• Share an HDTV or display, USB keyboard& mouse, and
microphone between 2 USB/HDMI computers and devices
• Provides an additional USB 2.0 sharing port with over-current
detection and protection
• Switch between devices via front push buttons or hotkeys
• Supports 4K@60Hz and PC's UXGA 1920×1200 resolutions
• Supports Dolby True HD and DTS HD Master Audio formats
• HDMI 2.0 & HDCP compliant
• All 2 input ports and 1 output port support HDMI2.0
data rate up to 6Gb/s
• Metal housing for better RF shielding
PACKAGE CONTENTS
• 1 x 2×1 USB HDMI 2.0 KVM SWITCH 4KX2K
• 1 x Power Adapter
• 1 × User Manual
COMPATIBILITY
• Windows, Mac, Linux computers
• Game consoles, Blu-Ray DVD players,
and other electronic devices

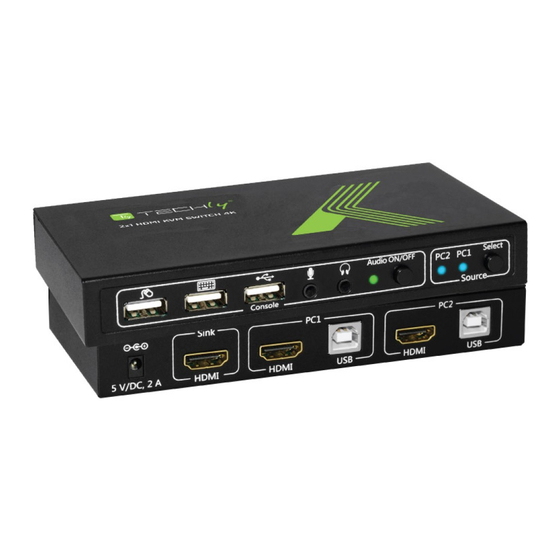

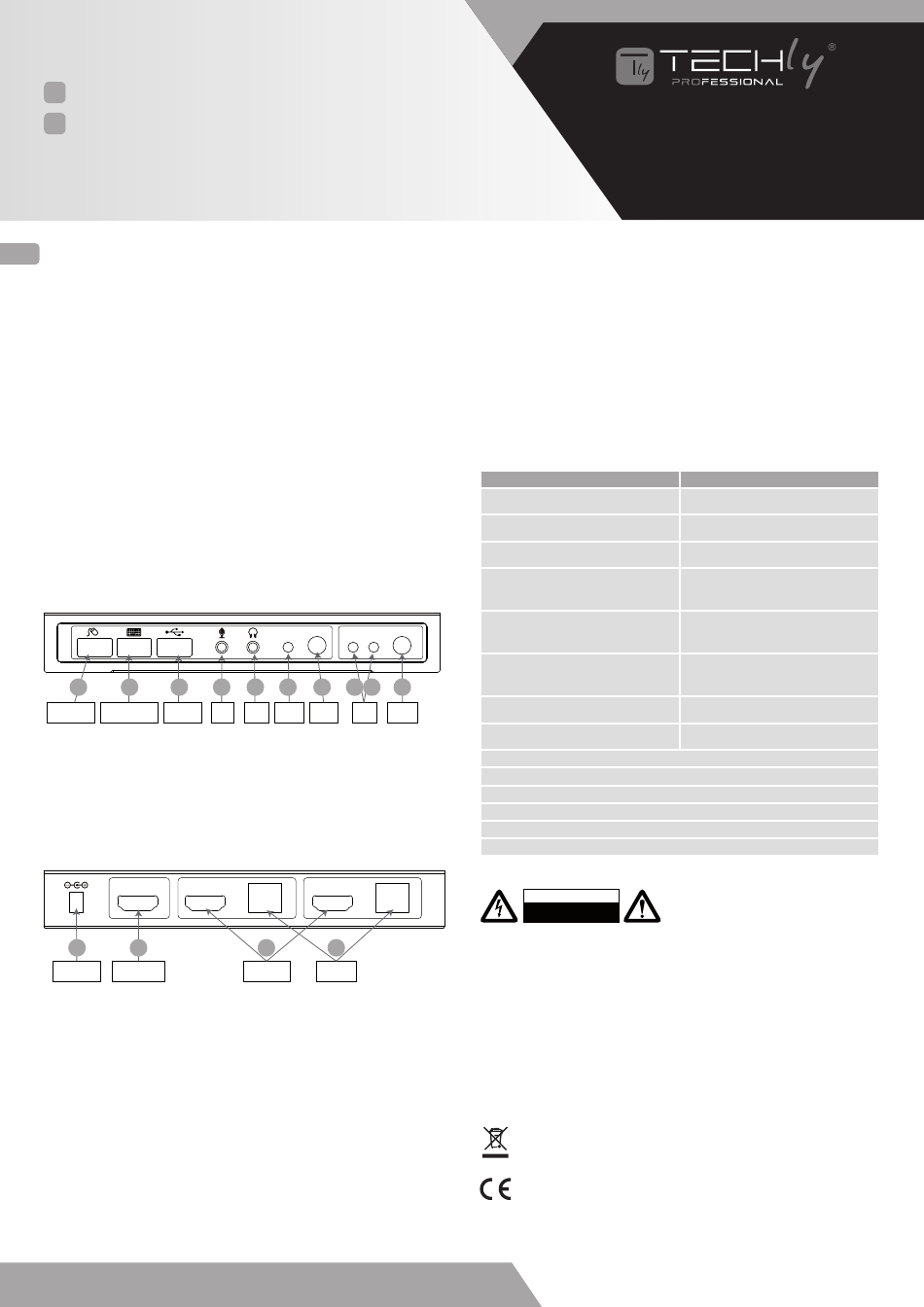

LAYOUT
Console
A B C
USB Mouse USB Keyboard USB Port
Port Port
A. USB Mouse Port: connect to USB mouse devices
B. USB Keyboard Port: connect to USB keyboard devices
C. USB Port: connect to other USB devices
D. MIC: connect to microphone
E. Audio out: connect to earphone
F. Audio LED: audio ON/OFF Indication
G. Audio Switch: switch to enable/disable the MIC/Audio out function
H-I. Port LED: indicate which HDMI source is selected
J. Port Select: switch between the HDMI sources
Sink
HDMI HDMI
5V/DC 2A
K L
Power Jack HDMI Output
K. Power Jack: connect to the included power adapter
L. HDMI Output: connect to HDMI Display
M. HDMI Input: connect to source device's HDMI
N. USB Port: connect to PC's USB port
HARDWARE INSTALLATION
1. Power off all devices you plan to connect to the 2×1 USB HDMI
KVM Switch 4Kx2K.
2. Connect a monitor/display to HDMI OUTPUT of the switch
by an HDMI cable.
3. Connect a USB keyboard and a USB mouse to USB keyboard
and Mouse Ports of the switch.
4. Connect the computer's HDMI connector to the switch's INPUT
1 connector using the HDMI cable.
5. Connect the computer's USB port to the switch's PC1 connector
(USB Type B) using the included USB cable.
6. For the second computer, follow steps 4 to 5 to connect
the preferred system/device to INPUT 2 and PC2.
Source
Audio ON/OFF
PC2 PC1
D E F G H I
MIC Audio Audio Audio Port
out LED Switch LED
PC1 PC2
USB HDMI USB
M N
HDMI Input USB Port
7. Optional: Connect other USB peripherals you wish to share
between the connected computers/devices to the extra USB
ports on the switch.
8. Connect the power adapter into the switch's Power Jack.
9. Power up the first computer/device and wait until it is fully
booted up. Make sure the keyboard and mouse work properly.
10. Once the first computer system is successfully setup, press the
Switch button and power up the second computer/device to
verify the setup properly; proceeding in the same way also for
next computers.
11. The installation is complete and the 2x1 USB HDMI KVM
Switch is ready for use.
HOTKEY
Follow the hotkey command listed below for selected operating
functions:
COMMAND
Scroll Lock + Scroll Lock
Scroll Lock + Scroll Lock+[Enter]
Scroll Lock + Scroll Lock+ [N]
Scroll Lock + Scroll Lock+ P + W + [0/1]
Scroll Lock + Scroll Lock + P + L + U + G + [0/1]
Select
Scroll Lock + Scroll Lock + B + [0/1]
J
Port
Scroll Lock + Scroll Lock + S
Select
Scroll Lock + Scroll Lock + U + [Enter]
Note:
(*): the buzzer sound:
Hotkey Active: 1 beep
Error: 2 Beeps
(**): space bar of keyboard to stop auto-scan
Any key of keyboard to stop auto-scan and jump to current scan port (not include space bar)
SAFETY PRECAUTIONS
AT T E N Z I O N E
RISCHIO DI SCOSSE ELETTRICHE
NON APRIRE
technician when service is required. Disconnect the product from
mains and other equipment if a problem should occur. Do not
expose the product to water or moisture.
MAINTENANCE:
Clean only with a dry cloth.
Do not use cleaning solvents or abrasives.
WARRANTY:
No guarantee or liability can be accepted for any changes and
modifications of the product or damage caused due to incorrect
use of this product.
This product is marked with this symbol. It means that used electrical and
electronic products should not be mixed with general household waste.
There is a separate collections system for these products in compliance
with EU Directive WEEE.
With the CE sign, Techly® ensures that theproduct is conformed to the
basic European standards and directives.
All rights reserved. All trademarks and trade names are those of their
respective owners. TECHLY® - Viale Europa 33 - 33077 Sacile (PN) - Italy
2X1 USB HDMI 2.0
KVM SWITCH 4KX2K
FUNCTION
Start Hotkey mode
Port switch to next active port
Port switch to desired port N (1 ~ 4)
Port switch with host USB power detected
1 - Enable
0 - Disable (Default)
Port switch when new host plug in
1 - Enable
0 - Disable (Default)
Buzzer sound On/Off control
1 - Enable (Default) (*)
0 - Disable
Auto-scan On (**)
Reboot and enter IAP mode to update firmware
To reduce risk of electric shock,
this product should ONLY be
opened by an authorized
WWW.TECHLY.COM
