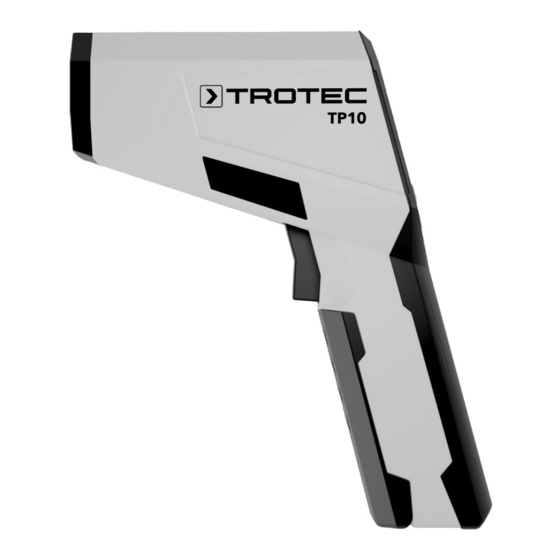

- Page 1 TP10 OPERATING MANUAL PYROMETER...
-
Page 2: Table Of Contents
People who use this device must have read and understood the operating manual, especially the Safety chapter. To use the device for its intended use, only use accessories and spare parts which have been approved by Trotec. pyrometer TP10... -
Page 3: Information About The Device
The device must not be pointed at people. Do not use the device in potentially explosive atmospheres, for measurements in Device description liquids or at live parts. Trotec accepts no liability for damages The pyrometer TP10 uses an infrared sensor to measure surface resulting from improper use. - Page 4 Iron, oxidized 0.5 to 0.9 Textiles (non-metal) 0.95 Iron, rusted 0.5 to 0.7 Titanium, oxidized 0.5 to 0.6 Enamel varnish, black 0.95 Clay 0.90 to 0.95 Earth 0.92 to 0.96 Water 0.93 Paint (not alkaline) 0.90 to 0.95 pyrometer TP10...
- Page 5 Min/Dif indication Measurement value display Max/Avg indication Indication of the emission value Designation Display F3 button Mode button F1 button F2 button Battery compartment with cover Measurement button Infrared sensor Laser pointer Miniature contact pin connection USB port pyrometer TP10...
-
Page 6: Transport And Storage
± 1.5 %, ± 3 °C (5 °F) Repeatability ± 1.5 % Operating conditions 0 °C to 50 °C (32 °F to 122 °F), 10 to 90 % RH Storage conditions -10 °C to 60 °C (-2 °F to 140 °F), < 80 % RH pyrometer TP10... -
Page 7: Operation
• Note the 75:1 ratio of the distance to the measuring spot diameter. For accurate measurements the measuring object should be at least twice as large as the measuring spot. pyrometer TP10... - Page 8 ð The menu is shown on the display. 3. Press the F1 button (4). 8. Press the Mode button (3) to return into measuring mode. ð Continuous measurement is deactivated. ð The Lit Laser menu is displayed. pyrometer TP10...
- Page 9 2. Press the F3 button (2). ð The Laser indication (13) appears on the display. Info ð The laser pointer is active and will switch on when The device memorizes the selected setting when starting with the next measurement. switching off. pyrometer TP10...
- Page 10 2. Connect the contact sensor to the miniature contact pin connection (10) of the device. ð It takes a few seconds until the sensor is detected. ð During the measurement the contact sensor's measured value is indicated in the lower measurement value display (20). pyrometer TP10...
-
Page 11: Maintenance And Repair
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. pyrometer TP10... - Page 13 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
