3 Connection & Installation
This section provides information about the connection and installation of Amcrest POE Bullet
Cameras.

3.1 Connection Guide

The camera initially should be connected via the following method:
In addition to connecting the camera to a computer, the camera can also be connected to a
power source, by connecting the power cable to both a power outlet, and the camera.
Note: If the camera is using a PoE (Power over Ethernet) connection, DO NOT connect the camera
to a power source, otherwise this can result in a major malfunction.

3.2 Installation Guide

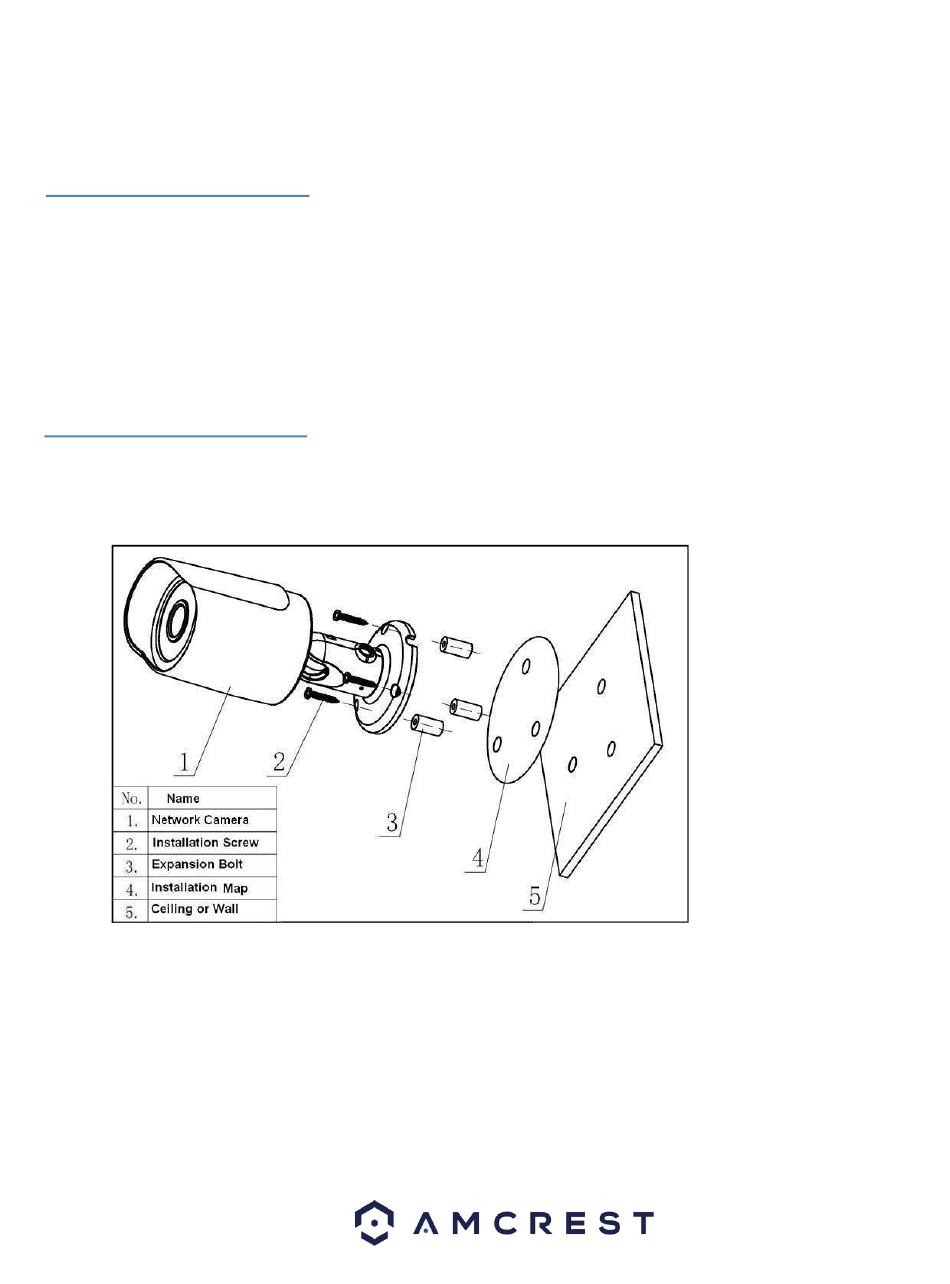

Follow the steps and use the diagram in this section to install the POE cameras.
Note: Prior to installation ensure that the installation environment can support at least 3 times
the weight of the camera.
1. Stick the installation sticker on the designated surface where the device will be installed (wall
or ceiling).
2. Drill 3 holes through the holes on the installation sticker.
3. Open the accessories bag and take out the expansion bolt and insert it into the holes.
4. Open accessories bag and take out the screws. Tighten the 3 screws to fix the device on the
installation surface
(wall or ceiling).
5. Loosen the sunshade screw to move it around to the desired position, then tighten the screw
to lock it into place.
