USER MANUAL
CRYOLYS
Evolution
®

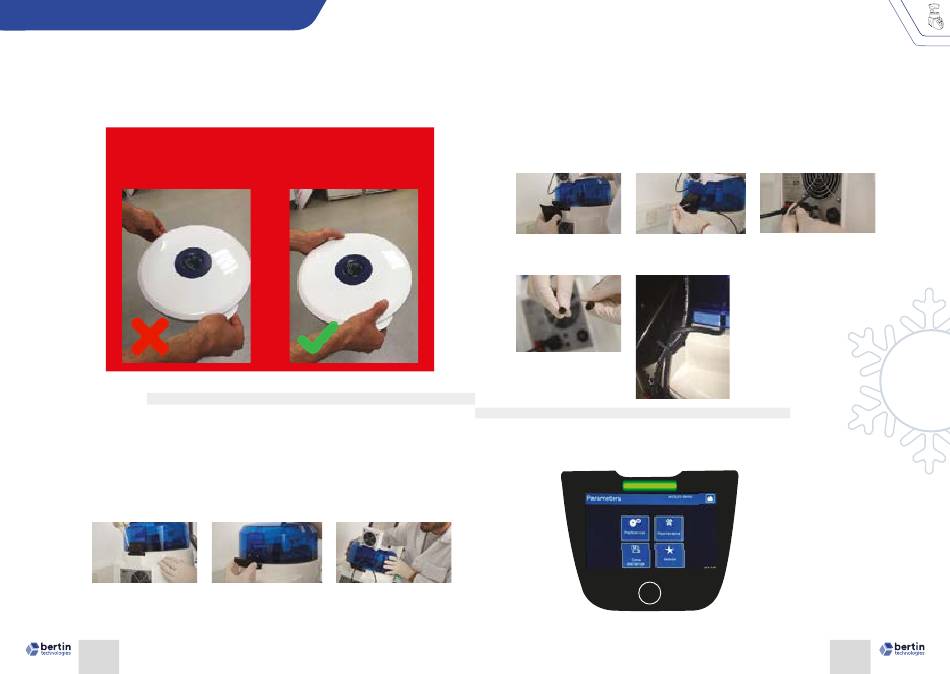

Do not hold the Cryolys® Evolution by its cover
3.1.3.
Installing the Cryolys® Evolution
Note: Make sure the Precellys® Evolution Touch is disconnected from the
power supply before installation.
Required tool: No 5 Allen (hex) key
1. Unscrew the 2 screwson
the cover of thePrecellys®
Evolution
Page
12
CAUTION - IMPORTANT
2. Detach the hinge and
3. First remove the cooling
remove the originalcover
module and thenplace the
lid on top ofthe Precellys®
Evolution
4. Insert the hinge
5. Gently tighten the 2
reinforcement into
screws supplied
the hinge screw holes
with the cover
7. Attach the fan and board interface cables to the hinge
reinforcement using thecable tie provided.
3.1.4.
Updating the software
In order to optimize the use of your instrument, we recommend always
having the latest available software version. You can check the installed
software version via the instrument's «settings» menu.
Precellys Evolution Touch
-
Figure 3: Precellys® Evolution Touch «settings» menu
6. Connect both fan and
temperature sensor connectors to
their respective connections at the
back of thePrecellys® Evolution.
Page
13
