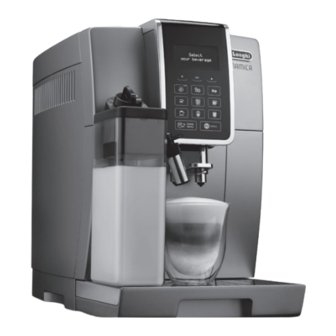

DeLonghi ECAM35075 Manual

Fully automatic espresso and coffee machine
Hide thumbs Also See for ECAM35075:
Table of Contents

Advertisement

Quick Links

Download this manual
De'Longhi Appliances via Seitz, 47 31100 Treviso Italy www.delonghi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECAM35075 and is the answer not in the manual?

Questions and answers

Related Manuals for DeLonghi ECAM35075

Summary of Contents for DeLonghi ECAM35075

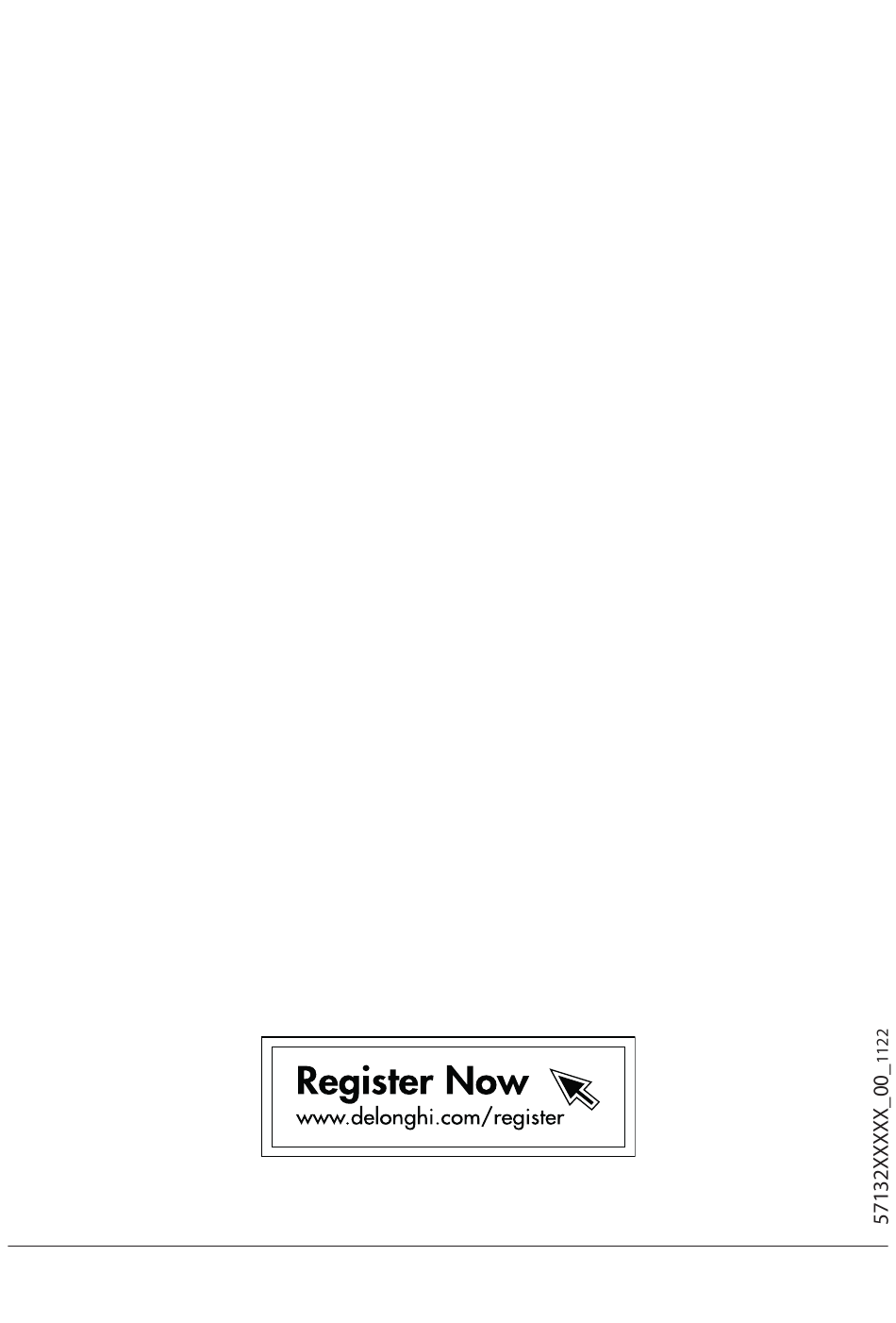

  • Page 1 De’Longhi Appliances via Seitz, 47 31100 Treviso Italy www.delonghi.com...
  • Page 2 ECAM35075 FULLY AUTOMATIC ESPRESSO AND COFFEE MACHINE Instructions for use. Keep these instructions Visit www.delonghi.com for a list of service centers near you. ELECTRIC CHARACTERISTICS 120 V~ 60 Hz 1250 W MACHINE À CAFÉ Mode d’ e mploi . Conservez cette notice Visitez www.delonghi.com pour y voir une liste...
  • Page 4 page 6 page 25 Pàg. 47...

  • Page 5: Table Of Contents

    CONTENTS 13.9 Cleaning the brewing group ......16 13.10 Cleaning the milk container ......17 1. INTRODUCTION ..........6 13.11 Cleaning the hot water nozzle .....18 1.1 Letters in brackets .........6 14. DESCALING ..........18 1.2 Troubleshooting and repairs ......6 15. SETTING WATER HARDNESS ...... 19 2.
  • Page 6 I M P O R T A N T S A F E G U A R D S When using electrical appliances, basic safety precautions should always be followed, including the following. • Read all instructions carefully. • Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the machine.

  • Page 7: Introduction

    1. INTRODUCTION B1. Display: guides the user in using the appliance. The current selection is at the center between two dotted lines. Thank you for choosing this bean to cup espresso and cappuccino B2. ▼ Selection arrow (“ESC”: when programming drinks, press machine.

  • Page 8: Setting Up The Appliance

    3. SETTING UP THE APPLIANCE 4. Check that the hot water spout (C6) is inserted on the con- nection nozzle (A8) (fig. 4) and place a container holding a Please note: minimum of 100 ml underneath (fig. 5); • The first time you use the appliance, rinse with hot water all removable accessories which may come into contact with water or milk.

  • Page 9: Turning The Appliance Off

    • Prg. drinks; • Prg. My drinks; • General: Set temperature, Water hardness, Auto-off, Energy saving, Beep, Default drinks, Default values; Statistics. • 6.1 Language To modify the language of the display (B1), proceed as follows: After heating, the message “Rinsing” is displayed, together with 1.

  • Page 10: Program My Drinks

    5. Drinks with coffee: “Program intensity” appears on the • Auto-off (standby): display: press the selection arrows (B2) and (B4) or Auto-off can be set so that the appliance goes off after 15 or 30 (B7) until the required intensity is selected (see section minutes, or 1, 2 or 3 hours “8.4 Temporarily varying the coffee intensity”), then press 4.

  • Page 11: Statistics

    • Default values: However, if after the first few attempts it becomes apparent that Use this function to reset all the appliance and drink settings the coffee is either too weak and not creamy enough, or emerg- (apart from the language which remains as selected the first es too slowly (drop by drop), this can be corrected by adjusting time the appliance was used).

  • Page 12: Temporarily Varying The Coffee Intensity

    ≃ 120 ml from ≃80 Doppio+ to ≃180ml ≃ 40 ml 2 Espresso x 2 cups ≃ 120 ml 2 Espresso Lungo x 2 cups ≃ 30 ml 2 Ristretto x 2 cups 5. Preparation begins. A progress bar appears on the display (B1) and gradually fills as preparation proceeds.

  • Page 13: Preparing Coffee With Pre-Ground Coffee

    ≃ 160 ml X-STRONG Long (B10) Drinks with coffee selectable from the (see “8.5 Preparing coffee (B14) with pre-ground coffee”) ≃ 120 ml Espresso lungo Please note: ≃ 30 ml • The variation in intensity is not saved and the next time a Ristretto drink is delivered automatically, the appliance selects the 5.

  • Page 14: Making Cappuccinos And Milk-Based Coffees

    10. MAKING CAPPUCCINOS AND MILK-BASED 6. Attach the container to the connection nozzle and push as far as it will go (fig. 18). The machine emits a beep (if COFFEES enabled); Please note: • To avoid milk with poor froth or large bubbles, always clean the milk container lid (D2) and hot water connection noz- zle (A8) as described in sections “10.4 Cleaning the milk container after use”, “13.10 Cleaning the milk container”...

  • Page 15: Making Milk Drinks Automatically

    10.3 Making milk drinks automatically 3. Turn the froth adjustment dial (D1) to “CLEAN” (fig. 21). A progress bar appears and gradually fills as the operation 1. Fill the milk container (D) and attach it as described above; proceeds. Cleaning stops automatically; 2.

  • Page 16: Delivering Hot Water

    12. DELIVERING HOT WATER • performing 2/3 rinse cycles by pressing (B5); • release hot water for a few seconds (section “12. Delivering Important! Danger of scalding. hot water”). Never leave the machine unattended when hot water is being Please note: released.

  • Page 17: Cleaning The Drip Tray And Condensate Tray

    13.4 Cleaning the drip tray and condensate tray is not dirty. If necessary, remove coffee deposits with the brush (C5) (certain models only) and a sponge; Important! 2. Remove all residues with a vacuum cleaner (fig. 25).. The drip tray (A15) is fitted with a level indicator (A13) (red) showing the amount of water it contains (fig.

  • Page 18: Cleaning The Milk Container

    13.10 Cleaning the milk container Clean the milk container (D) after use, every time that milk is prepared, as described below: 1. Remove the lid (D2); 2. Remove the milk spout (D5) and intake tube (D4) (fig. 30); 4. Press the two colored release buttons inwards and at the same time pull the brewing group outwards (fig.

  • Page 19: Cleaning The Hot Water Nozzle

    13.11 Cleaning the hot water nozzle Each time you prepare milk, clean the connection nozzle (A8) with a sponge to remove milk residues from the gaskets (fig. 22). 14. DESCALING Important! • Before use, read the instructions and the labeling on the descaler pack (included with certain models and/or can be purchased from authorized Customer Services).

  • Page 20: Setting Water Hardness

    • The appliance may request descaling cycles at very short intervals. This is normal and due to the appliance’s ad- vanced control system. 15. SETTING WATER HARDNESS The descaling alert is displayed after a period of time estab- lished according to water hardness. The machine is set by default for a hardness level of 4.

  • Page 21: Installing The Filter

    16.1 Installing the filter 1. Remove the filter (C4) from the packaging. The date indica- tor disk varies according to the filter provided. 2. Turn the date indicator disk (fig. 35) until the next 2 months of use are displayed. 0,5 L When you install the filter you must notify the appliance of its presence.

  • Page 22: Removing The Filter

    Please note! De’Longhi reserves the right to modify the technical specifica- After two months (see date indicator) or when the appliance has tion and styling of its products at any moment, without com- not been used for 3 weeks, you should replace the filter even if promising their functionality and quality.
  • Page 23 DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY Add pre-ground coffee The pre-ground coffee function has been se- Place pre-ground coffee in the funnel (fig. 12) lected without placing any pre-ground coffee or deselect the "pre-ground" function. in the funnel (A4). A LONG coffee with pre-ground coffee has Put one level measuring spoon of pre-ground been requested coffee into the pre-ground coffee funnel (A4)
  • Page 24 DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY Turn froth adjustment dial The milk container (D) has been inserted with Turn the froth adjustment dial to one of the the froth adjustment dial (D1) in the "CLEAN" milk froth positions. position. Descale The machine must be descaled. The descaling procedure described in section ESC to cancel “14.

  • Page 25: Troubleshooting

    18. TROUBLESHOOTING Some possible malfunctions are listed below. If the problem cannot be resolved as described, contact customer services. PROBLEM POSSIBLE CAUSE REMEDY The coffee is not hot. The cups were not preheated. Warm the cups by rinsing them with hot water (Please note: you can use the hot water function).
  • Page 26 PROBLEM POSSIBLE CAUSE REMEDY The milk does not come out of The lid (D2) of the milk container lid is dirty Clean the milk container lid as described in sec- the milk spout (D5) tion “13.10 Cleaning the milk container” The milk contains large The milk is not cold enough or is not Use skimmed or semi-skimmed milk at refrig-...
