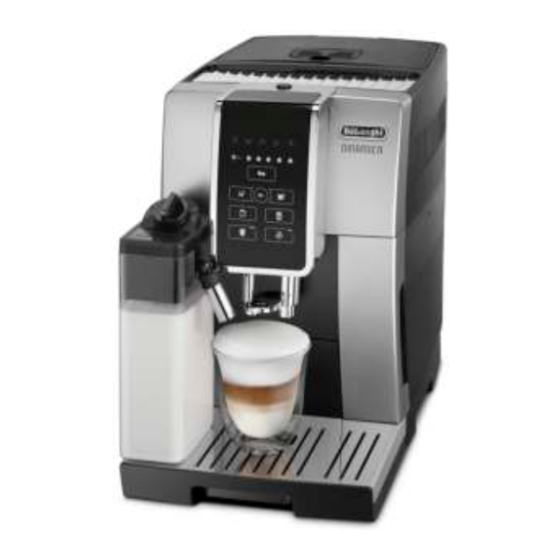

- Page 1 ECAM35X.50 BEAN TO CUP ESPRESSO AND CAPPUCCINO MACHINE Instruction for Use Instructions videos available at: http://ecam35050.delonghi.com/...
- Page 3 page 4...
-
Page 4: Table Of Contents
CONTENTS 16.9 Cleaning the infuser ........14 16.10 Cleaning the milk container ......15 1. INTRODUCTION ..........5 16.11 Cleaning the hot water nozzle .....15 1.1 Letters in brackets .........5 17. DESCALING ..........15 1.2 Troubleshooting and repairs ......5 18. SETTING WATER HARDNESS ...... 17 2. -
Page 5: Introduction
1. INTRODUCTION 2.2 Description of control panel Thank you for choosing this bean to cup espresso and cappuccino (page 2 - B ) machine. A number of icons on the touch screen have a double function. This We hope you enjoy using your new appliance. Take a few min- is indicated in brackets in the description. -
Page 6: Setting Up The Appliance
D4. Milk intake tube D5. Frothed milk spout (adjustable) 3. SETTING UP THE APPLIANCE Please note: • The first time you use the appliance, rinse with hot water all removable accessories which may come into contact with water or milk. •... -
Page 7: Turning The Appliance Off
medium high 5. Press the OK icon (B15) to confirm (or ESC (B14) to exit without making any change). The lights go off. The appliance returns to "standby" and the temperature is now programmed. 8. AUTO-OFF THE time can be changed so that the appliance switches off after The machine proceeds to run a rinse cycle;... -
Page 8: Beep
3) To interrupt the function manually, press OK again. 5. Press the OK icon (B15) to confirm (or ESC (B14) to exit without making any change). The lights go off. Please note: The energy saving setting is now programmed. • If the appliance is not used for more than 3-4 days, when switched on again, we strongly recommend performing Please note:... -
Page 9: Making Coffee Using Coffee Beans
13.3 Making coffee using coffee beans 5. Preparation begins and the indicator corresponding to the selected icon blinks on the touch screen (B). Important! Please note: Do not use green, caramelised or candied coffee beans as they • To make 2 cups of "espresso" at the same time: could stick to the coffee mill and make it unusable. -
Page 10: Preparing Coffee With Pre-Ground Coffee
13.5 Preparing coffee with pre-ground coffee 1. Place a sufficiently large cup or glass under the coffee spouts (A19); Important! 2. Press (B8) to select the desired aroma (see section • Never add pre-ground coffee when the machine is off or it “13.4 Temporarily varying the coffee aroma”);... -
Page 11: Adjusting The Amount Of Froth
4. Place the lid back on the milk container; Dial Description Recommended for… 5. Remove the hot water spout (C6) from the nozzle (A8) (fig. position 15); No froth HOT MILK (not frothed) 6. Attach the container to the connection nozzle and push as far as it will go (fig. -
Page 12: Cleaning The Milk Container After Use
3. Release the icon: the icon blinks and the appliance starts 15. DELIVERING HOT WATER delivering the beverage; Important! Danger of scalding. 4. Once the amount of liquid in the cup is as desired (milk Never leave the machine unattended when hot water is being and/or coffee), press the selected icon a second time: the released. -
Page 13: Cleaning The Coffee Grounds Container
Please note: Water may find its way into the grounds container (A11) during the above rinse procedure: this is quite normal. 16.3 Cleaning the coffee grounds container When the indicator light (B2) appears on the touch screen, the container must be emptied and cleaned. The appliance can- not be used to make coffee again until the grounds container (A11) has been cleaned. -
Page 14: Cleaning The Water Tank
16.6 Cleaning the water tank 1. Clean the water tank (A17) regularly (about once a month) and whenever the water softener filter (C4) is replaced, using a damp cloth and a little mild washing up liquid; 2. Remove the filter (C4) and rinse under running water; 3. -
Page 15: Cleaning The Milk Container
1. Remove the lid (D2); 17. DESCALING 2. Remove the milk spout (D5) and intake tube (D4) (fig. 28); Important! • Before use, read the instructions and the labelling relative to the descaler product, which are indicated on the pack (includ- ed with certain models and/or available for purchase from authorized service centres). - Page 16 4. Place an empty container with a minimum capacity of 1.8 10. When the water in the tank has run out, empty the con- litres under the hot water spout (C6) and coffee spouts (A9) tainer used to collect the rinsing water; 11.
-
Page 17: Setting Water Hardness
pending on the hardness of the water. Each square corre- Please note sponds to 1 level; The filter lasts about two months if the appliance is used nor- mally. If the coffee machine is left unused with the filter in- Reagent strip Water Corresponding... -
Page 18: Replacing The Filter
19.2 Replacing the filter After two months (see date indicator) or when the appliance has not been used for 3 weeks, you should replace the filter: 1. Extract the tank (A17) and exhausted filter (C4); 2. Take the new filter out of its pack and proceed as illustrated in points 2 to 10 of the previous section. -
Page 19: Explanation Of Lights
21. EXPLANATION OF LIGHTS LIGHTS DISPLAYED POSSIBLE CAUSE REMEDY The machine is warming up or cooling Wait down. BLINKING The coffee maker is ready for use. Proceed with selection of the desired beverage and the relative options. PERMANENTLY ALIGHT Insufficient water in the tank (A17). Fill the tank and position it correctly, pushing it fully home so that it clicks into place. - Page 20 LIGHTS DISPLAYED POSSIBLE CAUSE REMEDY The hot water spout is not inserted, or is Attach the water spout securely, pushing fully inserted incorrectly. home. BLINKING The milk container is not inserted Position the milk container securely, pushing correctly. fully home. The milk container has been inserted Turn the froth adjustment dial to one of the milk with the froth adjustment dial in the...
- Page 21 INDICATOR LIGHTS DISPLAYED POSSIBLE CAUSE REMEDY The coffee beans have run out Fill the beans container (A3) (fig. 9). PERMANENTLY ALIGHT The pre-ground coffee funnel is clogged Empty the funnel with the help of the brush (C5) (A2). as described in section "16.8 Cleaning the pre- ground coffee funnel".
-
Page 22: Troubleshooting
INDICATOR LIGHTS DISPLAYED POSSIBLE CAUSE REMEDY Descaling has been interrupted. The procedure must be completed before the machine can be used. Press the OK icon PERMANENTLY ALIGHT (B15) to start the procedure. BLINKING 22. TROUBLESHOOTING Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact customer services. - Page 23 PROBLEM POSSIBLE CAUSE REMEDY The coffee is delivered too The coffee is ground too finely. Turn the grinding adjustment dial (A5) one slowly or a drop at a time. click clockwise towards "7" while the coffee mill is in operation (fig. 7). Continue one click at a time until coffee delivery is satisfactory.
- Page 24 De’Longhi Appliances via Seitz, 47 31100 Treviso, Italy www.delonghi.com...
