ETC Quick Guide
Source Four LED Series 3
Overview

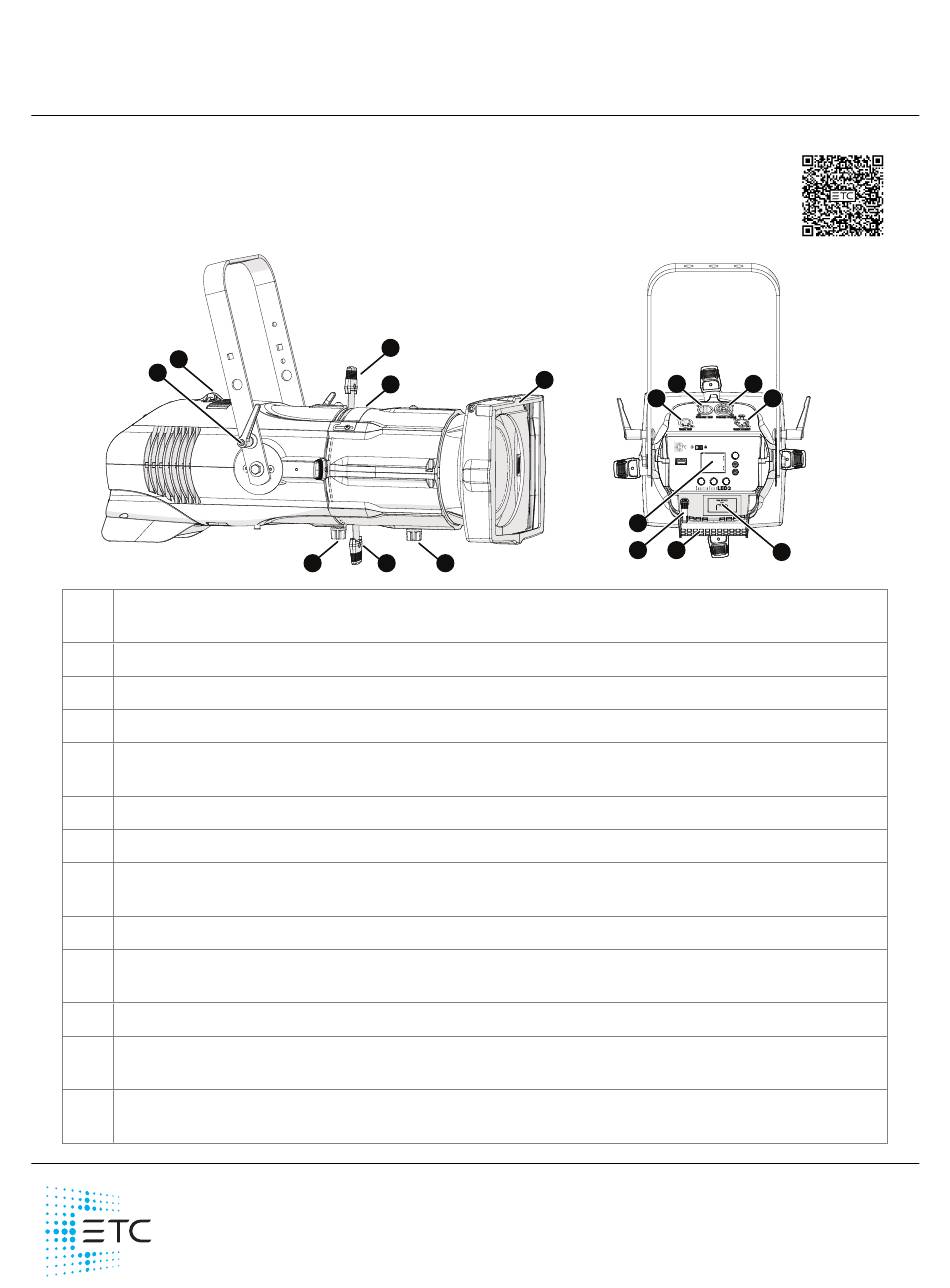

Use the images below as a guide to connect power and data and to navigate the basic
features of the fixture. For complete information, download the Source Four LED
Series 3 User Manual at etcconnect.com, or view online help by scanning this code.
B
A
A
Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position.
If necessary, pull the tilt-lock away from the stem to adjust the tilt-lock position.
B
Safety cable attachment point: Attach safety cable to the fixture housing.
C
Barrel rotation knob: Loosen to rotate the barrel, and then tighten to secure it.
D
Shutters: Use four framing shutters to shape the beam.
E
Pattern holder slot and accessory slot: Insert an A-size, B-size, or glass pattern holder, and insert
an accessory, such as a drop-in iris or motorized pattern device.
F
Beam focus knob: Loosen to adjust the lens tube position, and then tighten to secure it (
G
Accessory holder: Insert a color frame or other accessory, and then lock the holder.
H
Power In and Power Thru connectors: powerCON
power thru (
I
DMX In and DMX Thru connectors: Five-pin XLR connectors for DMX/RDM in and thru.
J
User interface: View the fixture status, set the DMX address and mode, or set stand-alone
options.
K
Antenna: For use when controlling the fixture using wireless DMX.
L
Handle: Use when focusing or carrying the fixture, but do not use as a safety cable connection
point.
M
NFC (Near Field Communication) tag: Use the Set Light app to wirelessly configure the fixture,
with or without power applied to the fixture.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX | © 2023 Electronic Theatre Controls, Inc.
Web
Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7462M1300-1.3.0 Rev A Released 2023-11
D
E
C
D
page 5
).
etcconnect.com
| Support
support.etcconnect.com
etcconnect.com/ip
Source Four LED Series 3,
shown with 26° XDLT lens tube
G
F
®
TRUE1 TOP connectors for power in and
| Contact
etcconnect.com/contactETC
| Third-party license agreement
H
H
I
I
J
K
L
M
page 5
info: etcconnect.com/licenses
).
