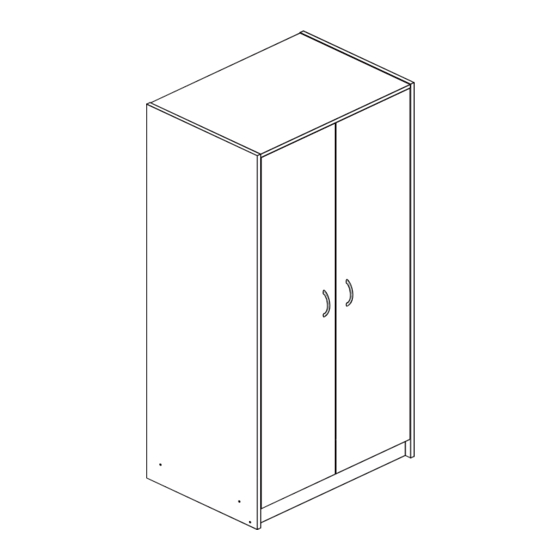

Mix and Match - 2 Door Robe

Assembly Instructions -

Dimensions

Width - 68.5cm

Depth - 49.5cm

Height - 167cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

709/0439

709/2509

709/2499

MADE IN

BRITAIN

Issue 3 - 11/12/12

Need help?

Do you have a question about the Mix and Match 709/0439 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Mix and Match 709/0439

Page 1 Mix and Match - 2 Door Robe Assembly Instructions - 709/0439 Please keep for future reference 709/2509 709/2499 Dimensions Width - 68.5cm Depth - 49.5cm MADE IN Height - 167cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 3 - 11/12/12...
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 38kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D0003A) (670 x 492mm) Base (D0004A) (670 x 478mm) Left Side 2 Right Side Plinth (D0884A)
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side Fit 3 hinge plates onto the left side , making sure that the slot is Finished facing towards the front edge...
Page 6 Assembly Instructions Step 3 Prepare the top Tap 2 wooden dowels into the top shown. 10mm Note: Wooden dowels Finished must not stick out from front edge the edge by more than Note: The top has been 10mm or they may finished on both surfaces.
Page 7 Assembly Instructions Step 6 Plain chipboard surface Prepare the base Tap 2 wooden dowels into the plinth shown. Step 7 Fit the plinth Push the plinth onto the right side secure with screw Step 8 Fit the left side Push the left side onto the assembly and secure with 5 screws...
Page 8 Assembly Instructions Step 9 Fit the back panel The measurement from top corner X to bottom corner X must be Square up the unit by equal to the measurement from top corner Y to bottom corner Y making sure that measurement x to x equals y to y.
Page 9 Assembly Instructions Step 10 Fit the hanging rail Push the hanging rail into the rail holders fitted to the side panels Step 11 Prepare the doors Push fit 3 hinges into each of the doors Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are...
Page 10 Assembly Instructions Step 12 Fit the doors and the handles 2 people are needed here Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate Keep the hinge FLAT against the hinge...
Page 11 Assembly Instructions Step 13 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
Page 12 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2786...
