Summary of Contents for Argos AH MAINE 609/2555

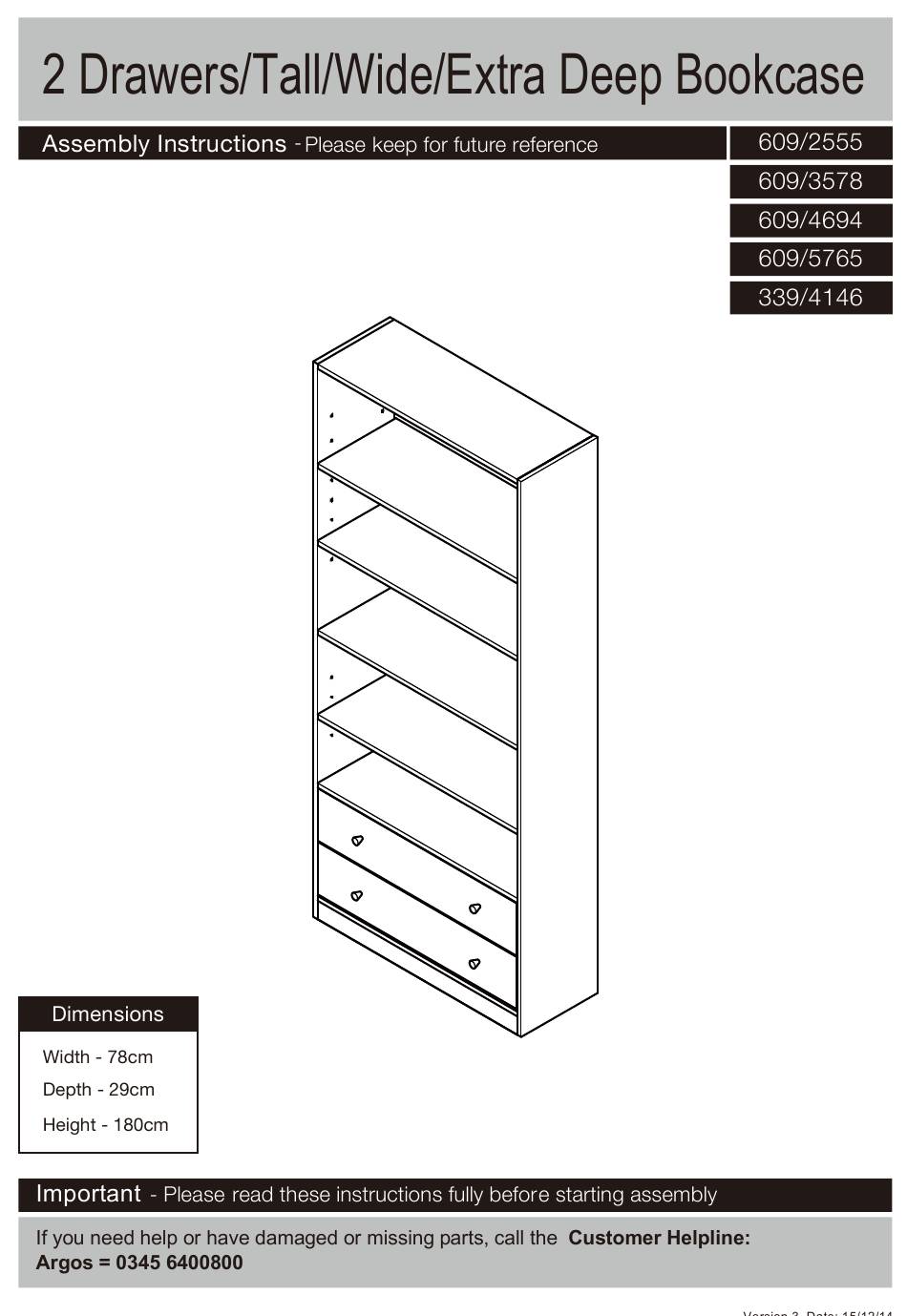

  • Page 14 2 Drawers/Tall/Wide/Extra Deep Bookcase Assembly Instructions 609/2050 - Please keep for future reference 609/2548 609/2555 609/3578 Dimensions Width - 78cm Depth - 29.1cm Height - 180.1cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Ref.
  • Page 15: Care And Maintenance

    Safety and Care Advice Important – Please read these instructions fully before starting assembly Do not stand on the product, components and tools listed on this could cause damage. recommend the pages 2 and 3. use of power drill/drivers for inserting screws, room) as possible.
  • Page 16 Components - Panels If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Drawer Front Panel x 2 (74.4 x 17cm) Fixed Panel x 2 (74.9 x 28.4cm) Drawer Back Panel x 2 (71.7 x 10.6cm) Top Back Panel...
  • Page 17 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. Plastic Support x 4 14mm Screw x 9 30mm Screw x 12 50mm Screw x 12 Support Cover x 12 Shelf Support x 12 Wooden Dowel x 18...
  • Page 18 Assembly Instructions Step 1 Middle Hole Attaching runners Position the Runners in from front edge of the Right Side Panel Slide top of the runners Finished back. front edge Runners on the Right Side Panel Slide top of the Runners Middle Hole forward.
  • Page 19 Assembly Instructions Step 2 Attaching bottom panel Use Plastic Supports and Screws to x the Front Panel onto the Bottom Panel Un nished back edge Place a small amount of Glue into the dowel holes. Insert Wooden Dowels into the Bottom Panel Step 3 Attaching side panels...
  • Page 20 Assembly Instructions Step 3 - continued Finished Finished front edge Caution: Always front edge check the assembly method is correct before applying glue. Place a small amount of Glue onto the joint’s Wooden Dowels Left Side Panel Right Side Panel onto the Fixed Panels Middle Panel...
  • Page 21 Assembly Instructions Step 5 Attaching shelf panel SIide Support Covers onto Shelf Supports lnsert Shelf Supports (Support Covers included) into the unit. before inserting the Shelves. Note: Set the shelf supports to the desired height. Use Screw Covers cover the Screw Heads. Slide the Shelves into the unit.
  • Page 22 Assembly Instructions Step 6 Dawer assembly Fix Drawer Right and Left Side Panels & to Drawer Back Panel using Screws Place a small amount of Glue into the groove on the Drawer Side Panels and Drawer Bottom Panel. Carefully slide the Drawer Bottom into the unit.
  • Page 23 Assembly Instructions Step 7 Inserting drawers Slide the assembled drawers fully onto the runners so the runners butt up against the back of the drawer front. From inside each drawer sides into the runners using Screws...
  • Page 24 Assembly Instructions Step 8 Note: Wall plugs supplied are Fixing to wall for solid wall only. wall It is recommended that the be used for your wall, seek professional advice if in doubt wall. Strap onto the back of the top panel. Top panel With help, move bookcase into position.
  • Page 25: A Guide To - Wall Mounting & Fixings

    A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
