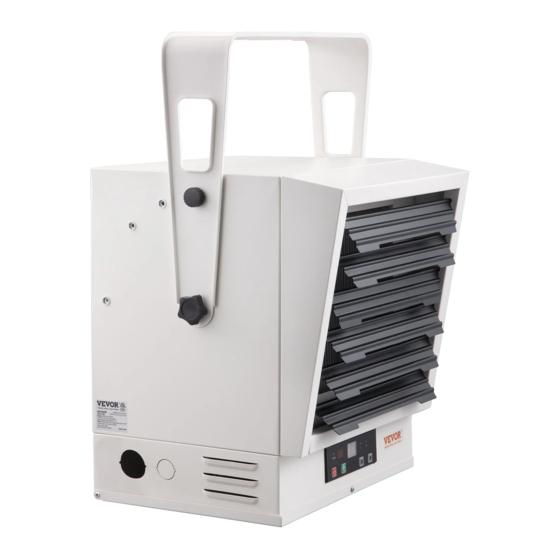

FAN HEATER
USER MANUAL
MODEL: BGP2102-50R BGP2102-75R BGP2102-100R
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR BGP2102-50R
Summary of Contents for VEVOR BGP2102-50R
- Page 1 Technical Support and E-Warranty Certificate https://www.vevor.com/support FAN HEATER USER MANUAL MODEL: BGP2102-50R BGP2102-75R BGP2102-100R We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Important Instructions
Electric Code (Canadian Electrical Code in Canada) and all applicable local codes. Supply wiring must be copper and suitable for at least 75°C. BGP2102-50R - minimum 10 gauge SJO o.r SJTO copper type wiring required. BGP2102-75R - minimum 8 gauge SJO o.r SJTO copper type wiring required. - Page 4 surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the heater. 3. Extreme caution is necessary when any heater is used by or near children, pets, or invalids and when the heater is left unattended.
- Page 5 (FLASHING). CAUTION - Once heater has cycled off on the thermal limit, the heater will not return to operation until the user restarts and reprograms the control. Therefore, this unit is not recommended for freeze-protection applications. 15. When installing, see INSTALLATION INSTRUCTIONS for additional warnings and precautions.
-
Page 6: Specifications
8. Do not use this heater for drying out paint, plaster, sawdust and drywall sanding dust as this will permanently damage the heater and must be kept out of the heater. SPECIFICATIONS (All Specifications 5%-10% tolerance) Volts/Hertz Model No. Watts AC240V/60HZ BGP2102-50R 5000 AC240V/60HZ 7500 BGP2102-75R AC240V/60HZ BGP2102-100R 10000 INSTALLATION INSTRUCTIONS TOOLS NEEDED: •... - Page 7 NOTE: Hardware supplied is intended for installation into wood framing only. If installed into other type of construction, additional hardware will be required for correct installation. CONNECTORS, CABLE AND HARDWARE USED TO WIRE THE HEATER: Figure 1 LOCATING THE HEATER: The heater should be installed outside traffic areas and at least 6' off the floor.
- Page 8 Figure 2 INSTALLATION INSTRUCTIONS MOUNTING AND MINIMUM CLEARANCES: Figure 3 - 7 -...
- Page 9 Figure 4 INSTALLATION INSTRUCTIONS WARNING: Fall Hazard - Heater must be attached to a joist with 3 screws (5000W & 7500W item) or 6 screws (10000W item) to prevent heater from possibly falling. The screws provided with heater are intended for installing in wood framing only and not intended for metal joists or other types of construction.
- Page 10 2. Determine the desired location for mounting, making sure the minimum clearances as noted in this manual are maintained and using the bracket from the box, place a washer on screws before inserting through the holes in the mounting bracket and screw them securely into a ceiling joist. 3.
-
Page 11: Wiring Instructions
Figure 6 NOTE: For the heater to be tilted vertically, it must be mounted in bottom keyhole slots of mounting brackets to maintain adequate clearance and prevent possible overheating. The louvers are designed so they cannot be completely closed. Do not attempt to bypass this feature damage to the unit can result. - Page 12 voltage more significant than the heater nameplate rating could damage the heater and cause a fire. The heater is provided with a 28.3mm hole in the wiring compartment to route branch circuit conductors. Appropriate conduit and fittings must be provided for correct and safe installation. 1.
- Page 13 Figure 8 Removing wiring cover exposes wires. Connect the hard wire as shown (Figure 8). Setup conduit wires. WIRING INSTRUCTIONS Model No.: BGP2102-50R - 12 -...
- Page 14 Model No.: BGP2102-75R - 13 -...
- Page 15 Model No.: BGP2102-100R WARNING THIS APPLIANCE MUST BE GROUNDED! THE APPLIANCE MUST CONNECT TO A CURRENT PROTECTION CIRCUIT OR DEVICE AT 50AMP OR LESS BEFORE BEING CONNECTED TO POWER SUPPLY! HIGH TEMPERATURES – RISK OF FIRE. KEEP FLAMMABLE MATERIALS, SUCH AS FURNITURE, PILLOWS, BEDDING, PAPERS, CLOTHES, ELECTRICAL CORDS AND CURTAINS AT LEAST 3 FT.
- Page 16 TO REDUCE THE RISK OF FIRE, DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THE HEATER. NOTE: A Certified Electrician must carry out all wiring and follow national and local electrical codes. For specific applications, the conduit may be required. See Figure 1.
- Page 17 5. Adjusting Power Level: Push the MODE button once while the unit is ON. This will activate the power selection mode, and the red light over the “L” or “H” will flash to show the current setting. Use the UP or DOWN Arrow buttons to change from High to Low or Low to High.
- Page 18 heater while it is heating. The fan will continue to run to cool down the heater. 10. To turn off the heater, push the red POWER button. If the heater is operating, the heater will turn off, but the fan will continue running for approximately 3 minutes to allow the heater to cool.
-
Page 19: Maintenance
MAINTENANCE USER CLEANING INSTRUCTIONS: 1. Turn off the power to the heater. 2. After the heater has cooled, a vacuum cleaner with a brush attachment may be used to remove dust and lint from the heater's exterior surfaces, including the grille opening. Compressed air may also blow out dust from the inside heater. - Page 20 The thermostat Display Please call customer sensor is broken shows”E1” service. or disconnected. Inspect the garage heater and check that the air inlets and outlets are not blocked as this may cause The overheat overheating. Switch off the protection has Display circuit breaker to activated.
- Page 21 Make sure the room is well During production dust and/or oil ventilated. Allow the garage debris gathered heater to run until the smell on heating coils. is dissipated. Check and make sure there is no combustible Remove the combustible material within Garage material around the garage 0.9 meters (3...
- Page 22 2. Damage caused by a lack of normal maintenance. 3. Repair by an unauthorized person. 4. Damage caused by connection to an improper voltage. 5. Damaged caused by use outdoors. LIMITATIONS: This warranty does not imply or assume any responsibility for consequential damages resulting from this heating appliance's use, misuse, or lack of routine maintenance.
- Page 23 MADE IN CHINA - 22 -...
- Page 24 Technical Support and E-Warranty Certificate https://www.vevor.com/support...
Need help?
Do you have a question about the BGP2102-50R and is the answer not in the manual?
Questions and answers
Unit will not run. When turned using remote the display shows temp setting for about 4-5 seconds then shows "99" and nothing else happens.
The VEVOR BGP2102-50R unit is not running and displaying "99" after showing the temperature setting because the set thermostat temperature is higher than the current room temperature. The heater will not start until the room temperature drops below the set thermostat temperature.
This answer is automatically generated
Temperature kept resetting itself to 65* and now it won't even let me change it. I just need to keep it above freezing.
To prevent the VEVOR BGP2102-50R from resetting the temperature to 65°F and ensure it stays above freezing, you need to manually adjust the temperature setting. While the heater is ON, press the MODE button twice to activate the temperature selection mode. Then, use the UP or DOWN buttons to set the desired temperature above freezing. After 5 seconds, the display will stop flashing and lock in the selected temperature, ensuring it stays at the set level.
This answer is automatically generated
