Technical Support and E-Warranty Certificate www.vevor.com/support
SAUNA HEATER
USER MANUAL
MODEL:SCA-90BW
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of
savings you might benefit from buying certain tools with us compared to the major top brands and
doses not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when you are placing an order with us if you are actually saving half in comparison with
the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR SCA-90BW
Summary of Contents for VEVOR SCA-90BW
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support SAUNA HEATER USER MANUAL MODEL:SCA-90BW We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: Before Installation

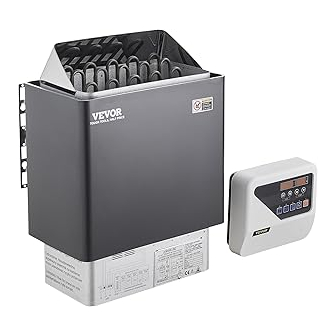

BEFORE INSTALLATION Parts Check that the following parts are included in the packaging: 1. Sauna heater 2. Sauna control panel 3. Temperature sensor unit 4. Bracket screws x 7 (4*12mm 3pcs for sauna control panel ; 6*40mm 2pcs, 6*16mm 2pcs for sauna heater) 5. - Page 5 3．Sauna bath may cause tension of bathers. Thus, those who have one of the symptoms as below, should take sauna bath under direction by physician: A. Being pregnant B. Having heart disease C. Having high blood pressure D. Having circulation system disease E. After drinking F.
- Page 6 - 4 -...
-
Page 7: Specifications
Remark: 1. The upper screws must be fastened tight, the minimum distances between screw head and wall is 3mm. Remark: 2. The wall behind the heater is not allowed to be covered by materials like asbestos cement, asbestos board and so on, because this sort of covering layer could cause high temperature and a risk of burn. - Page 8 INSTALLATION OF TEMPERATURE SENSOR (1) Carefully unload the low cover at the neck position by the edge of circuit board with a screwdriver slotted (2) Fasten the circuit board with bolt to the wall straight over sauna heater.Check diagram for minimum distance(See fig3). (3) Fix the cover to the temperature sensor.
-
Page 9: Limit Control
LIMIT CONTROL Fitted as a safety feature is an overheating controller that prevents the heater, in the eventuality of some fault, like problem from thermostat. Should the temperature in sauna room reach too high,the spare link in the sensor unit automatically cuts off the electricity power. When the temperature is back to normal,the spare link will return to its own position automatically. -
Page 10: Operation Of Control Panel
OPERATION OF CONTROL PANEL The control panel is splash-proof and can be installed in a dry place near sauna room. The temperature sensor unit must be installed to the wall inside the sauna room.Please follow the minimum safety distance of sauna heater during installation(See fig3),which is included in installation diagram. -
Page 11: Sauna Rocks
B. Auto-Stop setting (Min 10mins, Max 4hours): Press “Control time” to adjust the time, then press “H” and “M” to set time, before time table finishing blink. Remark: Step 1, 3.1 and 3.2.A must be operated during unworking of sauna heater; Step 2 and 3.2.B must be operated during working of sauna heater) SAUNA ROCKS Load sufficient sauna rocks(10-15kg) into the sauna heater after finishing... -
Page 12: Troubleshooting
GUARANTEE The following situation are not guaranteed: 1) Installation or dis-assembly of inside structure by unprofessional personnel; 2) Supply voltage fluctuation range>±10%; 3) Unqualified rocks on sauna heater’s operation; 4) Installation without following the dimension instruction inside manual. TROUBLESHOOTING - 10 -... - Page 13 Attached Diagram (Fig 7) - 11 -...
- Page 14 Address:Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Made In China - 12 -...
