Technical Support and E-Warranty Certificate www.vevor.com/support

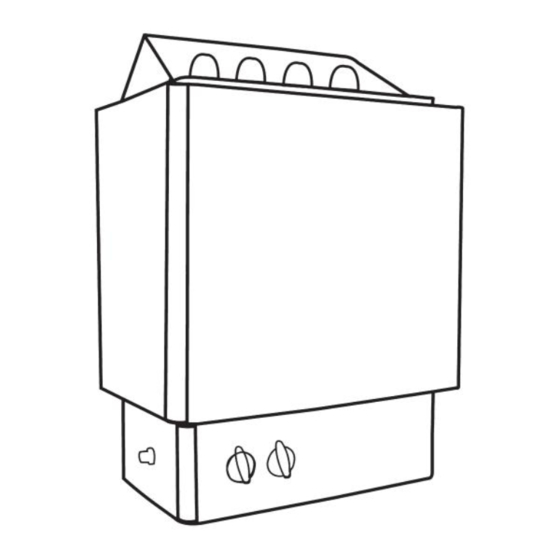

SAUNA HEATER
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR SCA-30NS
Summary of Contents for VEVOR SCA-30NS
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support SAUNA HEATER USER MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Before Installation
BEFORE INSTALLATION Parts Check that the following parts are included in the packaging: 1．Sauna heater 2．Connectors x 3 (Pre-installed inside Junction box) 3．Bracket screws x 4 (6*40mm 2pcs, 6*16mm 2pcs) 4．Fork terminal x 3 WARNING 1．Electrical shock hazard------To avoid electrical shock hazard, all installations and relevant services shall be performed by qualified personnel. -
Page 4: Installation
one of the symptoms as below, should take sauna bath under direction by physician: A. Being pregnant B. Having heart disease C. Having high blood pressure D. Having circulation system disease E. After drinking F. After taking medicine G. Diabetes H. Not feeling well 4．Children must be under the company of adults during sauna bath. -
Page 5: Guard Rail
Noted: the upper screws must be fastened tight, the minimum distances between screw head and wall is 3mm. GUARD RAIL Please follow the minimum distances requirements in figure 6 if guardrail is desired for the heater. - 4 -... -
Page 6: Temperature Control
TEMPERATURE CONTROL The temperature could be controlled by the thermostat inside the sauna heater (figure 3).The thermostat dial shows a rising heat scale.Find the sauna temperature which suits you best(Usually 158-176℉/70-80℃). Sauna room can reach on a preset temperature in 30 to 60 minutes, it depends on the size of sauna room and power of sauna heater. -
Page 7: Specifications
Specifications Sauna room Suggestion Power Power(K Volume(m³) heating time Supply(V Model (28-70℃) /Hz) SCA-30 220/60 20-40min SCA-45 20-40min SCA-60 30-50min SCA-80 30-50min SCA-90 30-50min Above suggested heating time should be achieved, including but not limited to these: 1. Room thermometer installed opposite to the sauna heater,closing to the ceiling. - Page 8 insulated cables are suggested as the connection cables from mains supply to the sauna heater. The junction box inside sauna heater must be of a hermetic,splashing proof type, also including a 7mm diameter drainage hole to prevent moisture and condensation.The junction box should be less than 500mm over the floor.
-
Page 9: Sauna Stones
SAUNA STONES Its recommended that all sauna stones should be rinsed to remove any staines or dust.The largest ones should be loaded at the bottom.Do not load the stones too tight to block air circulation through the sauna heater. New ones should be loaded when the stones get broken or crumbling. Load sufficient sauna rocks(10-15kgs) into the sauna heater after finishing the installation of sauna heater and controller. - Page 10 - 9 -...
-
Page 11: Troubleshooting
TROUBLESHOOTING Address:Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Made In China - 10 -... - Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
