Technical Support and E-Warranty Certificate
www.vevor.com/support

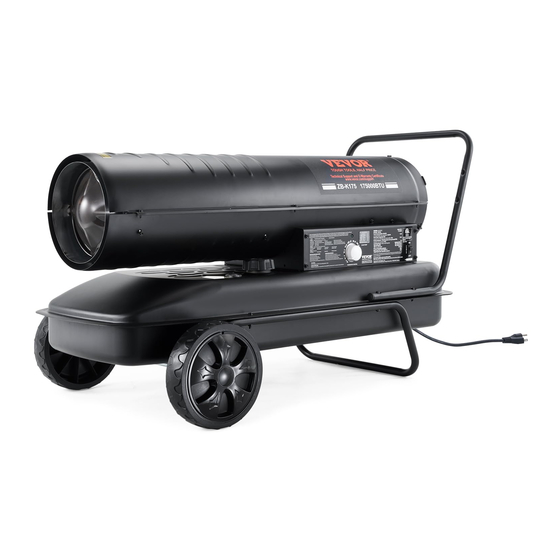

KEROSENE HEATER
MODEL:ZB-K70/ZB-K175/ZB-K215
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR ZB-K70
Summary of Contents for VEVOR ZB-K70
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support KEROSENE HEATER MODEL:ZB-K70/ZB-K175/ZB-K215 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 CONSUMER:Retain this manual for future reference. IMPORTANT: Read and understand all of the directions in this manual before assembling, starting, or servicing the heater. Improper use of this heater can cause serious injury. Keep this manual for future reference. Not suitable for the use of wood floors or other combustible materials.
-
Page 4: Safety Information
Electrical Safety The owner is responsible for checking this electrical product before use to ensure it is safe. You must inspect power cables, plugs, sockets, etc, for signs of wear or damage. You must ensure this electric shock risk is minimized by installing appropriate safety devices. The main distribution board should incorporate a residual current circuit breaker (RCCB). - Page 5 failure to provide proper ventilation can result in death. Early signs of carbon monoxide poisoning resemble the flu. Symptoms of improper ventilation are: * Headache * dizziness * burning of the nose and eyes * nausea * dry mouth * sore throat * For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used, 1-K kerosene has been refined to virtually eliminate contaminants, such as sulfur.
-
Page 6: Risk Of Electric Shock
-ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water, or wind. -ALWAYS unplug the heater when not in use. Minimum clearance from combustibles: Orientation ZB-K70 ZB-K175 ZB-K215 Top（cm) Side（cm) Front（cm) Features Feature1. Model ZB-K70 - 5 -... -
Page 7: Specifications
Figure 2. Model ZB-K175 / ZB-K215 Specifications Model ZB-K70 ZB-K175 ZB-K215 Heat Output 70000 175000 215000 (btu) Fuel Consumption 0.53 1.32 1.62 (Gal/Hr) Fuel Tank Capacity 13.5 13.5 (Gal) Pump Pressure 31.0/4.5 48.0/7.0 52.0/7.5 (Kpa/psi) Power Supply 110/60/1.8 110/60/3.5 110/60/3.5... - Page 8 Pecifications subject to change without notice Figure 3. Product Dimensions ZB-K70 ZB-K175 ZB-K215 (mm) (mm) (mm) Unpacking Remove the heater and all of the packing materials from the shipping carton. NOTE:Save the box and packing materials for future storage. Check the chart below to ensure you have all the parts required to assemble your heater.
- Page 9 Assembly ZB-K70 ZB-K175 ZB-K215 Wheel support frame Wheel ( 2 pieces) Rear Handle Axle Top Handle Screws & Nuts (A) 2 Screws & Nuts (B) 6 each Cotter Pins,Washers Figure 4. Hardware Components Figure 5. Frame Components,Models ZB-K175/ZB-K215 - 8 -...
-
Page 10: Assembling Handle
1.Align the holes in the upper housing with the 2 holes in the handle as shown in Figure 6. 2.Insert and tighten screws securely with screw driver. Figure 6. Handle Mounting, Model ZB-K70 MODELS ZB-K175/ZB-K215 ONLY -Tools required: Medium Phillips screw driver, 5/16’ open end or adjustable wrench, needle nose pliers. -
Page 11: Operation
Do not operate heater without support frame fully assembled to tank. Figure 7. Assembly of Models ZB-K175/ZB-K215 Operation Kerosene (1-K Diesel) For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. 1-K kerosene has been refined to virtually eliminate contaminants, such as sulfur, which can cause a rotten egg odor during the operation of the heater. -
Page 12: Theory Of Operation
NOTE: Kerosene (1-K Diesel) should only be stored in a blue container that is clearly marked “Kerosene (1-K Diesel))”. Never store Kerosene (1-K Diesel) in a red container. Red is associated with gasoline. -NEVER store Kerosene (1-K Diesel) in the living space. Kerosene (1-K Diesel) should be stored in a well ventilated area outside the living area. -
Page 13: Electrical System Protection
If this device activates and turns your heater off, it may require service. You can start your heater once the temperature falls below the reset temperature. Internal Shut-Off Temp. Reset Temperature MODELS Plus/Minus 10 Degrees Plus/Minus 10 Degrees ZB-K70 176˚F/80˚C 176˚F/80˚C ZB-K175 176˚F/80˚C 176˚F/80˚C ZB-K215 176˚F/80˚C 176˚F/80˚C Figure 8. -
Page 14: To Start The Heater
-101 to 200 feet (30.8 to 61 meters ), use 14 AWG wire. 4.Turn the thermostat control knob to the desired temperature setting (ZB-K70/ZB-K175/ZB-K215 only). The setting range is from 40°F to 110 °F. Push the power switch to the “ON” position(Figure 9). The power indicator lamp and room temperature display ( ZB-K175/ZB-K215 only ) will light, and the heater will start. -
Page 15: Electrical Outlet
-Always keep the outlet covered when not in use. LONG TERM STORAGE Drain Fuel Tank 1.For models ZB-K70, drain fuel through the fuel cap opening using an approved siphon. For models ZB-K175/ZB-K215, drain fuel through the Drain Plug at the bottom of the fuel tank. -
Page 16: Maintenance
3.Using a small amount of Kerosene (1-K Diesel). Rinse and swirl the Kerosene (1-K Diesel) inside of the fuel tank. Empty the tank fully. 4.To replace, push the drain head fully into the drain hole and secure by pushing the seal cap fully into the head hole (see Figure 10). -
Page 17: Fan Blades
The air intake Filter should be replaced or washed with soap and water and dried thoroughly every 500 hours of operation, or less, depending on conditions. The output and lint Filter should be replaced every 500 hours of operation, or less, depending on conditions. NOTE: Use of Kerosene (1-K Diesel) may require additional maintenance. - Page 18 Figure 14. Nozzle Replacement NOTE: The use of Kerosene (1-K Diesel) may require additional maintenance. Using this heater without proper maintenance or with contaminated or old fuel may lead to improper combustion and possible soot production. BE SURE FUEL USED IS APPROVED (see OPERATION on Page 10).
- Page 19 Figure 16. Photocell Positioning Figure 17. Photocell position for ZB-K70 FUEL FILTER: The fuel filter should be cleaned at least twice per heating season by rinsing it in clean Kerosene (1-K Diesel). Contaminated fuel could make this necessary immediately (See Figure 18)
-
Page 20: Wiring Diagrams
Optimum pressure occurs when the nose cone is cherry red and there are no extending flames from the heater. Figure 19. Pump pressure adjustment Figure 19. Pump pressure adjustment Wiring Diagrams Figure 20. Model ZB-K70 - 19 -... -
Page 21: Troubleshooting Guide
Figure 21. Models ZB-K175/ZB-K215 Troubleshooting Guide: Problem Possible Cause Solution Heater fires, but main 1.Incorrect pump pressure. 1.Adjust pump Pressure (page 20) PCB shuts heater off 2.2.Dirty input output or lint filter 2.Clean/replace air filter (page 15-16) after a short period of 3.Dirty fuel filter. - Page 22 Fan does not opera Thermostat is set too low (Does Rotate thermostat to a higher setting when heater is not apply to ZB-K45) Inspect all electrical connection (see plugged in and power Broken electrical connection wiring diagrams page19-20) switch is in the “ON” between main PCB and motor position.
- Page 24 Technical Support and E-Warranty Certificate www.vevor.com/support...
