Page 1 Flow rate characteristics Flow rate ∗ Valve [mm] Series Width Height C [dm /(s·bar)] L/min (ANR) SJ1000 0.32 0.33 SJ2000 0.36 0.13 SJ3000 0.56 0.11 SJ3000A 0.76 0.19 SJ4000 2.61 0.20 ∗1 Inlet pressure: 0.6 MPa, Outlet pressure: 0.5 MPa (at 20°C) SJ1000/2000/3000/4000 Series CAT.ES11-87E...
Page 2 Series SJ1000/2000/3000/4000 SJ4000 SJ3000 comparison 2.61 Flow rate times Flow rate Q (Reference value) 128 a 625 L/min (ANR) SJ3000A SJ3000 comparison Flow rate 0.76 (− times SJ3000 comparison Flow rate Q (Reference value) 128 a 181 L/min (ANR) 0.56...
Page 3 SJ1000/2000/3000/4000 4-Port Solenoid Valve Cassette Type Manifold Series With switch Piping variations (Connector type) • It is possible to shut off the signal of each valve individually. With One-touch fittings Threaded type • Manual operation is possible by switching the valve OFF, even if it is The threaded type is in an energized state.
Page 4 SJ1000/2000/3000/4000 4-Port Solenoid Valve Cassette Type Manifold Series Connector Type Manifold D-sub connector Flat ribbon cable EX180 Integrated type (for output) serial EX510 Gateway type serial transmission transmission system system * Connector type only * Connector type only * Excludes the SJ4000 ®...
Page 5 SJ1000/2000/3000/4000 4-Port Solenoid Valve Cassette Type Manifold Series Regulator block p. 109 Regulator block Details This is a regulator block with the same width (10 mm) as the SJ3000. Pressure supplied from the D side is used to reduce pressure in the manifold. The U side valves are all depressurized by the regulator block.
Page 6 SJ1000/2000/3000/4000 4-Port Solenoid Valve Cassette Type Manifold Series Intermediate connector block p. 115 Details Intermediate connector block This connector block can be used by inserting it into the middle of the manifold. It can be used, for example, when you wish to separate electrical control of valves in the same manifold or when the number of control points is insufficient.
Page 7 SJ1000/2000/3000/4000 4-Port Solenoid Valve Cassette Type Manifold Series SUP/EXH block with regulator and pressure switch p. 111 Details This pressure regulator is intended to adjust the SUP pressure of the manifold. Additionally, a pressure switch and pressure gauge can be mounted on it. * Excludes the SJ4000 SUP/EXH block with regulator and pressure switch Lateral knob...
Page 8 0.51 0.40 0.45 ∗ The values are for an individually operated 2-position type manifold base with 5 stations. ∗ Excludes the SJ3000A (Large flow type) and SJ4000 Tube Releasing Tool Details Web Catalog Use this to remove tubing from the A, B and P, E ports.
Page 9 SJ1000/2000/3000/4000 4-Port Solenoid Valve Cassette Type Manifold Series Vacuum Release Valve with Restrictor SJ3A6 Series Slotted Manual locking type Restrictor With 2 built-in spool valves • Flow rate adjustment Vacuum suction and release can be of release air controlled with a single valve. •...
Page 10 Manifold Variations 4-Port Solenoid Valve Connection SJ1000/2000/3000/4000 Parallel wiring Serial transmission Series Vacuum Release Valve with Restrictor SJ3A6 Series Manifold type Connector type ∗1 ∗7 SJ1000/2000/ ∗8 ∗8 3000/4000 SS5J1/2/3/4-60 p. 29 p. 29 p. 61 p. 77 p. 30 p.
Page 11 SJ1000/2000/3000/4000 Series SJ3A6 Series Manifold options Solenoid valve specifications Voltage suppressor ∗2 ∗5 ∗8 ∗8 ∗5 ∗8 ∗8 ∗7 ∗7 ∗7 p. 29 p. 103 p. 105 p. 108 p. 109 p. 111 p. 111 p. 115 p. 90 p. 117 p.
Page 12 C O N T E N T S Manifold Variations p. 9 �� SJ1000/2000/3000/4000 4-Port Solenoid Valve Series Common Specifications p. 13 �� Construction p. 18 �� Plug-in Connector Type Manifold/Cable Type Manifold p. 28 D-sub Connector/Flat Ribbon Cable How to Order: Connector Type p.
Page 13 1000 2000 3000 4000 SJ3A6 Vacuum Release Valve with Restrictor Series p. 124 Common Specifications p. 125 �� Construction/Circuit Example p. 126 �� Plug-in Connector Type Manifold/Cable Type Manifold D-sub Connector/Flat Ribbon Cable/Serial Wiring (EX180/EX510) How to Order: Connector Type p.
Page 14 C2, C4 size SJ2000 C2, C4, N1, N3, M3 4(A), SJ3000 C2, C4, C6, N1, N3, N7, M5 2(B) port SJ3000A C4, C6 SJ4000 C6, C8 SJ1000/ Weight W [g] ∗ Standard: W = 51n + m + 133 2000/ Low-profile SUP/EXH block specification: W = 32n + m + 133 ∗...
Page 15 0.55 0.10 0.12 0.56 0.11 0.12 0.40 0.28 0.11 0.45 0.15 0.11 SJ3000A Series Port size Flow rate characteristics 1 R 4/2 (P R A/B) 4/2 R 3/5 (A/B R E) 1(P) 4, 2 3/5(E) (A, B) C [dm /(s·bar)] C [dm /(s·bar)]...
Page 16 SJ1000/2000/3000/4000 Series Solenoid Valve Specifications Fluid 2-position single 0.15 to 0.7 Internal pilot 4-position dual 3-port valve operating pressure 2-position double 0.1 to 0.7 range [MPa] 3-position 0.2 to 0.7 Operating pressure range –100 kPa to 0.7 D-sub connector External pilot 2-position single Pilot operating pressure...
Page 17 SJ1000/2000/3000/4000 Series Common Specifications 1000 2000 3000 Weight 4000 Model: SJ1000/2000 Series Model: SJ3000 Series Port size Weight Port size Weight Valve model Type of actuation Valve model Type of actuation 4(A), 2(B) 4(A), 2(B) Single Single 2-position 2-position Double Double Closed center Closed center...
Page 18 SJ1000/2000/3000/4000 Series Connector Wiring Diagram For both serial and parallel wiring, additional valves are sequentially assigned pins on the connector. This makes it completely unnecessary to disassemble the connector unit. L Single solenoid and double solenoid Solenoid Connector side (D-sub connector, etc.) Common (+, –) SOL.a Station 1...
Page 19 SJ1000/2000/3000/4000 Series Construction 1000 2000 3000 SJ1000/2000: Connector Type 4000 Symbol 2-position single 2-position single 2-position single with back pressure check valve (A)4 2(B) (A)4 2(B) 4(A) (EA)5 1 3(EB) (EA)5 1 3(EB) 2(B) 5(EA)/3(EB) 1(P) 2-position double 2-position double 2-position double with back pressure check valve (A)4...
Page 20 SJ1000/2000/3000/4000 Series SJ1000/2000 : Connector Type SJ1A60T/SJ2A60 Symbol [N.C. valve x 2] 4-position dual 3-port valve SJ1A60T/SJ2A60 SJ1A60KT/SJ2A60K with back pressure check valve [N.C. valve x 2] 4(A) 2(B) 4(A) 2(B) 4(A) 2(B) 5(EA) 1(P) 3(EB) 5(EA) 1(P) 3(EB) 5(EA)/3(EB) 1(P) SJ1B60T/SJ2B60 [N.O.
Page 21 Port block Resin White Bottom cover Resin White Light cover Resin Light blue ∗1 Aluminum die-cast is used for the SJ3000A. 5(EA)/3(EB) 1(P) Replacement Parts Description Part no. Refer to the One-touch fitting part no. One-touch fitting on page 142.
Page 22 SJ1000/2000/3000/4000 Series SJ3000: Connector Type Symbol SJ3A60 [N.C. valve x 2] 4-position dual 3-port valve SJ3A60K with back pressure SJ3A60 [N.C. valve x 2] check valve 4(A) 2(B) 4(A) 2(B) 4(A) 5(EA) 1(P) 3(EB) 5(EA) 1(P) 3(EB) 2(B) 5(EA)/3(EB) 1(P) SJ3B60 [N.O.
Page 23 SJ1000/2000/3000/4000 Series Construction 1000 2000 3000 SJ4000: Connector Type 4000 Symbol 2-position single 2-position single u !1 (A)4 2(B) (A)4 2(B) (EA)5 1 3(EB) (EA)5 1 3(EB) 5(EA)/3(EB) 1(P) 2-position double 2-position double (A)4 2(B) (A)4 2(B) u !1 (EA)5 1 3(EB) (EA)5 1 3(EB)
Page 24 SJ1000/2000/3000/4000 Series SJ4000: Connector Type Symbol SJ4A60 [N.C. valve x 2] 4-position dual 3-port valve i !2 SJ4A60 [N.C. valve x 2] 4(A) 2(B) 4(A) 2(B) 5(EA) 1(P) 3(EB) 5(EA) 1(P) 3(EB) 5(EA)/3(EB) 1(P) SJ4B60 [N.O. valve x 2] SJ4B60 [N.O. valve x 2] i !2 4(A) 2(B)
Page 25 SJ2000/3000 Series Construction 1000 2000 3000 SJ2000: Cable Type 4000 Symbol 2-position single 2-position single 2-position single with back !1 u pressure check valve (A)4 2(B) (A)4 2(B) 4(A) (EA)5 1 3(EB) (EA)5 1 3(EB) 2(B) 5(EA)/3(EB) 1(P) 2-position double 2-position double 2-position double with back pressure check valve...
Page 26 SJ2000/3000 Series SJ2000: Cable Type SJ2A60 [N.C. valve x 2] Symbol 4-position dual 3-port valve SJ2A60K with back pressure !0 y t !2 i SJ2A60 [N.C. valve x 2] check valve 4(A) 2(B) 4(A) 2(B) 4(A) 5(EA) 1(P) 3(EB) 5(EA) 1(P) 3(EB) 2(B)
Page 27 Port block Resin White Bottom cover assembly Resin White Light cover Resin Light blue ∗1 Aluminum die-cast is used for the SJ3000A. 5(EA)/3(EB) 1(P) Replacement Parts Description Part no. Refer to the One-touch fitting part no. One-touch fitting on page 142.
Page 28 SJ2000/3000 Series SJ3000: Cable Type Symbol SJ3A60 [N.C. valve x 2] 4-position dual 3-port valve SJ3A60K with back pressure !0 y q e u SJ3A60 [N.C. valve x 2] check valve 4(A) 2(B) 4(A) 2(B) 4(A) 5(EA) 1(P) 3(EB) 5(EA) 1(P) 3(EB) 2(B)
Page 29 Plug-in Connector Type Manifold 1000 2000 3000 Cable Type Manifold 4000 SJ1000/2000/3000/4000 Series Connector Type Manifold p. 29 D-sub Connector/Flat Ribbon Cable Cable Type Manifold p. 33 D-sub Connector/Flat Ribbon Cable SJ3A6 Connector Type Manifold Connector Type Manifold EX180 Integrated Type (For EX510 Gateway Type p.
Page 30 ∗ ® Plug-in Connector Type ∗1 SJ2000/3000 only D-sub Connector/Flat Ribbon Cable RoHS SJ1000/2000/3000 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. V Connector type manifold SS5J 3 e r t...
Page 31 ∗ When ordering a connector separately, refer to pages 144 and 145. SJ3A6 Manual override A, B port size Metric/One-touch fitting Inch/One-touch fitting Symbol/Specification SJ1000 SJ2000 SJ3000(A) Symbol A, B port SJ1000 SJ2000 SJ3000 SJ3000A Symbol A, B port SJ1000 SJ2000 SJ3000 SJ3000A Non-locking ø2 — ø1/8"...
Page 32 Plug-in Connector Type D-sub Connector/Flat Ribbon Cable RoHS SJ4000 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. V Connector type manifold SS5J 4 e r t...
Page 33 Plug-in Connector Type SJ4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 3000 How to Order Solenoid Valves 4000 Rated voltage Type of actuation Pilot type Coil type 2-position single solenoid Internal pilot Standard 24 VDC 2-position double solenoid External pilot ∗...
Page 34 ® Plug-in Cable Type D-sub Connector/Flat Ribbon Cable RoHS SJ2000/3000 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. V Cable type manifold SS5J 3 e r t...
Page 35 Common specification Positive common Negative common Light/surge voltage suppressor With light/surge voltage suppressor A, B port size Metric/One-touch fitting Inch/One-touch fitting Symbol A, B port SJ2000 SJ3000 SJ3000A Symbol A, B port SJ2000 SJ3000 SJ3000A SJ3A6 ø2 — ø1/8" — ø4 ø5/32"...
Page 36 SJ1000/2000/3000/4000 Series Manifold Electrical Wiring: Connector Type (Non-polar Type) Type 60F: D-sub connector (25 pins) Type 60P: Flat ribbon cable (26 pins) Type 60PG: Flat ribbon cable (20 pins) Common Common Common SOL.b SOL.b SOL.b Station 12 Station 12 Station 9 SOL.a SOL.a SOL.a...
Page 37 Plug-in Connector Type/Cable Type SJ2000/3000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 3000 Manifold Electrical Wiring: Cable Type 4000 Type 60LF: D-sub connector (25 pins) Type 60LP: Flat ribbon cable (26 pins) Type 60LPG: Flat ribbon cable (20 pins) Common Common Common SOL.b...
Page 38 SJ1000/2000/3000/4000 Series SJ1000 Dimensions: for D-sub Connector SS5J1-60FD - U(S, R, RS) Stations Light/surge voltage suppressor (5.9) SOL.a: Red SOL.b: Green (Station 1) (Station n) D side U side DIN rail holding screw (DIN rail mounting hole pitch: 12.5) Manual override switch Manual override Locking type: Press, 2 x M2.6...
Page 39 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ1000 3000 Dimensions: for D-sub Connector 4000 SS5J1-60FD - B(S, R, RS) Stations (Station 1) (Station n) (5.9) Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side Silencer (Air discharge port) DIN rail holding screw (Built-in silencer specification)
Page 40 SJ1000/2000/3000/4000 Series SJ2000 Dimensions: for D-sub Connector SS5J2-60FD - U(S, R, RS) Stations (Station 1) (Station n) Switch (When equipped with switch) ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (5.9) Light/surge voltage suppressor SOL.a: Red SOL.b: Green 2 x M2.6...
Page 41 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ2000 3000 Dimensions: for D-sub Connector 4000 SS5J2-60FD - B(S, R, RS) Stations (Station 1) (Station n) Switch (When equipped with switch) ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (5.9) Light/surge voltage suppressor...
Page 42 SJ1000/2000/3000/4000 Series SJ3000 Dimensions: for D-sub Connector SS5J3-60FD - U(S, R, RS) Stations (Station 1) (Station n) Switch (When equipped with switch) Light/surge voltage suppressor (5.9) SOL.a: Red (Connector entry direction: Upward) SOL.b: Green D side U side Manual override DIN rail holding screw 30.6 Locking type: Press,...
Page 43 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ3000 3000 Dimensions: for D-sub Connector 4000 SS5J3-60FD - B(S, R, RS) Stations (Station 1) (Station n) Switch (When equipped with switch) Light/surge voltage suppressor (5.9) SOL.a: Red (Connector entry direction: Upward) SOL.b: Green Valve lock switch...
Page 44 SJ1000/2000/3000/4000 Series SJ4000 Dimensions: for D-sub Connector SS5J4-60FD - D(S, R) Stations DIN rail holding screw (4 locations) Manual override (M3) Push-turn locking slotted type: Press, then rotate it. Switch for locking a connector 4(A) port side: Blue 2(B) port side: Yellow Applicable connector: D-sub JIS-X-5101 equivalent...
Page 45 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ4000 3000 Dimensions: for D-sub Connector 4000 SS5J4-60FD - (S, R) Stations DIN rail holding screw (4 locations) Manual override (M3) Push-turn locking slotted type: Press, then rotate it. Switch for locking a connector 4(A) port side: Blue 2(B) port side: Yellow...
Page 46 SJ1000/2000/3000/4000 Series SJ1000/2000/3000 Dimensions: Mixed Manifold SS5J3-M60FD - U(S, R, RS) D side U side Stations Manual override switch (Connector entry direction: Upward) (DIN rail mounting hole pitch: 12.5) 2 x M2.6 Manual override 2 x No.4-40UNC Locking type: Press, DIN rail holding screw [4(A) and 2(B) ports are in inches.] then rotate it.
Page 47 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ1000/2000/3000/4000 3000 Dimensions: Mixed Manifold 4000 SS5J4-M60FD - D(S, R) Stations D side U side Manual override Applicable connector: D-sub DIN rail holding screw (4 locations) Push-turn locking slotted type: JIS-X-5101 equivalent (M3)
Page 48 SJ1000/2000/3000/4000 Series SJ1000/2000/3000/4000 Dimensions: Mixed Manifold SS5J4-M60FD - B(S, R) Stations D side U side Applicable connector: D-sub Manual override DIN rail holding screw JIS-X-5101 equivalent (4 locations) MIL-C-24308 Push-turn locking slotted type: (M3) Press, then rotate it. (Light/surge 4(A) port side: Blue Switch for locking a connector voltage suppressor) 2 x M2.6...
Page 49 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ1000 3000 Dimensions: for Flat Ribbon Cable 4000 SS5J1-60PD U(S, R, RS) Stations ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (18) Light/surge voltage suppressor SOL.a: Red...
Page 50 SJ1000/2000/3000/4000 Series SJ1000 Dimensions: for Flat Ribbon Cable SS5J1-60PD B(S, R, RS) Stations ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (18) Light/surge voltage suppressor SOL.a: Red SOL.b: Green (Station 1) (Station n) Manual override switch D side U side...
Page 51 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ2000 3000 Dimensions: for Flat Ribbon Cable 4000 SS5J2-60PD - U(S, R, RS) Stations Switch (When equipped with switch) ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (18) Light/surge voltage suppressor...
Page 52 SJ1000/2000/3000/4000 Series SJ2000 Dimensions: for Flat Ribbon Cable SS5J2-60PD - B(S, R, RS) Stations Switch (When equipped with switch) ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (18) Light/surge voltage suppressor SOL.a: Red SOL.b: Green (Station 1) (Station n)
Page 53 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ3000 3000 Dimensions: for Flat Ribbon Cable 4000 SS5J3-60PD U(S, R, RS) Stations Triangle mark location (Station 1) (Station n) Switch (When equipped with switch) 18.8 Light/surge voltage suppressor SOL.a: Red SOL.b: Green Applicable connector: 10-pin MIL type...
Page 54 SJ1000/2000/3000/4000 Series SJ3000 Dimensions: for Flat Ribbon Cable SS5J3-60PD B(S, R, RS) Stations Triangle mark location (Station 1) (Station n) Switch (When equipped with switch) 18.8 Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side Applicable connector: 10-pin MIL type with strain relief Valve lock switch (MIL-C-83503 compliant)
Page 55 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ4000 3000 Dimensions: for Flat Ribbon Cable 4000 SS5J4-60PD - D(S, R) Stations Manual override Push-turn locking slotted type: Press, then rotate it. 4(A) port side: Blue D side U side Applicable connector: 26-pin MIL type 2(B) port side: Yellow...
Page 56 SJ1000/2000/3000/4000 Series SJ4000 Dimensions: for Flat Ribbon Cable SS5J4-60PD - (S, R) Stations Manual override Push-turn locking slotted type: Press, then rotate it. 4(A) port side: Blue Applicable connector: 26-pin MIL type 2(B) port side: Yellow D side U side with strain relief DIN rail holding screw (4 locations) [External pilot specification]...
Page 57 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ1000/2000/3000 3000 Dimensions: Mixed Manifold 4000 SS5J3-M60PD - U(S, R, RS) D side U side Stations (DIN rail mounting hole pitch: 12.5) Manual override DIN rail holding screw Locking type: Press, then rotate it.
Page 58 SJ1000/2000/3000/4000 Series SJ1000/2000/3000/4000 Dimensions: Mixed Manifold SS5J4-M60PD - D(S, R) Stations D side U side Applicable connector: 26-pin MIL type Manual override with strain relief DIN rail holding screw (4 locations) (MIL-C-83503 compliant) Push-turn locking slotted type: (M3) (Light/surge Press, then rotate it. 4(A) port side: Blue Switch for locking a connector voltage suppressor)
Page 59 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ1000/2000/3000/4000 3000 Dimensions: Mixed Manifold 4000 SS5J4-M60PD - B(S, R) Stations D side U side Applicable connector: 26-pin MIL type DIN rail holding screw with strain relief Manual override (4 locations) (MIL-C-83503 compliant) Push-turn locking slotted type:...
Page 60 SJ1000/2000/3000/4000 Series SJ2000 Dimensions: with Elbow Fittings SS5J2-60FD - Stations Downward (B type) [SUP/EXH block (External pilot specification)] [Valve] (7.7) 2(B) 3/5(E) port 4(A) 4(A) port (Station 1) (Station n) port port (11.5) 1(P) 1(P) port port 14.5 (7.3) 10.3 46.2 54.5 [SUP/EXH block...
Page 61 Plug-in Connector Type/Cable Type SJ1000/2000/3000/4000 Series D-sub Connector/Flat Ribbon Cable 1000 2000 SJ3000 3000 Dimensions: with Elbow Fittings 4000 SS5J3-60FD - Stations Downward (B type) [SUP/EXH block (External pilot specification)] [Valve] BN7: 9 B6: 6.5 BN7: 6.1 (7.7) B6: 3.6 2(B) 3/5(E) port...
Page 62 Plug-in Connector Type ∗ ® EX180 Integrated Type ∗1 SJ2000/3000 only (For Output) Serial Transmission System RoHS SJ1000/2000/3000 Series Type An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example.
Page 63 ∗ When ordering a connector separately, refer to pages 144 and 145. SJ3A6 Manual override A, B port size Symbol/Specification SJ1000 SJ2000 SJ3000(A) Metric/One-touch fitting Inch/One-touch fitting Symbol A, B port SJ1000 SJ2000 SJ3000 SJ3000A Symbol A, B port SJ1000 SJ2000 SJ3000 SJ3000A Non-locking ø2 — ø1/8"...
Page 64 Plug-in Connector Type EX180 Integrated Type (For Output) Serial Transmission System SJ4000 Series Type An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. SS5J 4 e r t o !0...
Page 65 Plug-in Connector Type SJ4000 Series EX180 Integrated Type (For Output) Serial Transmission System 1000 2000 3000 How to Order Solenoid Valves 4000 Rated voltage Type of actuation Pilot type Coil type 2-position single solenoid Internal pilot Standard 24 VDC 2-position double solenoid External pilot ∗...
Page 66 SJ1000/2000/3000 Series SJ1000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System SS5J1-60SmmmD- U(S, R, RS) Stations (Station 1) (Station n) ∗1 Height to manual override Push type manual override: 40.3 Light/surge voltage suppressor Locking type manual override: 40.5 SOL.a: Red SOL.b: Green D side...
Page 67 Plug-in Connector Type SJ1000/2000/3000 Series EX180 Integrated Type (For Output) Serial Transmission System 1000 2000 SJ1000 3000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System 4000 SS5J1-60SmmmD- B(S, R, RS) Stations (Station 1) (Station n) ∗1 Height to manual override Push type manual override: 40.3 Light/surge voltage suppressor Locking type manual override: 40.5...
Page 68 SJ1000/2000/3000 Series SJ2000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System SS5J2-60SmmmD- U(S, R, RS) Stations Switch (Station 1) (Station n) (When equipped with switch) Light/surge voltage suppressor ∗1 Height to manual override SOL.a: Red Push type manual override: 40.3 SOL.b: Green Locking type manual override: 40.5 DIN rail holding screw (2 locations)
Page 69 Plug-in Connector Type SJ1000/2000/3000 Series EX180 Integrated Type (For Output) Serial Transmission System 1000 2000 SJ2000 3000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System 4000 SS5J2-60SmmmD- B(S, R, RS) Stations Switch (Station 1) (Station n) (When equipped with switch) Light/surge voltage suppressor ∗1 Height to manual override SOL.a: Red...
Page 70 SJ1000/2000/3000 Series SJ3000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System SS5J3-60SmmmD- U(S, R, RS) Stations Switch (When equipped with switch) (Station 1) (Station n) Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side 30.6 DIN rail holding screw Valve lock switch Manual override Silencer (Air discharge port)
Page 71 Plug-in Connector Type SJ1000/2000/3000 Series EX180 Integrated Type (For Output) Serial Transmission System 1000 2000 SJ3000 3000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System 4000 SS5J3-60SmmmD- B(S, R, RS) Stations Switch (Station 1) (Station n) (When equipped with switch) Light/surge voltage suppressor SOL.a: Red SOL.b: Green...
Page 72 SJ4000 Series SJ4000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System SS5J4-60Smm- D(S, R) Stations D side U side Manual override Push-turn locking slotted type: Press, then rotate it. Silencer (Air discharge port) 4(A) port side: Blue DIN rail holding screw (2 locations) (Built-in silencer specification) 2(B) port side: Yellow (M4)
Page 73 Plug-in Connector Type SJ4000 Series EX180 Integrated Type (For Output) Serial Transmission System 1000 2000 SJ4000 3000 Dimensions: for EX180 Integrated Type (For Output) Serial Transmission System 4000 SS5J4-60Smm- B(S, R) Stations D side U side Manual override Push-turn locking slotted type: Press, then rotate it.
Page 74 SJ1000/2000/3000 Series SJ1000/2000/3000 Dimensions: Mixed Manifold SS5J3-M60SmmmD- U(S, R, RS) Stations D side U side SI unit (DIN rail mounting hole pitch: 12.5) Manual override DIN rail holding screw (2 locations) Locking type: Press, (M3) then rotate it. Manual override switch 4(A) port side: Blue 2(B) port side: Yellow DIN rail...
Page 75 Plug-in Connector Type SJ4000 Series EX180 Integrated Type (For Output) Serial Transmission System 1000 2000 SJ4000 3000 Dimensions: Mixed Manifold 4000 SS5J4-M60Smm- D(S, R) Stations D side U side Manual override SI unit Push-turn locking slotted type: DIN rail holding screw (2 locations) DIN rail holding screw (2 locations) DIN rail Press, then rotate it.
Page 76 SJ4000 Series SJ4000 Dimensions: Mixed Manifold SS5J4-M60Smm- B(S, R) Stations D side U side Manual override SI unit Push-turn locking slotted type: DIN rail holding screw (2 locations) DIN rail Press, then rotate it. (M4) (Light/surge voltage suppressor) 4(A) port side: Blue 2(B) port side: Yellow L dimension: Formula, L1 to L4 L3 = 6.5 x n1 + 7.5 x n2 + 10 x n3 + 15 x n4 x 138.7...
Page 77 1000 2000 3000 4000 SJ3A6...
Page 78 Plug-in Connector Type ∗ ® EX510 Gateway Type ∗1 SJ2000/3000 only Serial Transmission System RoHS SJ1000/2000/3000 60S6B Series Type An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order Manifolds the same time while referring to the ordering example.
Page 79 ∗ When ordering a connector separately, refer to pages 144 and 145. SJ3A6 Manual override A, B port size Symbol/Specification SJ1000 SJ2000 SJ3000(A) Metric/One-touch fitting Inch/One-touch fitting Symbol A, B port SJ1000 SJ2000 SJ3000 SJ3000A Symbol A, B port SJ1000 SJ2000 SJ3000 SJ3000A Non-locking ø2 — ø1/8"...
Page 80 SJ1000/2000/3000 Series SJ1000 Dimensions: for EX510 Gateway Type Serial Transmission System SS5J1-60S6BmD- U(S, R, RS) Stations (Station 1) (Station n) ∗1 Height to manual override Push type manual override: 40.3 Light/surge voltage suppressor Locking type manual override: 40.5 SOL.a: Red SOL.b: Green D side U side...
Page 81 Plug-in Connector Type SJ1000/2000/3000 Series EX510 Gateway Type Serial Transmission System 1000 2000 SJ1000 3000 Dimensions: for EX510 Gateway Type Serial Transmission System 4000 SS5J1-60S6BmD- B(S, R, RS) Stations (Station 1) (Station n) ∗1 Height to manual override Push type manual override: 40.3 Light/surge voltage suppressor Locking type manual override: 40.5 SOL.a: Red...
Page 82 SJ1000/2000/3000 Series SJ2000 Dimensions: for EX510 Gateway Type Serial Transmission System SS5J2 - 60S6BmD- U(S, R, RS) Stations ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (Station 1) (Station n) Switch (Light/surge voltage suppressor) (When equipped with switch) SOL.a: Red SOL.b: Green...
Page 83 Plug-in Connector Type SJ1000/2000/3000 Series EX510 Gateway Type Serial Transmission System 1000 2000 SJ2000 3000 Dimensions: for EX510 Gateway Type Serial Transmission System 4000 SS5J2-60S6BmD- Stations ∗1 Height to manual override (Station 1) (Station n) Switch Push type manual override: 40.3 (When equipped with switch) Locking type manual override: 40.5 (Light/surge voltage suppressor)
Page 84 SJ1000/2000/3000 Series SJ3000 Dimensions: for EX510 Gateway Type Serial Transmission System SS5J3-60S6BmD- U(S, R, RS) Switch Stations (When equipped with switch) Light/surge voltage suppressor SOL.a: Red SOL.b: Green (Station 1) (Station n) D side U side 30.6 Valve lock switch Manual override DIN rail holding screw Locking type: Press,...
Page 85 Plug-in Connector Type SJ1000/2000/3000 Series EX510 Gateway Type Serial Transmission System 1000 2000 SJ3000 3000 Dimensions: for EX510 Gateway Type Serial Transmission System 4000 SS5J3-60S6BmD- B(S, R, RS) Switch Stations (When equipped with switch) Light/surge voltage suppressor SOL.a: Red SOL.b: Green (Station 1) (Station n) D side...
Page 86 SJ1000/2000/3000 Series SJ1000/2000/3000 Dimensions: Mixed Manifold for EX510 Gateway Type Serial Transmission System SS5J3-M60S6BmD- U(S, R, RS) Stations D side U side DIN rail holding screw (2 locations) (M3) (DIN rail mounting hole pitch: 12.5) Manual override switch Manual override Locking type: Press, then rotate it.
Page 87 SJ1000/2000/3000/4000 Series Manifold Exploded View 1000 2000 SJ1000/2000/3000 3000 Connector Type 4000 Type 60S [Plug-in, EX180 integrated Type 60F, 60P, and 60S manifolds type (for output) serial transmission system] manifold U side EXH block disk SUP block disk D side Component Parts: Plug-in (Connector Type) Description Part no.
Page 88 SJ1000/2000/3000/4000 Series SJ1000/2000/3000 Cable Type Type 60LF and 60LP manifolds U side Cable Valve lock switch Valve lock switch Manual override switch Blanking block D side Component Parts: Plug-in (Cable Type) Description Part no. Note SJ3000-50-5A-ll Internal pilot (Metric size) SJ3000-50-5AS-ll Internal pilot, Built-in silencer C6: With ø6 One-touch fitting (straight)
Page 89 SJ1000/2000/3000/4000 Series Manifold Exploded View 1000 2000 SJ4000 3000 Connector Type 4000 Type 60S (Plug-in, EX180 Type 60F, 60P, and 60S manifolds integrated type (for output) serial transmission system) manifold U side SI unit Fixed switch (2 locations) Block plug for the X port EXH block disk SUP block disk U side and intermediate SUP/EXH block...
Page 90 SJ1000/2000/3000/4000 Series Manifold Exploded View (Mixed Specification) Connector Type Type M60F, M60P, and M60S mixed manifolds U side U side and intermediate SUP/EXH block For the SJ1000/2000/3000 ∗ Refer to page 86. SUP/EXH block for the D side D side Component Parts: Plug-in (Connector Type) Description Part no.
Page 91 SJ1000/2000/3000 Series How to Increase Manifold Stations 1000 2000 3000 Connector Type 4000 Loosen threads a, which are fixed onto the DIN rail (two locations on one side). Fig 1 [∗ To replace the DIN rail, also loosen the screws (2 loca- tions) on the connector block.] U side Refer to...
Page 92 SJ1000/2000/3000 Series Cable Type Fig. 1 Caution To increase a manifold station, a housing holder (refer to the table below) is required in addition to the solenoid valve. For the manifold with less than the max. number of stations, spare housing (for one station) for adding the manifold station is stored in the housing holder U side SUP/EXH block...
Page 93 SJ4000 Series How to Increase Manifold Stations 1000 2000 3000 Connector Type 4000 Loosen threads a, which are fixed onto the DIN rail (two locations on one side). Fig. 1 [∗ To replace the DIN rail, also loosen the screws (2 loca- tions) on the connector block.] End block U side...
Page 95 Non Plug-in 1000 Individual Wiring Manifold 2000 3000 4000 SJ2000/3000 Series p. 95 Individual Wiring SJ3A6...
Page 96 ® Non Plug-in Individual Wiring RoHS SJ2000/3000 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. VIndividual wiring manifold SS5J 3 e r t...
Page 97 Non-locking Push-turn locking Slide locking type push type slotted type SJ3A6 A, B port size Metric/One-touch fitting Inch/One-touch fitting Symbol A, B port SJ2000 SJ3000 SJ3000A Symbol A, B port SJ2000 SJ3000 SJ3000A ø2 — ø1/8" — ø4 ø5/32" ø6 —...
Page 98 SJ2000/3000 Series Dimensions SS5J2-60- U(S, R, RS) Stations ∗1 Height to manual override Push type manual override: 40.3 (Station 1) (Station n) Locking type manual override: 40.5 Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side (DIN rail mounting hole pitch: 12.5) DIN rail holding screw Manual override 30.6...
Page 99 SJ2000/3000 Series Non Plug-in Individual Wiring 1000 2000 3000 Dimensions 4000 SS5J2-60- B(S, R, RS) Stations ∗1 Height to manual override Push type manual override: 40.3 (Station 1) (Station n) Locking type manual override: 40.5 Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side...
Page 100 SJ2000/3000 Series Dimensions SS5J3-60- U(S, R, RS) Stations (Station 1) (Station n) Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side Manual override 30.6 Locking type: Press, then rotate it. 4(A) port side: Blue [External pilot specification] 2(B) port side: Yellow DIN rail holding screw Silencer (Air discharge port) (Built-in silencer specification)
Page 101 SJ2000/3000 Series Non Plug-in Individual Wiring 1000 2000 3000 Dimensions 4000 SS5J3-60- B(S, R, RS) Stations (Station 1) (Station n) Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side Valve lock switch Manual override switch Manual override 30.6 Locking type: Press, then rotate it.
Page 102 SJ2000/3000 Series SJ2000/3000 Dimensions: Mixed Manifold SS5J3-M60- U(S, R, RS) Stations D side U side (DIN rail mounting hole pitch: 12.5) Manual override 30.6 Locking type: Press, DIN rail holding screw then rotate it. 4(A) port side: Blue 2(B) port side: Yellow Manual override switch DIN rail L dimension: Formula, L1 to L4...
Page 103 SJ2000/3000 Series Manifold Exploded View 1000 2000 3000 Individual Wiring 4000 Type 60 individual wiring (Non plug-in) ∗ Refer to page 90 for “How to Increase Manifold Stations.” manifold Valve lock switch U side Valve lock switch SUP block disk EXH block disk D side Component Parts: Individual Wiring (Non Plug-in)
Page 104 SJ1000/2000/3000/4000 Series Manifold Options SJ1000/2000/3000 Common to Connector Type/Cable Type/Individual Wiring L SUP block disk For the The part number is for 1 pc. SJ1000/2000/3000 Series Part no. By placing a SUP block disk in a manifold valve’s pressure supply passage, 2 different pressures (a SJ1000 high and a low pressure) can be supplied to 1 manifold.
Page 105 SJ1000/2000/3000/4000 Series Manifold Options 1000 2000 SJ4000 3000 Connector Type 4000 L SUP block disk (For the SJ4000) The part number is for 1 pc. By placing a SUP block disk in a manifold valve’s pressure supply passage, 2 different pressures (a Series Part no.
Page 106 SJ1000/2000/3000/4000 Series Common to Connector Type/Cable Type/Individual Wiring M Label for block disk (For the SJ1000/2000/3000) Different-pressure internal pilot specification SUP/EXH block These labels are attached to manifolds in which SUP and EXH block disks have been installed, in order to identify the installed locations. (Three sheets each included.) SJ3000-155-1A Label for Label for...
Page 107 SJ1000/2000/3000/4000 Series Manifold Options 1000 2000 3000 Common to Connector Type/Cable Type/Individual Wiring 4000 ø M Silencer with One-touch fitting This silencer can be mounted on the manifolds’ port 3/5 (E: Exhaust) with a single touch. Effective ø Series Model area SJ1000 AN15-C08...
Page 108 SJ1000/2000/3000/4000 Series Common to Connector Type/Cable Type/Individual Wiring L D-sub connector (25 pins)/Cable D-sub Connector Cable AXT100 DS25 Cable Color List of Each Terminal No. Terminal no. Lead wire color Dot marking Black None Brown None None Orange None Yellow None Pink None...
Page 109 SJ1000/2000/3000 Series Manifold Options 1000 2000 3000 Common to Connector Type/Cable Type/Individual Wiring 4000 L Dual flow fitting (Set for SJ3000 series) SJ3000 120 1A Port size C8 ø8 N9 ø5/16" This is a fitting for cylinder ports which enables simultaneous actuation and increase in flow rate of valves for 2 stations. This is a One-touch fitting with port sizes of ø8 and ø5/16".
Page 110 SJ1000/2000/3000 Series For Connector Type/Individual Wiring L Regulator block /How to Order SJ3000(N)-00-P(-H) This is used to reduce the pressure supplied from the D side inside the manifold. With manual operation of pressure adjustment screw All valves on the U side are depressurized from the regulator block. SJ3000 SJ1000/2000/3000 Valve lock switch ∗...
Page 111 SJ1000/2000/3000 Series Manifold Options 1000 2000 3000 4000 L Pneumatic circuit (Regulator block mounting example) D side U side (SJ3260) (SJ2260) (SJ3000-00-P) (SJ3260) (SJ2260) (Pilot passage) 4(A) 2(B) 4(A) 2(B) 4(A) 2(B) 4(A) 2(B) 1(P) 3/5(E) Regulator block Set to 0.2 MPa 0.2 MPa 0.5 MPa P port...
Page 112 SJ1000/2000/3000 Series For Connector Type/Individual Wiring L SUP/EXH block with regulator and pressure switch (for internal pilot manifold)/How to Order * When mounting on the manifold, specify it on the manifold specification sheet. SJ3000 Pressure switch/ Pressure gauge display orientation Knob (Regulator orientation) Without pressure display function Lateral...
Page 113 SJ1000/2000/3000 Series Manifold Options 1000 2000 3000 4000 L Flow rate characteristics Regulator unit flow rate characteristics SJ1000 passage P  A/B SJ2000 passage P  A/B Outlet flow rate [L/min (ANR)] Outlet flow rate [L/min (ANR)] SJ3000 passage P  A/B Outlet flow rate [L/min (ANR)] Valve with speed controller flow rate characteristics Meter-out control A/B ...
Page 114 SJ1000/2000/3000 Series For Connector Type/Individual Wiring L SUP/EXH block with regulator and pressure switch, valve with speed controller/Dimensions D side U side (Station 1) (Station 5) Pressure switch or SUP/EXH block with regulator Valve with pressure gauge and pressure switch speed controller Regulator knob For 4(A) side...
Page 115 SJ1000/2000/3000 Series Manifold Options 1000 2000 3000 4000 L Manifold electrical wiring when the SUP/EXH block with the regulator and pressure switch is mounted (Internal wiring and pressure switch (NPN)) D-sub connector (25 pins) Flat ribbon cable (26 pins) Common (+) Common (+) SOL.b SOL.b...
Page 116 SJ1000/2000/3000 Series For connector type L Intermediate connector block This connector block can be used by inserting it into the middle of the manifold. This can be used, for example, when you wish to separate electrical control of valves in the same manifold, or when the number of control points is insufficient. Series Part no.
Page 117 SJ1000/2000/3000 Series Made to Order 1000 2000 Please contact SMC for detailed dimensions, specifications, and lead times. 3000 4000 Symbol -X90 Main Valve Fluororubber Specification Fluororubber is used for the rubber parts of the main valve to allow for use in the following situations. 1.
Page 118 0.45 0.15 0.11 SJ3000 0.45 0.19 0.12 0.51 0.19 0.12 0.40 0.26 0.11 0.45 0.18 0.11 ∗ The values are for an individually operated 2-position type manifold base with 5 stations. ∗ Excludes the SJ3000A (large flow type) and SJ4000...
Page 119 SJ1000/2000/3000 Series Made to Order 1000 2000 3000 Symbol 4000 -X225 Low-profile SUP/EXH Block Specification Dimensions [External pilot specification] D side U side One-touch fitting [X: External pilot port] Applicable tubing O.D.: ø4 One-touch fitting [PE: Pilot EXH port] Applicable tubing O.D.: ø4 20.5 21.4 One-touch fitting...
Page 120 SJ1000/2000/3000 Series Symbol -X225 Low-profile SUP/EXH Block Specification L: Dimensions SS5J1-60PDm-mU-X225 n: Stations 110.5 110.5 123 135.5 135.5 148 160.5 160.5 173 185.5 185.5 198 210.5 210.5 223 235.5 235.5 248 87.5 87.5 100 112.5 112.5 125 137.5 137.5 150 162.5 175 187.5 187.5 200 212.5 212.5 225...
Page 121 SJ1000/2000/3000 Series Made to Order 1000 2000 3000 Symbol 4000 -X225 Low-profile SUP/EXH Block Specification L: Dimensions SS5J2-60FDm-mU-X225 n: Stations 110.5 123 135.5 135.5 148 160.5 160.5 173 185.5 198 210.5 210.5 223 235.5 235.5 248 260.5 273 87.5 87.5 100 112.5 112.5 125 137.5 150 162.5 162.5 175...
Page 122 SJ1000/2000/3000 Series Symbol -X225 Low-profile SUP/EXH Block Specification L: Dimensions SS5J2-60S6BmD-mU-X225 n: Stations 135.5 160.5 185.5 185.5 210.5 210.5 235.5 137.5 137.5 162.5 162.5 187.5 212.5 237.5 237.5 107.6 115.1 122.6 130.1 137.6 145.1 152.6 160.1 167.6 175.1 182.6 190.1 197.6 205.1 212.6...
Page 123 SJ1000/2000/3000 Series Made to Order 1000 2000 3000 Symbol 4000 -X225 Low-profile SUP/EXH Block Specification L: Dimensions SS5J3-60SV/QmD-mU-X225 n: Stations 135.5 160.5 185.5 210.5 235.5 260.5 260.5 112.5 137.5 137.5 162.5 187.5 187.5 212.5 237.5 262.5 92.9 102.9 112.9 122.9 132.9 142.9 152.9...
Page 125 Vacuum Release Valve with Restrictor 1000 2000 3000 4000 SJ3A6 Series Plug-in Type p. 127 p. 129 Connector Connection Cable Connection D-sub Connector D-sub Connector Flat Ribbon Cable Flat Ribbon Cable Serial Wiring: EX180 Serial Wiring: EX510 SJ3A6 Non Plug-in Type Individual Wiring Individual Wiring p.
Page 126 Vacuum Release Valve with Restrictor SJ3A6 Series Common Specifications Manifold Valve Specifications Valve construction 3-position 3-port valve with restrictor Fluid Release pressure port 1(P) 0.25 to 0.7 Operating –100 kPa to 0.7 ∗ pressure Vacuum pressure port 3/5(E) 0.25 to 0.7 ∗ range [MPa] Pilot X port Ambient and fluid temperatures [°C]...
Page 127 SJ3A6 Series Construction/Circuit Example 1000 2000 3000 4000 Construction Connector type Cable type Symbol: F1 Symbol: F1 PS port PS port Release pressure side filter Release pressure side filter !3 !2 !0 y t r q i e w u !1 !3 ( Shaded area) 2(B) 2(B)
Page 128 ® Plug-in Connector Type Vacuum Release Valve with Restrictor RoHS SJ3A6 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. VVacuum release valve manifold with restrictor SS3J3 Vacuum release valve...
Page 129 SJ3A6 Plug-in Connector Type Series Vacuum Release Valve with Restrictor 1000 2000 3000 How to Order Solenoid Valves (3-Position 3-Port with Restrictor) 4000 SJ3A6 Standard SJ3A6 C Z J With switch Individual wiring SJ3A6 ∗ [For plug-in mixed mounting] ∗1 Refer to pages 133 and 134 for the dedicated non plug-in individual wiring.
Page 130 ® RoHS Plug-in Cable Type Vacuum Release Valve with Restrictor SJ3A6 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. VVacuum release valve manifold with restrictor SS3J3 e r t...
Page 131 SJ3A6 Plug-in Cable Type Series Vacuum Release Valve with Restrictor 1000 2000 3000 How to Order Solenoid Valves (3-Position 3-Port with Restrictor) 4000 SJ3A6 Coil type Connector entry Light/surge voltage suppressor Standard : Dedicated for centralized wiring With power-saving circuit (Continuous duty type) With light/surge voltage suppressor Cable type ∗...
Page 132 SJ3A6 Series Dimensions SS3J3-V60 U/D/B Stations Switch ∗1 Height to manual override SmmD (When equipped with switch) Push type manual override: 40.3 S6BmD (Station 1) (Station n) Locking type manual override: 40.5 (18) Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side Applicable connector: 26-pin MIL type...
Page 133 1000 2000 3000 4000 SJ3A6...
Page 134 ® Non Plug-in Individual Wiring Vacuum Release Valve with Restrictor RoHS SJ3A6 Series An order cannot be placed with only the manifold part no. Be sure to order solenoid valves for mounting at How to Order the same time while referring to the ordering example. VIndividual wiring manifold SS3J3 w e r t...
Page 135 SJ3A6 Non Plug-in Individual Wiring Series Vacuum Release Valve with Restrictor 1000 2000 3000 How to Order Solenoid Valves (3-Position 3-Port with Restrictor) 4000 SJ3A6 Coil type For non plug-in only Rated voltage Common specification Standard 24 VDC Positive common 12 VDC Negative common With power-saving circuit...
Page 136 SJ3A6 Series Dimensions SS3J3-V60- U/D/B Stations ∗1 Height to manual override Push type manual override: 40.3 Locking type manual override: 40.5 (Station 1) (Station n) Light/surge voltage suppressor SOL.a: Red SOL.b: Green D side U side (DIN rail mounting hole pitch: 12.5) Manual override DIN rail holding screw 30.6...
Page 137 SJ3A6 Series Manifold Exploded View 1000 2000 3000 Connector Type/Individual Wiring 4000 Type 60S [Plug-in, EX180 Type V60P (Vacuum release integrated type (for output) valve with restrictor) manifold serial transmission U side ∗ Refer to page 90 for “How to Increase system] manifold Manifold Stations.”...
Page 138 SJ3A6 Series Cable Type Type V60LP (Vacuum release valve ∗ Refer to page 91 for “How to Increase Manifold Stations.” with restrictor) manifold U side Cable D side Component Parts: Plug-in (Cable Type) Description Part no. Note (Metric size) SJ3000-50-5AR-ll-N C6: With ø6 One-touch fitting (straight) External pilot X, PE port: Metric size ø4...
Page 139 SJ1000/2000/3000/4000 Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instructions. 1000 2000 For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” 3000 and the “Operation Manual” on the SMC website: https://www.smcworld.com 4000 Manual Override Switch Operation Valve with Switch...
Page 140 SJ1000/2000/3000/4000 Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Used as a 3-Port Valve Continuous Duty Caution...
Page 141 SJ1000/2000/3000/4000 Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to the back cover for safety instructions. 1000 2000 For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” 3000 and the “Operation Manual” on the SMC website: https://www.smcworld.com 4000 Countermeasure for Surge Voltage Intrusion Working Principle...
Page 142 SJ1000/2000/3000/4000 Series Specific Product Precautions 4 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Light Indication Manifold Mounting Caution...
Page 143 SJ1000/2000/3000/4000 Series Specific Product Precautions 5 Be sure to read this before handling the products. Refer to the back cover for safety instructions. 1000 2000 For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” 3000 and the “Operation Manual” on the SMC website: https://www.smcworld.com 4000 Fitting Replacement Caution...
Page 144 SJ1000/2000/3000/4000 Series Specific Product Precautions 6 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com One-touch Fittings Other Tube Brands Caution...
Page 145 SJ1000/2000/3000/4000 Series Specific Product Precautions 7 Be sure to read this before handling the products. Refer to the back cover for safety instructions. 1000 2000 For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” 3000 and the “Operation Manual” on the SMC website: https://www.smcworld.com 4000 How to Use Plug Connector Plug Connector Lead Wire Length...
Page 146 SJ1000/2000/3000/4000 Series Specific Product Precautions 8 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Connector (for Junction Common) Part Nos.
Page 147 SJ1000/2000/3000/4000 Series Specific Product Precautions 9 Be sure to read this before handling the products. Refer to the back cover for safety instructions. 1000 2000 For 3/4/5-port solenoid valve precautions, refer to the “Handling Precautions for SMC Products” 3000 and the “Operation Manual” on the SMC website: https://www.smcworld.com 4000 One-touch Fittings Caution...
Page 148 ∗ Number of pages has been increased from 112 to 120. ∗ Number of pages has been increased from 48 to 96. Edition E ∗ The SJ3000A and SJ4000 series have been added. ∗ A plug-in cable type manifold has been added. Edition C ∗...

This manual is also suitable for:

Sj2000 series Sj3000 series Sj4000 series Sj1 60t-c2 series Sj1 60t-c4 series Sj2 60-c2 series ... Show all

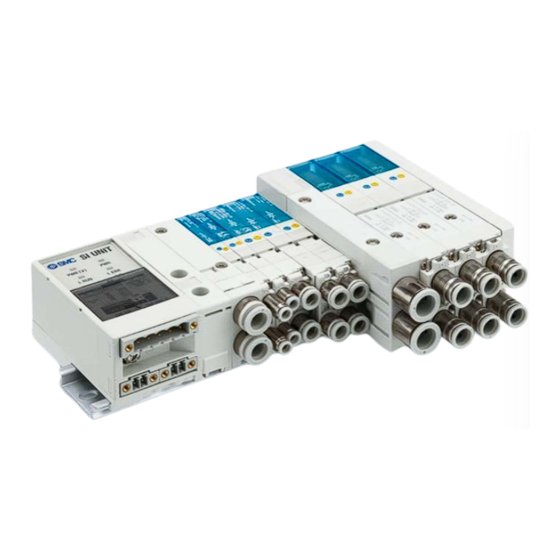

SMC Networks SJ3000A Manual
