SMC Networks SZ3000 Series Manual

5 port solenoid valve
Hide thumbs Also See for SZ3000 Series:

Advertisement

Quick Links

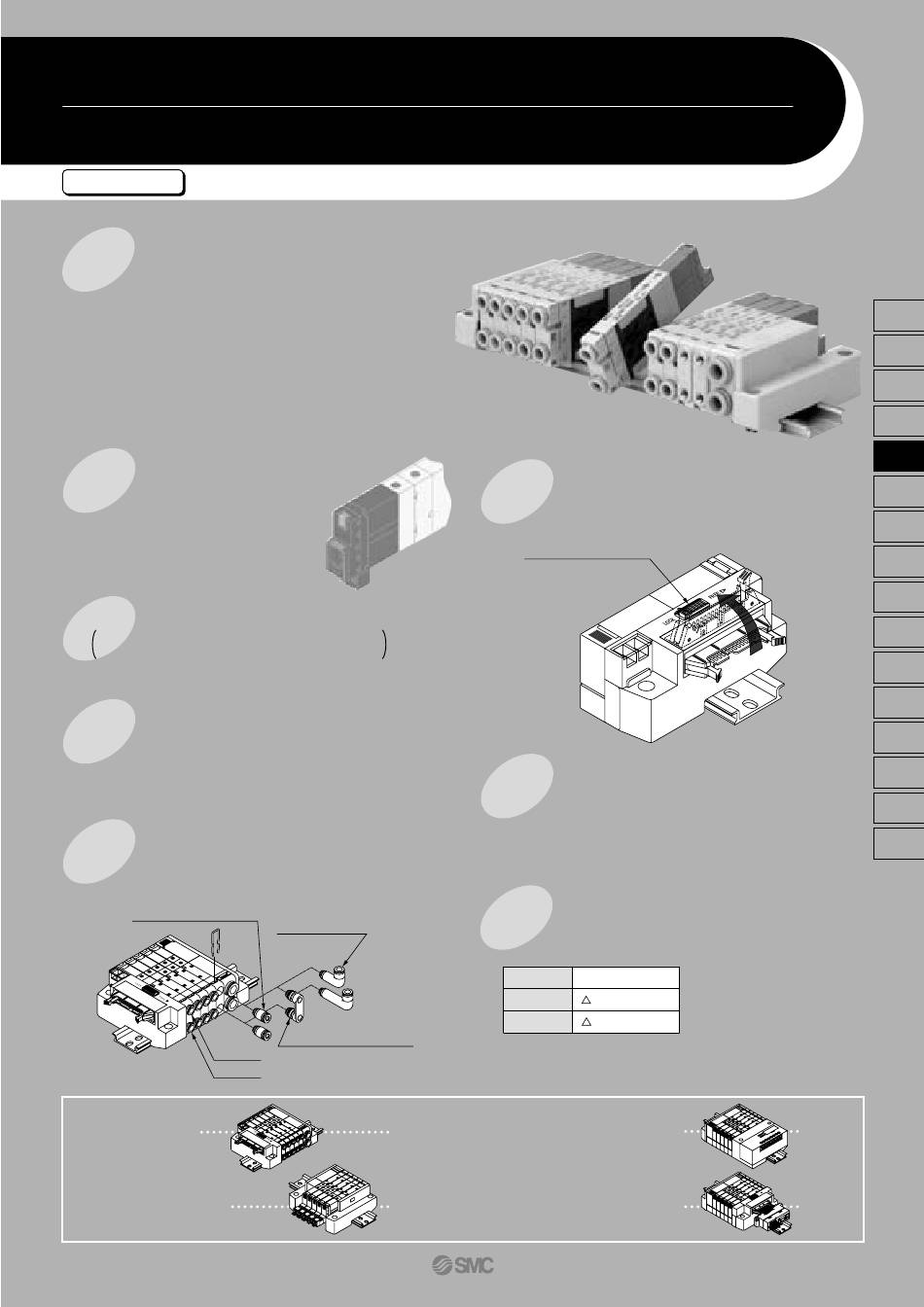

Rubber Seal
The plug-in cassette system
makes valve replacement easy.
A plug-in manifold has been created with a height of 43.5
mm (including DIN rail). Valve replacement can be
performed easily. Moreover, since spare terminates for
wiring (receptacle housings) are contained inside the
manifold, terminal changes (additions) can be performed
quickly and easily. (The number of additional stations is
limited by the manifold specifications. For details, refer to
page 571.)
Valves equipped with
switches
Adjustment and maintenance of
equipment can be performed with
greater safety, since the power to
each
valve
can
individually with built-in switches.
High speed response of 10 ms
SZ3000 double, 0.5 MPa
24 VDC, Without surge voltage suppressor
Low power consumption and a faster response time of 10
ms are obtained with a unique pilot valve construction.
Low power consumption: 0.6 W
Low power consumption enables direct operation by a
PLC. Cost savings are realized through the use of a
smaller power supply and the elimination of relay cards.
Easy attaching/detaching of the tubing
The interval between ports A and B is a wide 20.5 mm, allowing
easy changes of fittings and tubing.
C4/C6 One-touch fitting
Plug-in Type
Non Plug-in Type
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
5 Port Solenoid Valve
Series
Cassette Type Manifold
be
shut
off
(Current draw: 25 mA at 24 VDC)
C4/C6
One-touch fitting
(Elbow type)
M5 port block assembly
A port
B port
SZ3000
The connector entry direction can be
changed from top to side with a simple
operation.
Switch for locking a connector
High reliability and long service life
exceeding 50 million cycles or more
High reliability and long service life have been achieved with
guide ring construction which prevents eccentricity of the
main valve, and a return piston with increased return force.
(Single and double solenoid type)
Size and weight reduced by
eliminating the manifold base
Series
Height
Weight
P. 558
EX140/Serial transmission system
P. 577
EX510/Serial transmission system
SZ3000
31% reduction
(Compared with SX3000-45
with DIN rail manifold and 5
12% reduction
stations)
SJ
SY
SV
SYJ
SZ
VP4
S0700
VQ
VQ4
VQ5
VQC
VQZ
SQ
VFS
VFR
VQ7
P. 584
P. 588
B
PW
M
CO
0
1
6
7
14
15
557
