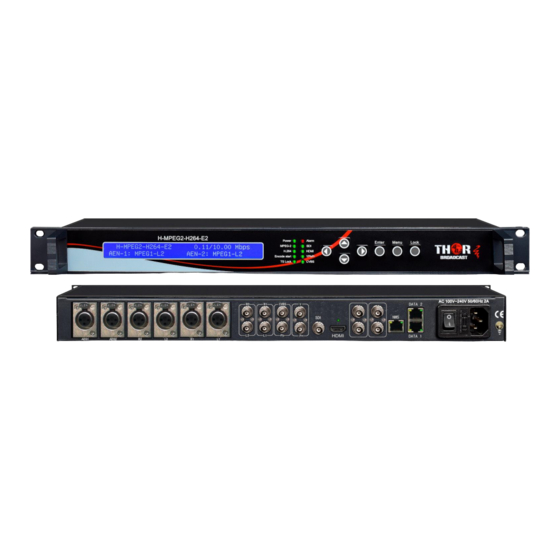

Thor Broadcast H-MPEG2-H264-E2 Quick Setup Manual

Hide thumbs Also See for H-MPEG2-H264-E2:

Download this manual

H-MPEG2-H264-E2

Step 1: CONNECT AND LOGIN

Connect the NMS port to your PC using an ethernet cable

Open web browser and go to http://192.168.0.136

Step 2: CONFIGURE INPUT

Setup for SDI

Click "Apply"

https://thorbroadcast.com

Select "Encode"

from the main menu

Select "SDI"

Input Lock shows

Green and bitrate

info is displayed

800-521-8467

SDI

HDMI

NMS

IMPORTANT:

Have your video source connected

before proceeding with configuration.

Lights for SDI / HDMI on front panel will

indicate the link is established.

Setup for HDMI

Click "Apply"

sales@thorfiber.com

Quick Setup Guide

Power Cable

Select "HDMI"

Input Lock shows

Green and bitrate

info is displayed

Need help?

Do you have a question about the H-MPEG2-H264-E2 and is the answer not in the manual?

Page 1 800-521-8467 sales@thorfiber.com H-MPEG2-H264-E2 Quick Setup Guide Step 1: CONNECT AND LOGIN HDMI Power Cable Connect the NMS port to your PC using an ethernet cable Open web browser and go to http://192.168.0.136 Login/Password: admin/admin Step 2: CONFIGURE INPUT IMPORTANT: Have your video source connected before proceeding with configuration.
Page 2 Step 3: CONFIGURE OUTPUT Select “TS Configuration” from the main menu Click “Parse program” Detected Programs will appear in left pane Programs assigned to output will appear in right pane Check the box to Click “ ” to assign select program selected program to Output Step 4: STREAMING...
Page 3 Step 5: SAVE CONFIGURATION Select “Configuration” from the main menu From the “Save” tab Click “Save config” Scan for more info: Confirmation message will appear briefly until saving is complete H-MPEG2-H264-E2 Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
