SD-998C-D3Q / SD-998C-D3AQ
Surface-Mount Electric Rim Strikes
Model #
SD-998C-D3Q
SD-998C-D3AQ
Features:
12/24 VDC Operating voltage
Non-polarized connection
Horizontal adjustment
Accommodates up to
Reversible non-handed design fits either
right-hand or left-handed doors
Surface-mount on metal or wood frames
Works with standard rim-type exit devices
including SECO-LARM SD-962AR-36A
and SD-962AR-36G
For Indoor Use Only
Housing Thickness
/
" Pullman latch
3
4
Manual
SD-998C-D3AQ shown
/
" (19mm)
3
4
/
" (13mm)
1
2
Static strength – 1,500-lb (6673N)
Tested for 250,000 cycles (UL Tested)
Low current draw: 540mA@12VDC,
270mA@ 24VDC
Field-selectable for fail-safe or fail-secure operation
The SD-998C series is intended to be used with UL
Listed Exit Hardware
The SD-998C series shall not impair the intended
operation of an emergency unit
The SD-998C series shall not impair the operation
of panic hardware mounted on the door
Latch Throw
/
" (19mm)
3
4
/
" (13mm)
1
2
43RG
Advertisement
Table of Contents
Related Manuals for SECO-LARM SD-998C-D3Q
Summary of Contents for SECO-LARM SD-998C-D3Q

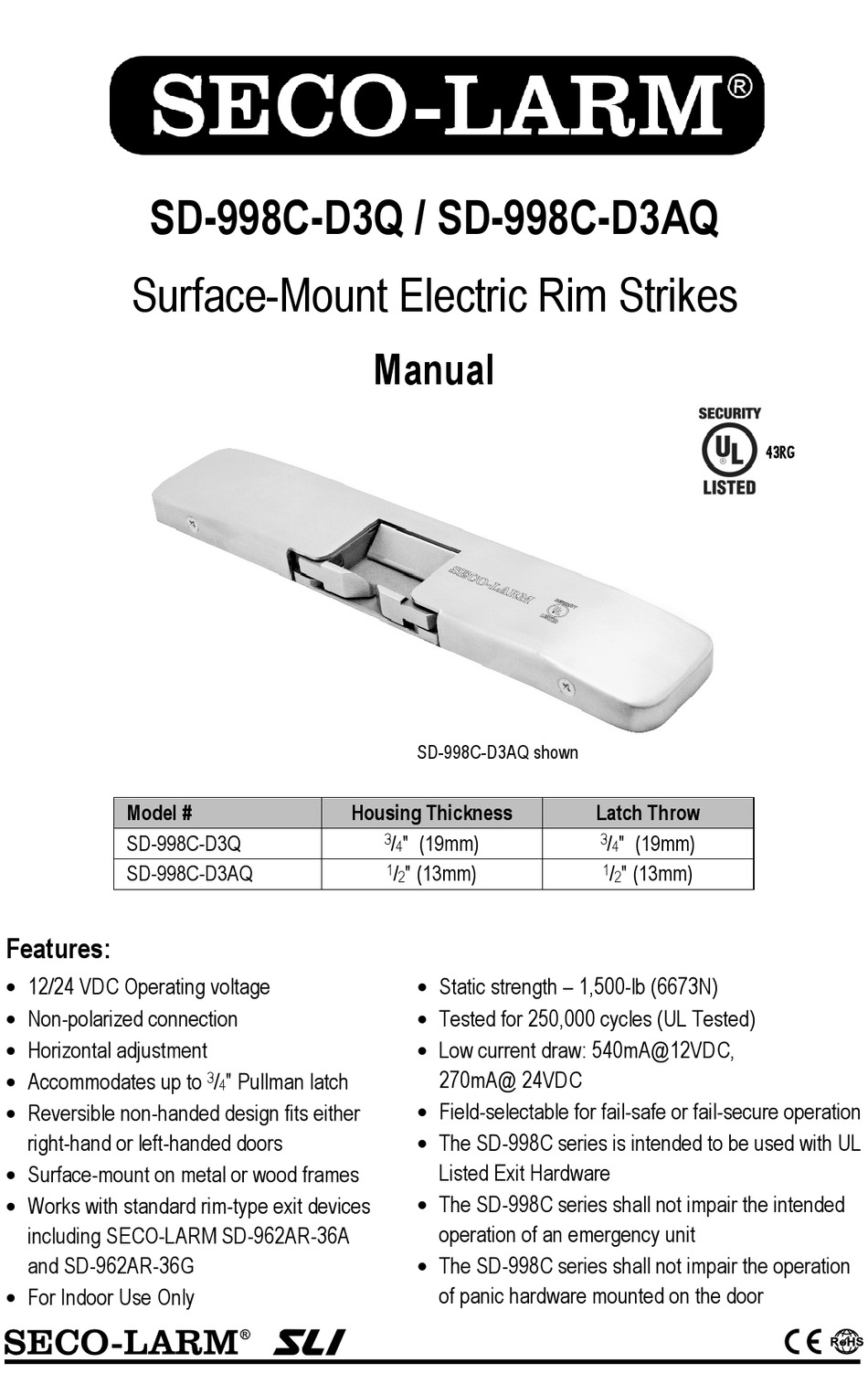

- Page 1 SD-998C-D3Q / SD-998C-D3AQ Surface-Mount Electric Rim Strikes Manual 43RG SD-998C-D3AQ shown Model # Housing Thickness Latch Throw SD-998C-D3Q " (19mm) " (19mm) SD-998C-D3AQ " (13mm) " (13mm) Features: 12/24 VDC Operating voltage Static strength – 1,500-lb (6673N) Non-polarized connection ...
